Home > Products > Copper Nickel Products > C27000 Brass Hexagonal Bar

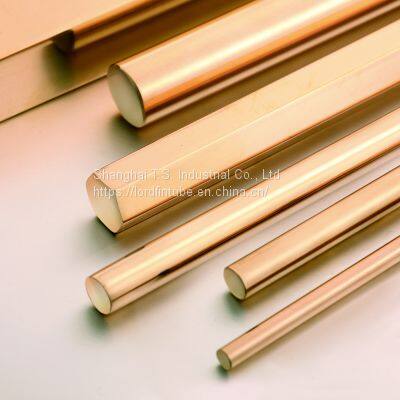

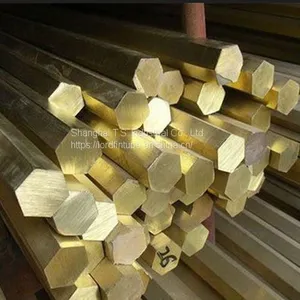

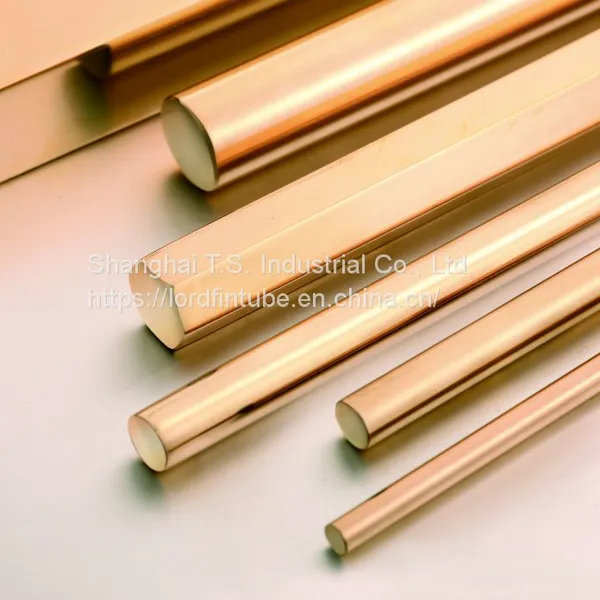

C27000 Brass Hexagonal Bar
- shanghai
- T/T L/C
- 20 days
You May Like
Product Details
Brand Name | TS | Place of Origin | China | |
Model Number | 135 | Shape | Hexagonal | |
Diameter | 5mm-60mm | Length | 1m-12m, or as required | |
Application | Oil and gas pipelines, Chemical Industry, Power plants, Pulp and paper industry, Energy industry, Dairy and food processing | Alloy Or Not | Is Alloy | |
Grade | C27000 | Cu (Min) | 63 |
Product Description
Depending on the type of alloying elements contained in brass, brass is divided into two types: ordinary brass and special brass. The brass for pressure processing is called deformed brass. Brass is a copper alloy with zinc as the main added element, which has a beautiful yellow color and is collectively called brass. Copper-zinc binary alloy is called common brass or simple brass. Brass with more than three elements is called special brass or complex brass. Brass alloys containing less than 36% zinc are composed of solid solution and have good cold working properties, commonly known as seven-three brass. Brass alloys with zinc content between 36 and 42% consist of solid solutions, the most commonly used being brass with 40% zinc. In order to improve the performance of ordinary brass, often add other elements, such as aluminum, nickel, manganese, tin, silicon, lead, etc. Aluminum can improve the strength, hardness, and corrosion resistance of brass, but make the plasticity reduced, suitable for the sea vessel condenser tube and other corrosion-resistant parts. Tin can improve the strength and corrosion resistance of brass to seawater, so it is called naval brass, used for ships' thermal equipment and propellers, etc. Lead improves the cutting properties of brass; this machinable brass is often used for watch parts. Brass castings are often used to make valves and pipe fittings, etc.
C27000 brass is a brass formulated for primarily formed forgings. the excellent hot working properties of C27000 make it a classic alloy for forgings. With its excellent properties, this alloy can be forged and machined into complex, state-of-the-art parts. c27000 can also be easily plated into a variety of finishes.
The C2700/C27000 can be used as a variety of deeper, deeper bending stress parts such as rivets, pads, nuts, conduits, barometers, sieves, screens, radiators, radiators, radiators, radiators.
Specifications of C27000 Brass Hexagonal Bar
Specifications: ASTM B36/ASME SB36
Standards: EN, DIN, JIS, ASTM, BS, ASME, AISI
Material: C27000 Brass
Form: Hex Bar
Sizes: 5mm-60mm
Length: 1m-12m, or as required
Surface: Polished, NO.4 Finish, Bright Annealed, MF
Payment Terms: T/T, L/C
Delivery Time: As per quantity required
Chemical Composition (%) of C27000 Brass Hexagonal Bar
Material | Cu | Fe, max | Pb, max | Zn |
C27000 | 63.00-68.50 | 0.07 | 0.09 | Rest |
Mechanical Properties of C27000 Brass Hexagonal Bar
Tensile Strength, ksi [MPa], min | Yield Strength, ksi [MPa], min | Elongation (%), min | Shear Strength, ksi [MPa] |
48 [331] | 116 [110] | 65 | 34 [234] |
Physical Properties of C27000 Brass Hexagonal Bar
Density | Thermal Expansion | Thermal Conductivity | Poisson’s Ratio | Elastic Modulus |
8.1 g/cm³ | 0 µm/m-K | 120 W/m-K | 0.31 | 110 GPa |
Equivalent Grades of C27000 Brass Hexagonal Bar
ASTM | BS | EN | JIS | DIN | ISO | IS |
C27000 | CZ107 | CW507L | H3250(92) C2700 BE | 2.0335 | CuZn36 | IS 2704 CuZn35 |
Features of C27000 Brass Hexagonal Bar
- High flexibility
- Excellent cold workability
- Good hot formability
- High durability
- Good corrosion resistance
Application of C27000 Brass Hexagonal Bar
- Oil and gas pipelines
- Chemical Industry
- Power plants
- Pulp and paper industry
- Energy industry
- Dairy and food processing
