Home > Electrical & Electronics > Electric Motor > DC Motor > Quanly BLDC Electric Sensorless IP68 Waterproof 6000W Inrunner Brushless Motor for Lift Efoil Hydrofoils E-Bike E-Waterbike E-Jetboard With Propeller

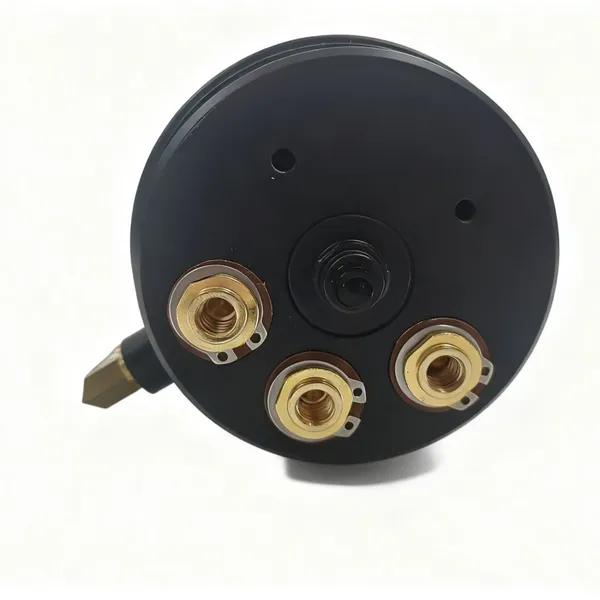

Quanly BLDC Electric Sensorless IP68 Waterproof 6000W Inrunner Brushless Motor for Lift Efoil Hydrofoils E-Bike E-Waterbike E-Jetboard With Propeller
US$ 650.58 - 1150.58
MOQ: 50 Units
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
21 days
Related Products
-
Hb-300A Waterproof Programmable ESC Marine Brushless DC Motor Speed Controller for BoatUS$ 315 - 415MOQ: 1 Unit -
Waterproof Brushless dc MotorUS$ 55 - 58MOQ: 1 Piece
-
12v Waterproof Brushless dc MotorUS$ 2 - 6MOQ: 1 Set
-
CE Appoved 48v 1000w Waterproof Brushless dc MotorUS$ 50 - 61MOQ: 1 Piece
-
25mm 40v Waterproof Brushless DC Motor for Electric BicycleUS$ 1 - 100MOQ: 10 Pieces
Certification
CCC
Description

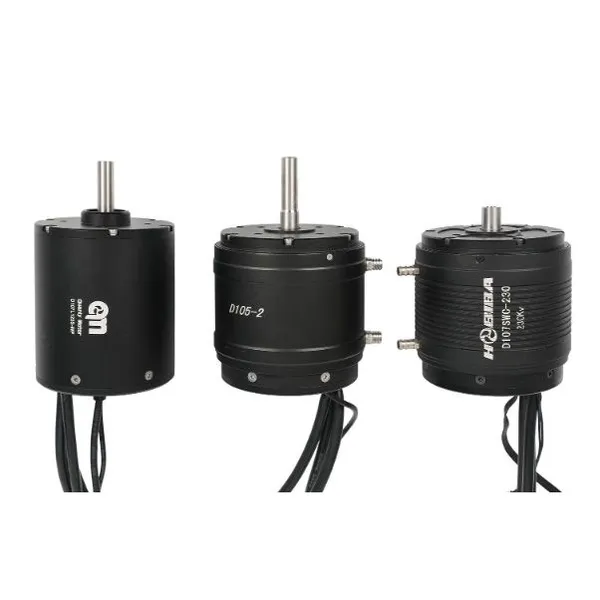

Quanly In-runner brushless motor series,they are developped for boat,the motor diameter from 65mm to 155mm ,the length from 100mm to 220mm,the power from 1KW to 50KW,including water-proof and liquid-cooling version,can work on encode, hall sensor and sensorless mode,the motor case use light,high strength 7075 alloy with blaster and black hard anodize,can prevent from Oxidation and corrosion,Quanly motor use high quality ball bearing and the rotor with good dynamic balance,they are very quiet and low vibration, the stator lamination,magnets and copper wires are used top quality material available in marketing, the motor can work with high power density,high RPM , high efficiency.
Can be customized for
- Sensor or sensorless
- Winding Current
- Shaft Options
- Cable and Connector
- Kv Ratings
- Mounting Options
- Encoder or Non

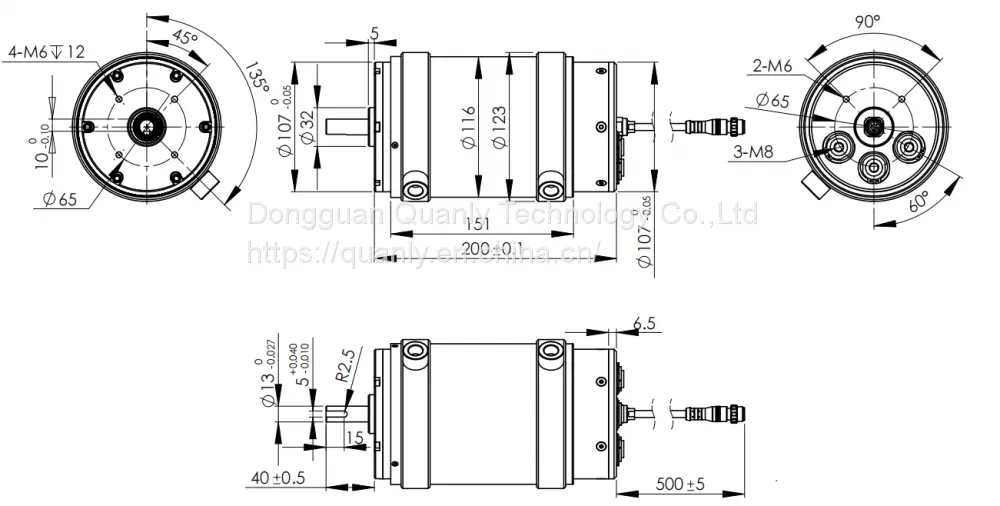

Drawing Dimension
Product Parameter
| Variants |
| Variants | D107L200-135 | D107L200-112 | D107L200-97 | D107L200-84 | D107L200-68 | D107L200-56 |
| Winding Turn & Connection | 2.5T | 3T | 3.5T | 4T | 5T | 6T |
| Voltage Range(LiPo) | 10-16S | 10-20S | 12-22S | 12-26S | 16-32S | 18-38S |
| Max Spin Speed(RPM) | 9,070 | 9,408 | 9,013 | 9,172 | 9,139 | 8,937 |
| Speed Constance kV(RPM/V) | 135 | 112 | 97 | 84 | 68 | 56 |
| Torque Constance Kt(N*M/A) | 0.0801 | 0.0962 | 0.1123 | 0.1396 | 0.1675 | 0.1982 |
| Current @8.4V without Loading(A) | 6.5 | 6.0 | 5.4 | 4.2 | 3.5 | 3.0 |
| Max Power (KW) | 38.9 | 38.8 | 38.6 | 38 | 38 | 38.2 |
| Peak Current (A) | 1,700 | 1,400 | 1,200 | 990 | 820 | 700 |
| Max Efficiency | 92.00% | >92% | 91.00% | 91.00% | 91.00% | 91.00% |
| Max Torque@60%(N*M) | 64.0 | 64.0 | 65.5 | 65.5 | 65.0 | 65.0 |
| Continuous Working Current(A) | 490 | 410 | 352 | 285 | 235 | 200 |
| Weight (kg) | 7.65 | |||||
| Construction | 12N/10P | |||||
| Cooling Solution | Water cooling | |||||
| Max Working Temperature | 120ºC | |||||
| Dimension | D118*L200 | |||||
| Insulation Voltage & Leak Current | AC500V/10MA/3S | |||||
| Working Life | 8,000H | |||||

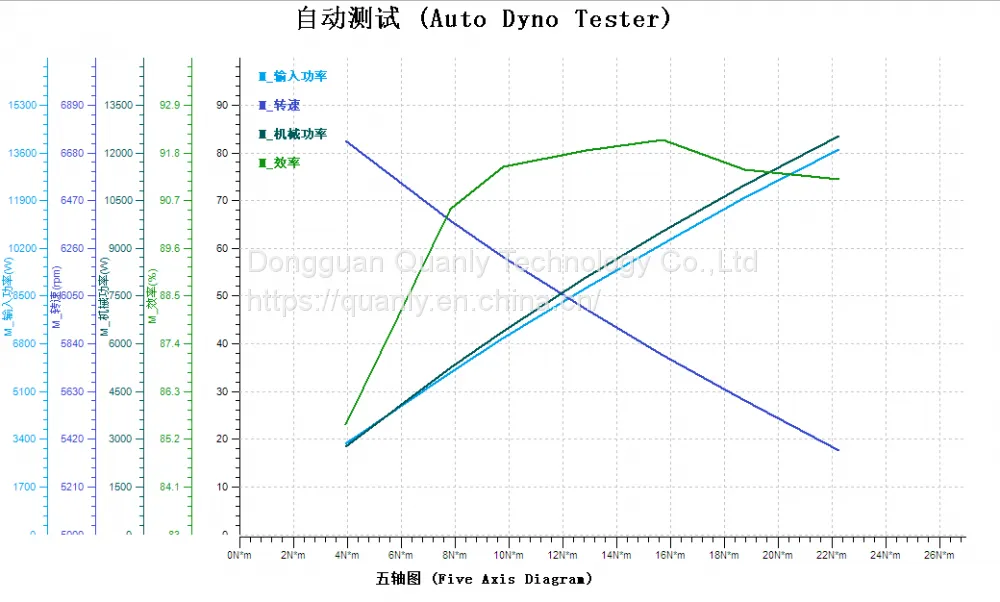

Auto Dyno Tester

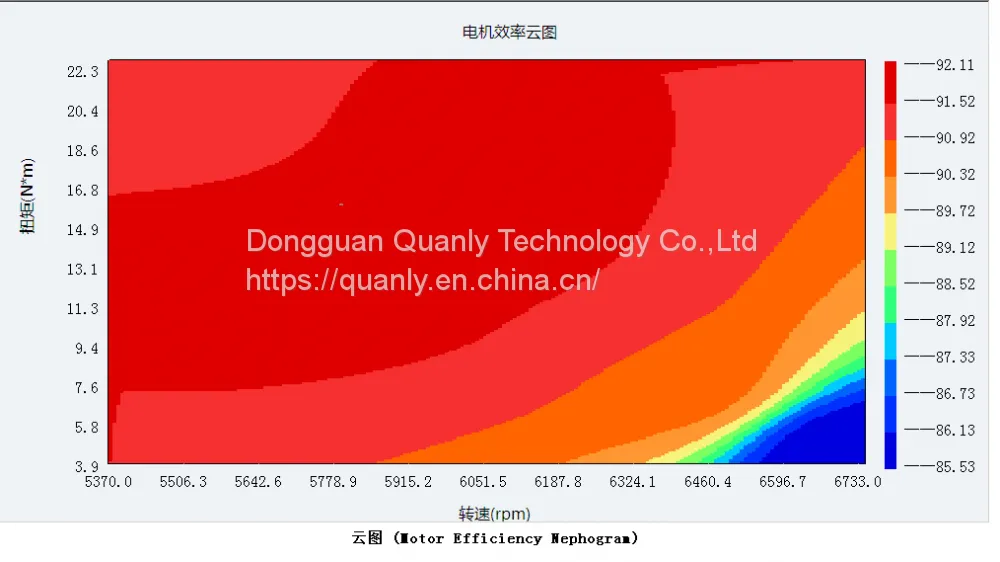

Motor Effeciecy Nephogram
Auto Test Report
| Item No. | C_Voltage(V) | C_Current(A) | C_Input Power(W) | C_Power Factor | C_Efficiency(%) | M_Voltage(V) | M_Current(A) | M_Input Power(W) | M_CurrentA(A) | M_CurrentB(A) | M_UthdA(%) | M_UthdB(%) | M_IthdA(%) | M_IthdB(%) | M_Power Factor | M_Frequency(Hz) | M_Efficiency(%) | M_Speed(rpm) | M_Torque(N*m) | M_Output Power(W) | Synthesis Efficiency (%) |
| 0 | 51.6 | 63.41 | 3267.01 | 0.9986 | 99.42057 | 38.1 | 52.64 | 3248.08 | 52.81 | 52.47 | 8.73 | 8.5 | 27.22 | 26.27 | 0.9351 | 562.87 | 85.53025 | 6733 | 3.939996 | 2778.091 | 85.034668 |
| 1 | 51.1 | 114.92 | 5870.05 | 0.9995 | 98.62489 | 37.28 | 97.34 | 5789.33 | 97.1 | 97.58 | 13.57 | 14.04 | 25.13 | 24.48 | 0.921 | 530 | 90.50789 | 6382 | 7.839995 | 5239.8 | 89.263306 |
| 2 | 50.9 | 140.04 | 7123.75 | 0.9995 | 98.18986 | 36.93 | 119.77 | 6994.8 | 119.4 | 120.13 | 17.9 | 17.85 | 25.35 | 24.52 | 0.913 | 522.4 | 91.4762 | 6222 | 9.819995 | 6398.577 | 89.820343 |
| 3 | 50.54 | 178.64 | 9023.87 | 0.9996 | 97.4768 | 36.42 | 154.76 | 8796.18 | 154.2 | 155.31 | 7.8 | 6.36 | 7.3 | 7.14 | 0.901 | 521.3 | 91.86774 | 5991 | 12.88 | 8080.852 | 89.549736 |
| 4 | 50.24 | 213.2 | 10705.3 | 0.9996 | 96.80056 | 36.01 | 186.85 | 10362.79 | 186.11 | 187.59 | 10.14 | 10.4 | 12.7 | 5.55 | 0.8891 | 518.67 | 92.11356 | 5791 | 15.74 | 9545.535 | 89.166443 |
| 5 | 49.89 | 251.24 | 12528.66 | 0.9996 | 95.88775 | 35.58 | 222.8 | 12013.45 | 221.82 | 223.77 | 16.25 | 21.16 | 14.96 | 12.13 | 0.875 | 540.46 | 91.41529 | 5590 | 18.76 | 10982.13 | 87.656067 |
| 6 | 49.5 | 292.34 | 14463.8 | 0.9995 | 94.98458 | 35.1 | 262.74 | 13738.38 | 261.78 | 263.69 | 173.23 | 183.48 | 99.47 | 93.89 | 0.8599 | 507.99 | 91.20024 | 5370 | 22.28 | 12529.44 | 86.626167 |
