FujiCom
Category: low profile crystal units

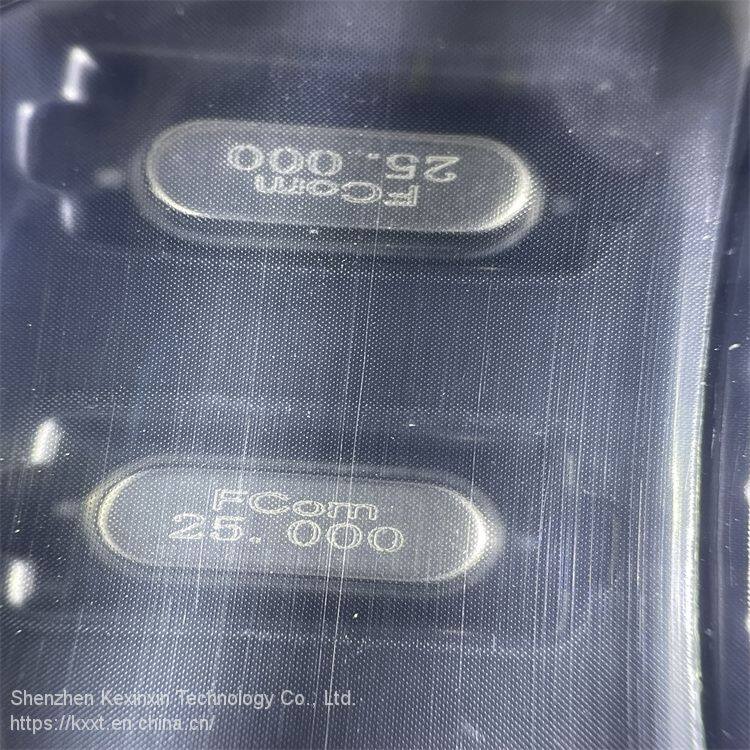

HC-49/US
Features Low profile type H= 3.5mm
Resistance weld seal
Pb free, RoHS compliant
Specification
Item hc-49/us
Frequency: 3.579-85.0mhz
Frequency tolerance: ±15ppm, ±30ppm, ±50ppm at 25°C
Osillation mode: 3.579-27.0mhz: Fundamental AT cut
27.001-40.0mhz: Fundamental BT cut
24.576-85.0mhz: 3rd overtone At cut
Temerature tolerance : ±30ppm, ±50ppm ( -20°C-+70°C)
Equivalent series resistance: 150Ω max.
Shunt capacitance: 7pF max.
Load capacitance: 12pF(Standard), 16pF, 18pF, 20pF
Drive: level: 10-100μW
Aging F/F: ±5ppm max. (25±3°C) (First year)
Dimensions(mm)
Cap transverse wide: 11.5max(outter) 10.3max(Inner)
Cap portrait wide: 4.65max(outter) 3.8max(Inner)
Height: 13.0±1.0
Factory Pack Quantity: 1000
