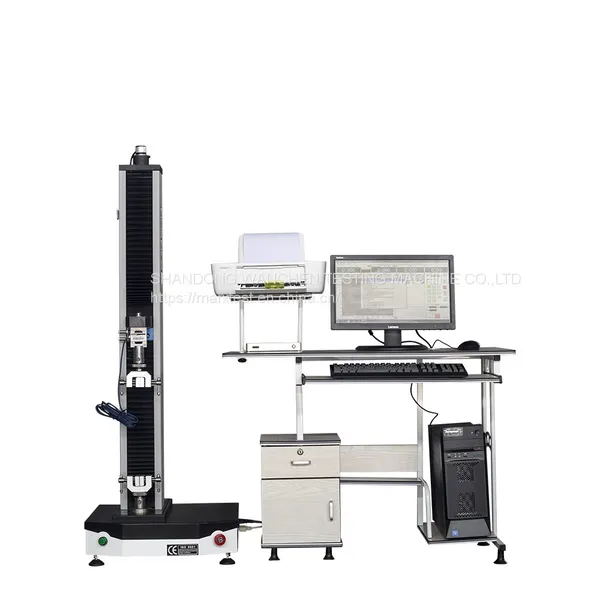

5KN Computerized Single Column Electronic Universal Testing Machine With Copper Foil Tensile Fixture

1.Application

Microcomputer-controlled universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.

2.Features

1) Computer + Software control and display 6 kinds test curves:

Force-displacement, force-deformation, stress-displacement,

 stress-deformation,force-time,displacement-time

2) Can be installed extensometer to test deformation of rubber or metal material

3) Can do high temperature test by high temperature oven and furnace

4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures

5) Can be customized height, width, and follow any test standard or customer request

6) Also have Digital Display Type.

3.Technical Parameters

Model: ETM-5

Max. load: 5KN

Structure : Single column

Control method: Computer control

Load accuracy: Class 1 （class 0.5 optional）

Load range: 1%-100% FS  (0.4%-100% FS optional)

Deformation measurement range: 0.2%-100%

Displacement Resolution: 0.01mm

Test speed: 0.05-1000mm/min

Crosshead travel space(mm): 1100

Tensile space(mm): 900

Power supply: AC220V±10%，50Hz
