Automatic Surface Contour Measuring Tool/ Machine for Roughness and Contour Measurements

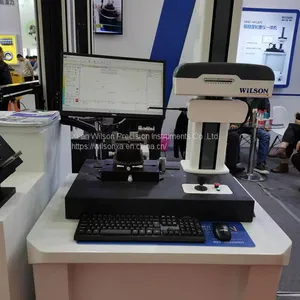

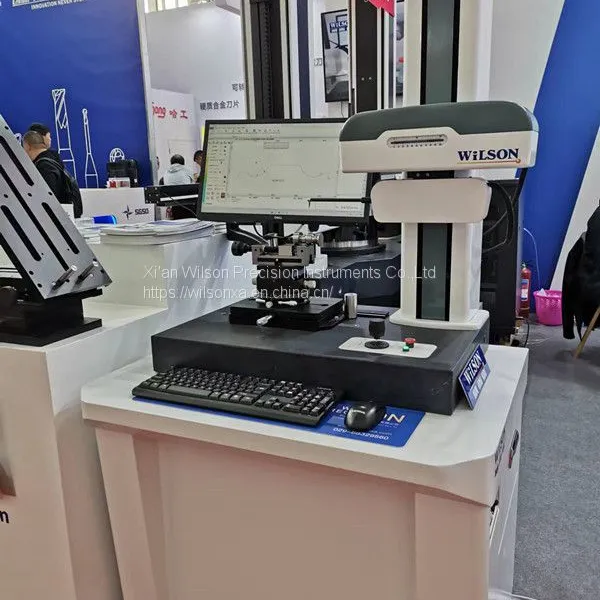

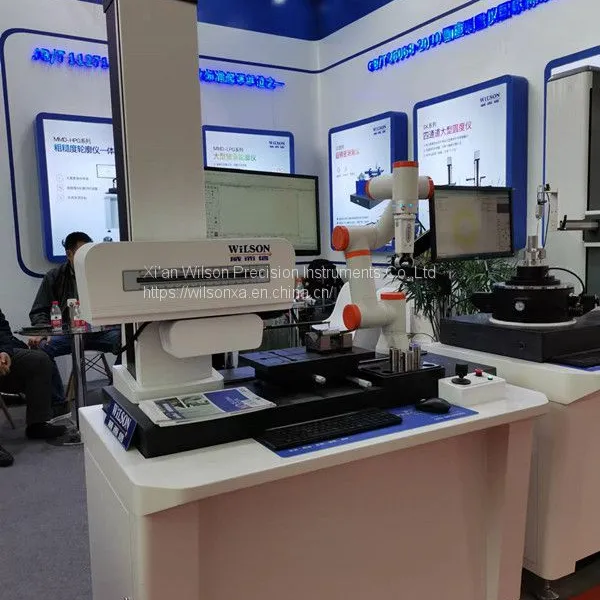

Automatic surface contour measuring tool/ machine for roughness and contour measurements

Wilson, the ranking contour and roundness measuring machine manufacturer and supplier in China.

The contour and surface measuring machines from Wilson offer different, combinable sensors for roughness measurements, contour measurements or both. The high precision linear drive makes these machines highly efficient and low-maintenance.

Wilson form measuring solutions are ideal for accurately assessing complex geometry. No matter you're measuring form shape, surface roughness, or roundness and cylindricity, there's a suitable solution for your practical application.

To make the assessment of once-difficult features easier than ever, select Contour models are capable of continuous top-bottom measurement. With simplified CNC capabilities and sophisticated functions to alleviate operator workload, Contour measuring systems are optimized for all contour measurement operations — which means measurement can be fast, accurate and simple.

Main parameters:

X axis(horizontal guide rail): 100-300 mm

Z1 axis(sensor): ±30 mm

Z axis (column): 400-500 mm

Special models can be customized

Main Functions:

1)Contour Measurement Function

Point: point, midpoint, intersection point, highest point, lowest point

Line: straight line, cut line, vertical line, parallel line, flat line

Circle: round, ellipse, cut circular

Angle: angle, horizontal angle, vertical angle

Position tolerance: straightness, convexity, contour, vertical, parallelism

Auxiliary generation: including auxiliary points, auxiliary lines, auxiliary circles

2)Roughness Analysis

Ra,Rq,Rz(Ry),Rz(DIN),R3z,Rz(jis),Rp,Rv,Rt,Rsk,Rsm,Rc,Rpm,Rku,Rdq,Roc,Mr1,Mr2,Rpk,Rvk,Rk,Rdc,A1,A2,R,Rx,AR,Rcp,Rmax,Rz-ISO

3)Waviness Analysis

wt,wa,wp,wv,wq,wc,wku,wsk,w,wx,wz,wsm,wdc,wte,wmr,Aw,c(wmr)wmr(c),wdq

Main features:

● The first domestic technology of autonomous intellectual property rights: using grating sensors to meet the measurement of roughness and contour size at the same time

● Use the interference to scan the grid ruler, which can reach 1Nm, which can meet the super high precision measurement

● Ultra -high resolution sensor can meet the measurement of roughness and contour dimensions at the same time. No need to change the sensor during the measurement process

● A large number of processes and high precision are compatible, which can meet the integrated measurement of irregular surface roughness and size such as arc surface, column surface, free curved surface

● The unique roughness evaluation algorithm and position compensation method, effective correction and compensation surface measurement is the measurement error of non -plane, and effectively guarantee the roughness of the curved surface, the roughness of the arc workpiece as high accuracy and high accuracy as the plane roughness.

● No need to modify mathematical methods and close to zero friction coefficient rails, which can maintain a high -precision measurement benchmark for a long time. The accuracy is consistent.

● Custom template, batch measurement, automatic marking
