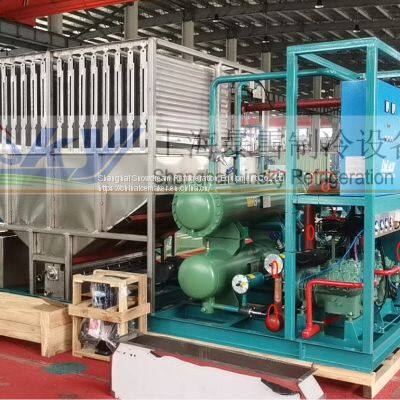

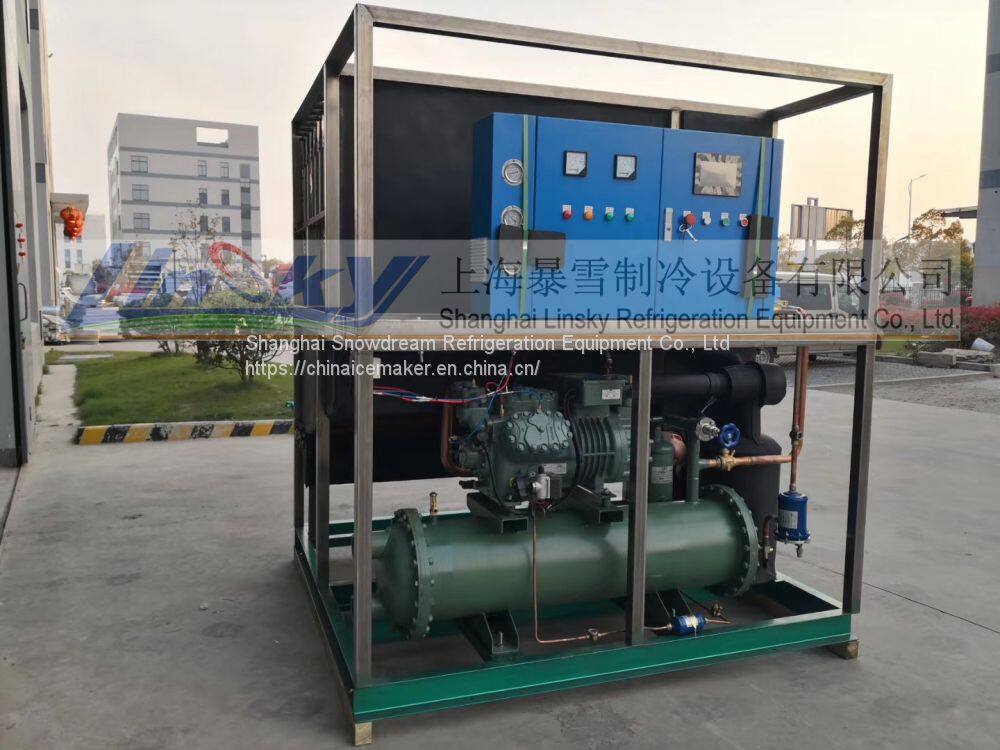

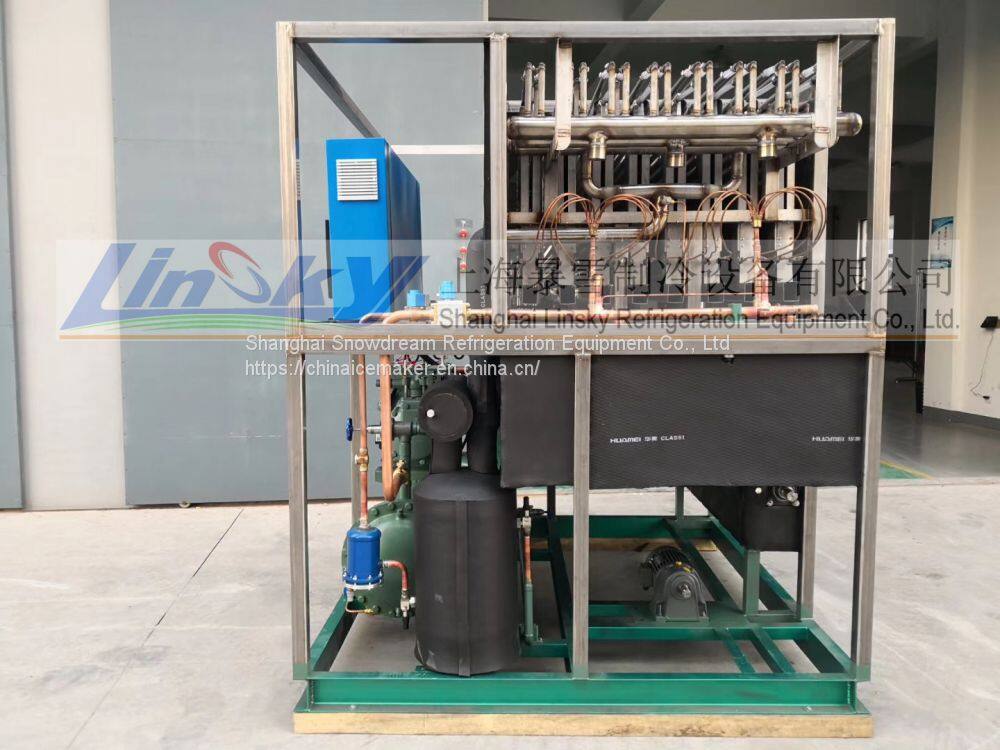

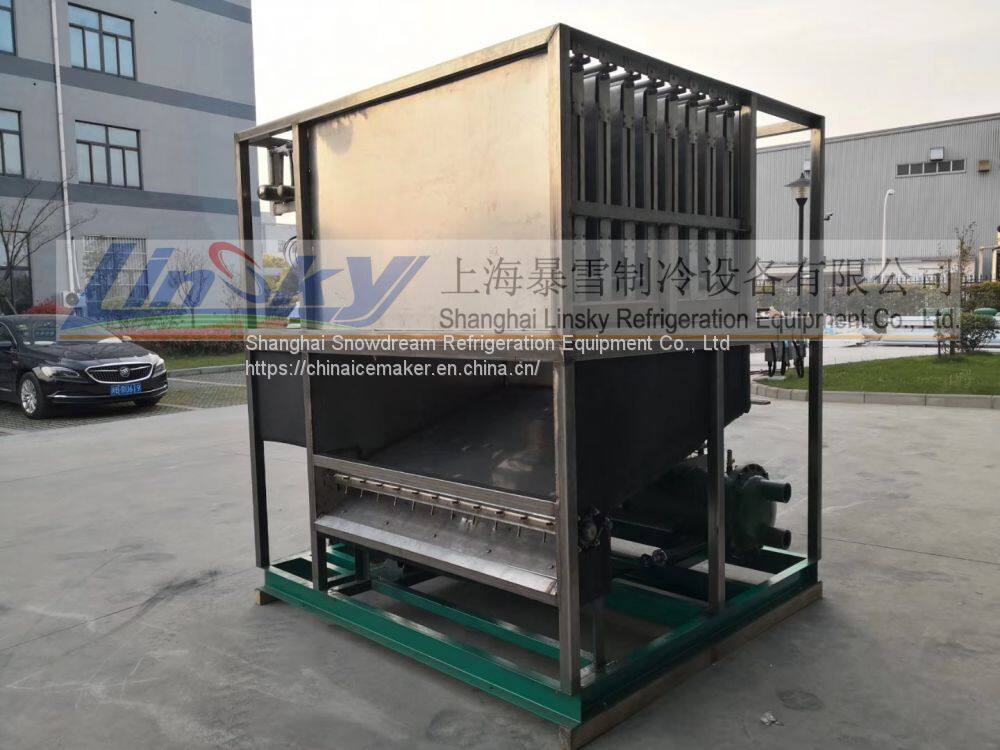

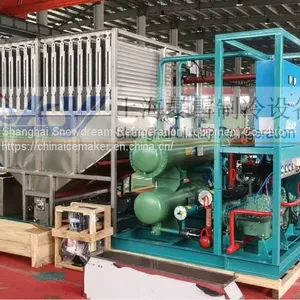

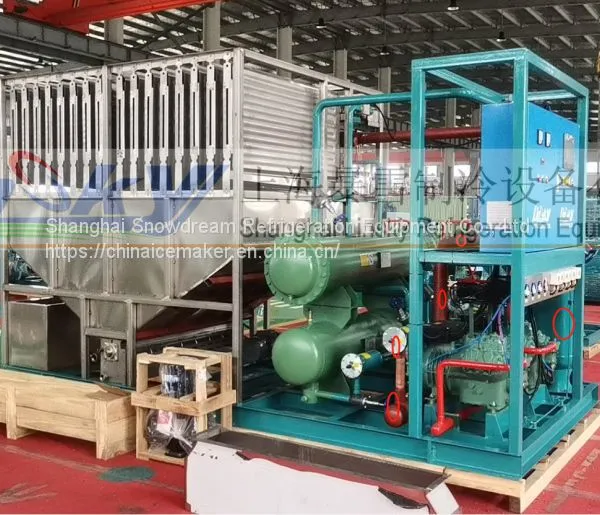

10Ton/24hr Plate Ice Machine

Linsky Plate ice machine features:

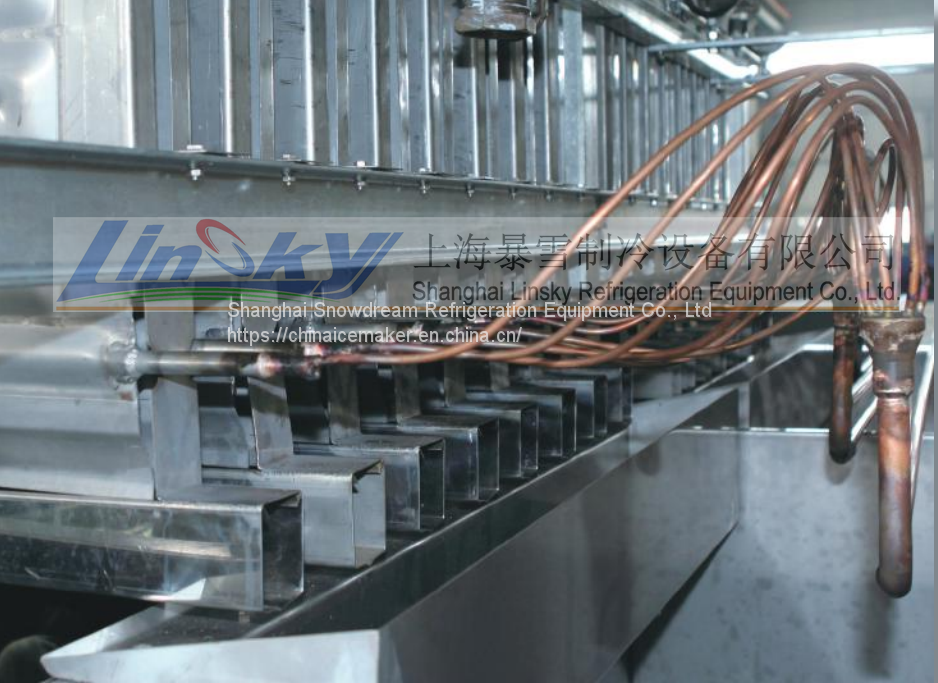

● Evaporator with special processing technology: Linsky plate ice evaporator adopts double-sided stainless steel 304 material and international advanced welding technology, which is firm and not easy to deform, durable and nice-looking, and conforms with the sanitary requirements as well.

● Efficient ice doffing mode: It's unnecessary to introduce additional heat energy since the reversal hot Freon gas produces by plate ice machine itself is fed into the evaporator, thus it just take less than 120 seconds for the whole ice doffing process.

● Excellent water circulation system: Some water is transported from the water tank to sprinkler, and the rest returns to the water tank and waits for the next water cycle.

● Easy operation: Stable capacity, PLC program control, only need to select the capacity, other procedures will be automatically finished under PLC program control, no need special human to monitor.

● Energy saving and high efficiency: Linsky plate ice machine has only 60KWH per ton for power consumption, compared with 110KWH power consumption per ton by mechanical ice dropping in the current market, Linsky energy-saving rate reach more than 30% and own great economic value.

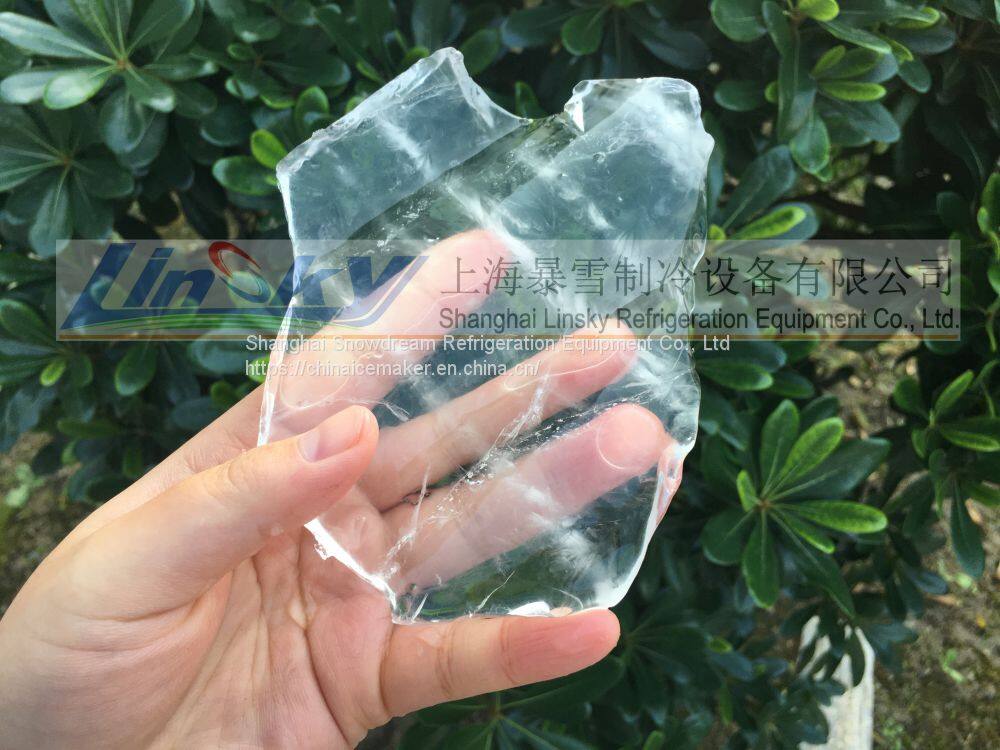

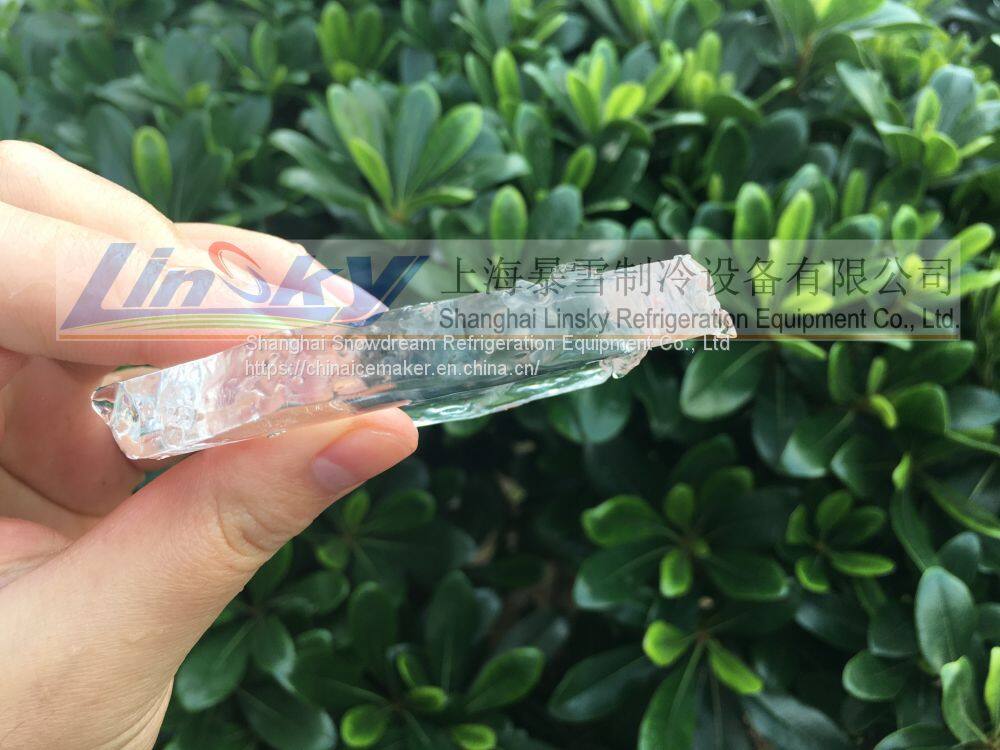

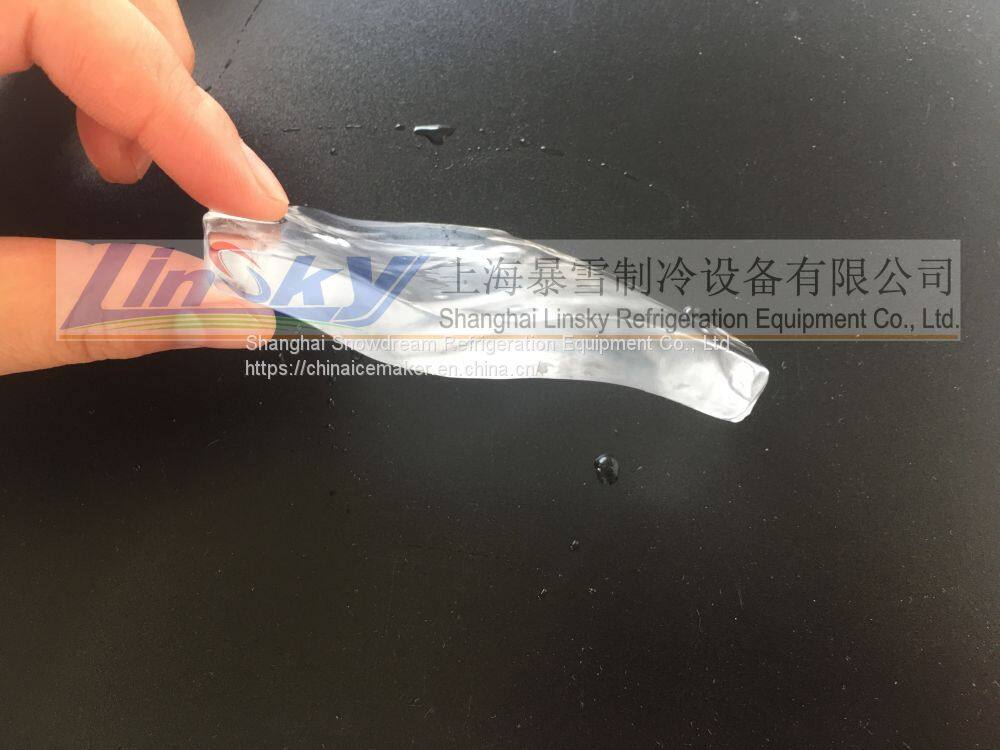

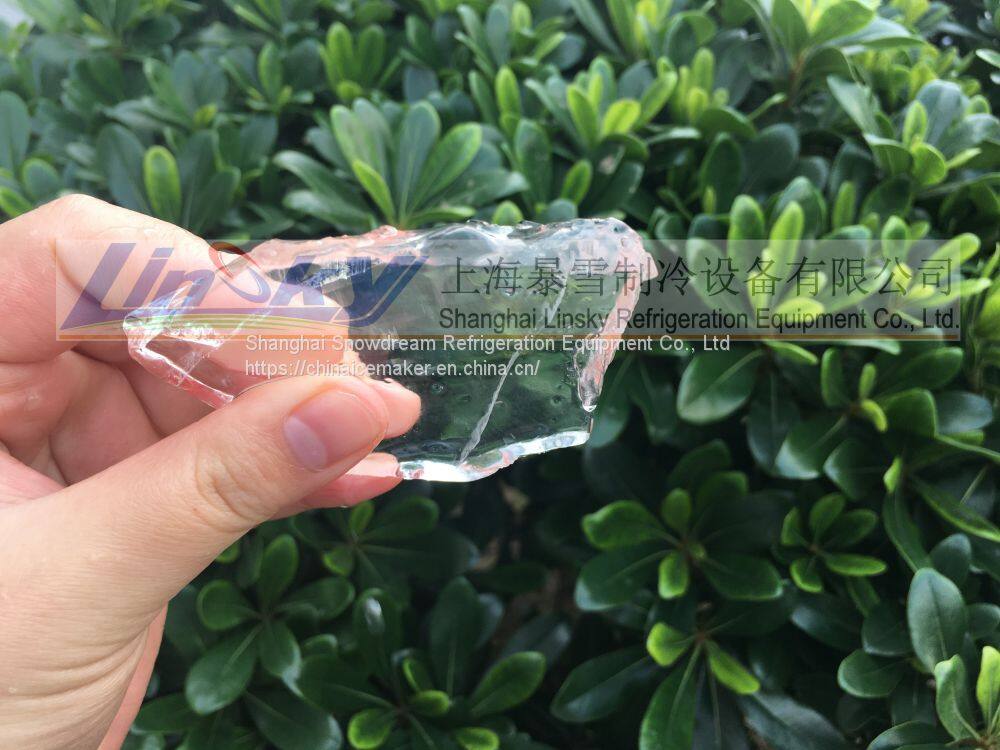

Linsky plate ice is a type of irregular sheet ice with about 40mmx40mm~80mmx80mm in size, and 10mm~15mm in thickness. The thickness can be adjusted according to ice-making time, maximum thickness is 30mm. It is a kind of thick and transparent ice which has good air permeability and long shelf life.

Plate ice is generally applicable to ice storage system, concrete mixing plants, chemical plants, mine cooling, vegetable preservation, fishing boat aquatic product insulation, etc.
