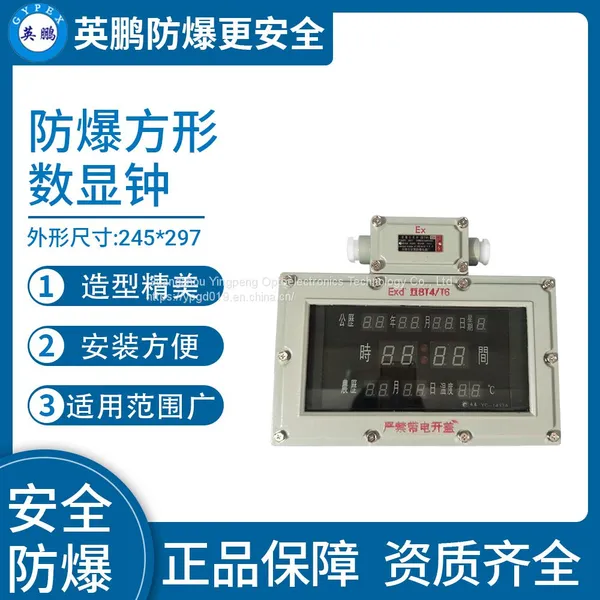

Guangzhou Yingpeng explosion-proof square quartz clock

Main technical parameters of explosion-proof bell:

Environmental temperature: -15~+50 ℃ (indoor)

Relative humidity: ≤ 85% [1]

Atmospheric pressure: 80-110 kPa

Explosion proof sign: ExdIIB/CT6

Working voltage: DC1.25~1.70V (1 5 # battery)

External dimensions (width * length mm): 245 * 297 Explosion proof grade: Exib II CT6

Overview of explosion-proof quartz clock:

The explosion-proof quartz clock is a fully quality and safe explosion-proof clock. The explosion-proof quartz clock is wall mounted and refined using advanced technology, with accurate and reliable travel time, beautiful appearance, and convenient use. It is an ideal timing tool. Suitable for places containing flammable and explosive gas mixtures, such as petroleum, chemical, oil depots, steel, coking, mining and other enterprises.

Usage of explosion-proof quartz clock:

1. Install the battery: Open the battery box and insert the battery according to the "+" and "-" pole markings indicated on the battery box. The second hand starts running, indicating that the explosion-proof clock is working properly.

2. Needle timing: Turn the needle wheel on the back of the movement to the standard time.

4、 Precautions for explosion-proof quartz clock:

1. The explosion-proof quartz clock is an intrinsically safe explosion-proof product, and any changes to the components in the circuit may affect the explosion-proof performance of the explosion-proof quartz clock. Therefore, users are required not to disassemble any electronic components inside the movement.

The power circuit of the explosion-proof clock is equipped with a safety protection device, and the replacement of the battery will not affect the explosion-proof performance of the explosion-proof quartz clock.

Applicable scope:

1. This product is suitable for explosive environments such as petrochemicals, laboratories, metallurgy, textiles, food, bioengineering, pharmaceuticals, warehouses, aerospace engineering, and military industries, with temperature control requirements;

Zone 2.1 and Zone 2 hazardous gas locations

3. Class IIA, IIB, IIC, T1-T4 explosive gas or steam environment;

4. Environmental temperature: -5 ℃~+43 ℃.

It can be widely used in hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with a temperature group of T4 in petroleum, chemical, aerospace, laboratory, storage, military and other departments. The BL series industrial grade integrated explosion-proof refrigerator is a Class IIC explosion-proof refrigeration system manufactured using integrated explosion-proof technology according to industrial environmental requirements.

The entire machine adopts ultra weak current technology to isolate intrinsically safe circuits. After process manufacturing and explosion-proof treatment, the design and manufacturing of the product strictly follow relevant standards:

GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "

GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "

GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "

GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

The product surface adopts surface temperature limit protection technology, comprehensive anti-static technology, and various safety protection technologies;

GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "

GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "

GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "

GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

The product surface adopts surface temperature limit protection technology, comprehensive anti-static technology, and various safety protection technologies;
