Customized Food Grade PVC Laminate with PE Films

PVC board is made of PVC as raw material with a section of honeycomb mesh structure. Is a kind of vacuum plastic film, used for the surface packaging of various panels, so it is also known as decorative film, adhesive film, applied to building materials, packaging, medicine and many other industries. Among them, the building materials industry accounts for the largest proportion of 60%, followed by the packaging industry, and a number of other small-scale application industries. According to the degree of softness and hardness, it can be divided into soft PVC and hard PVC. According to the production process can be divided into PVC skin foaming board and PVC free foaming board.

meaning

PVC

PVC laminate: This product is made of PVC resin and stabilizer and other auxiliary materials after calendering and laminating, with high quality corrosion resistance and insulation

PVC board

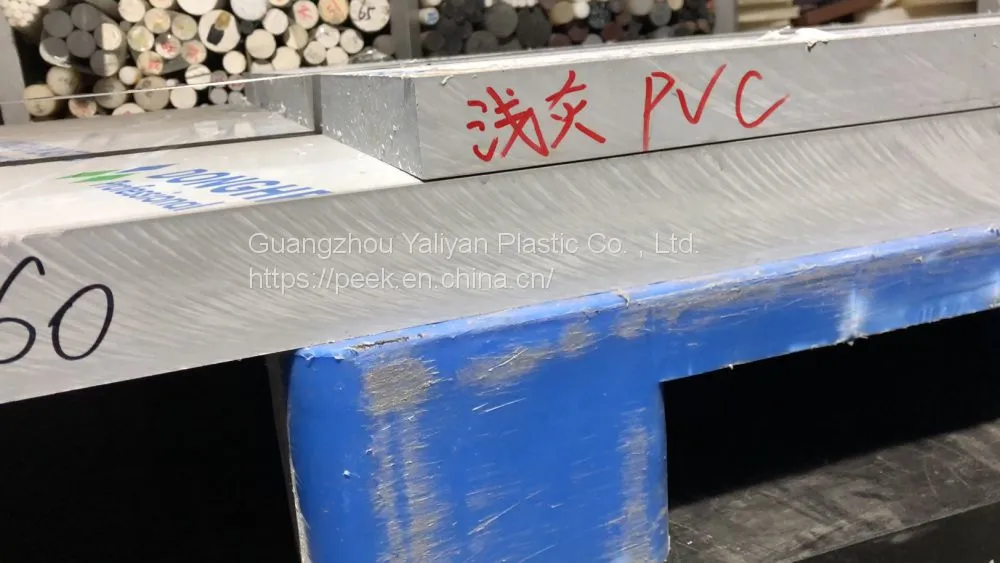

High strength, easy secondary processing, saw, drill, planer, in line with GB/T445496 standard requirements, widely used in chemical, chemical fertilizer, construction, electroplating, environmental protection water purification treatment and other departments of acid and corrosion resistant structural materials. The appearance of the board surface is smooth and smooth, no bubbles, no cracks, generally gray, can also be matched according to user needs. Specifications: General thickness :2--70MM Long width :2000*1000MM

PVC board is made of PVC as raw material with a section of honeycomb mesh structure. Is a kind of vacuum plastic film, used for the surface packaging of various panels, so it is also known as decorative film, adhesive film, applied to building materials, packaging, medicine and many other industries. Among them, the building materials industry accounts for the largest proportion of 60%, followed by the packaging industry, and a number of other small-scale application industries. According to the degree of softness and hardness, it can be divided into soft PVC and hard PVC. According to the production process can be divided into PVC skin foaming board and PVC free foaming board.

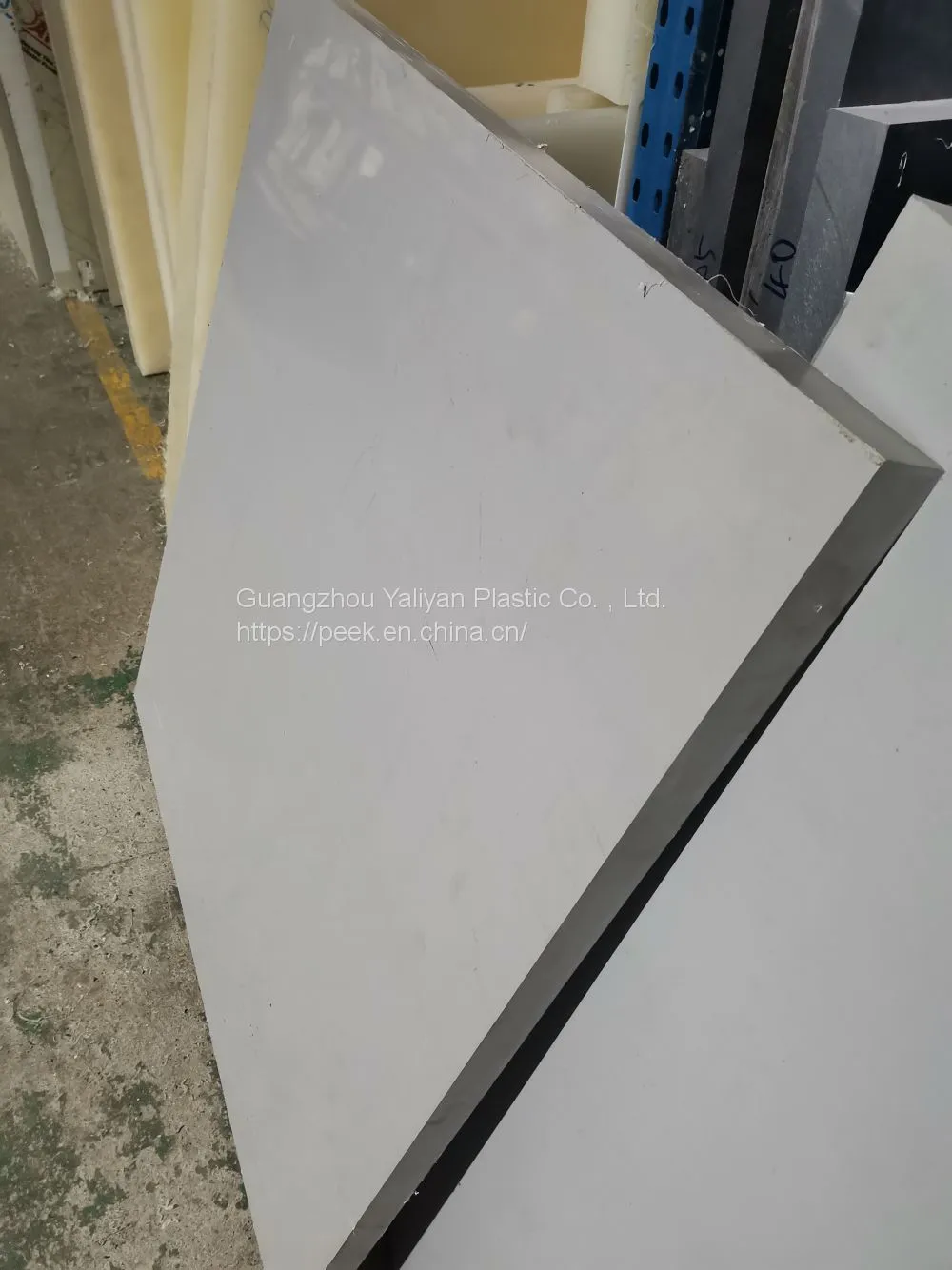

Hardness PVC board: the product quality implementation GB/T4454-1996, has good chemical stability, corrosion resistance, hardness, strength, high strength, anti-ultraviolet (aging resistance), fire retardant (with self-extinguision), reliable insulation performance, smooth surface, no water absorption, no deformation, easy processing and other characteristics. The product is an excellent thermoforming material, which can replace some stainless steel and other corrosion resistant synthetic materials, and is widely used in chemical, petroleum, electroplating, water purification treatment equipment, environmental protection equipment, mining, medicine, electronics, communication and decoration industries.

Product thickness: 0.8-30mm Product width: 1300mm 1500mm Length: can be produced according to customer needs.

Soft PVC board

Laminate: 2-60mm Product width: 1000mm × 2000mm

Product thickness: 2-20mm maximum width: 1300mm

Product length: 100-10000mm Recommended specifications: 1300×2000mm

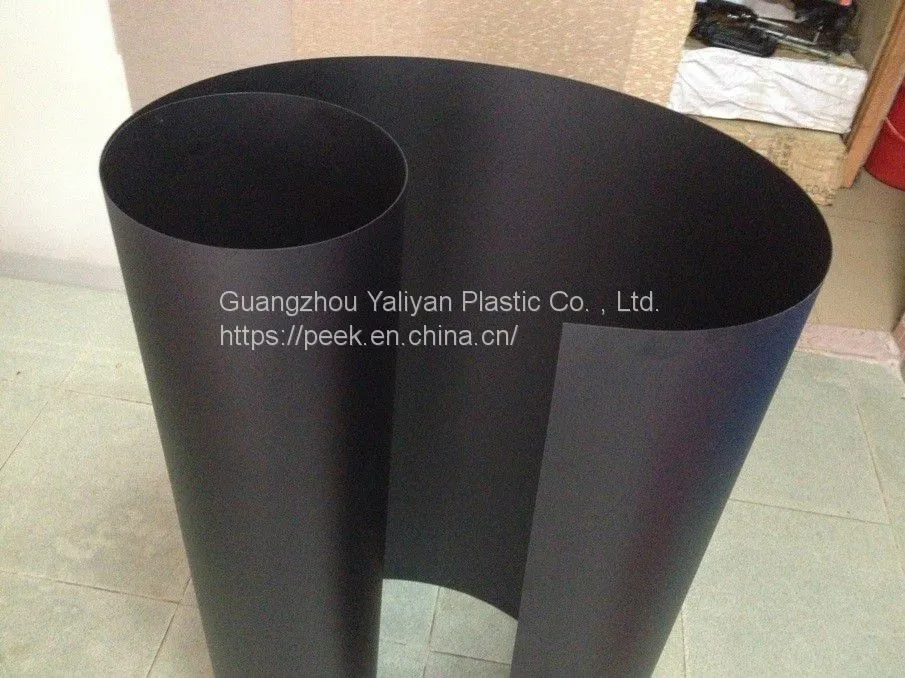

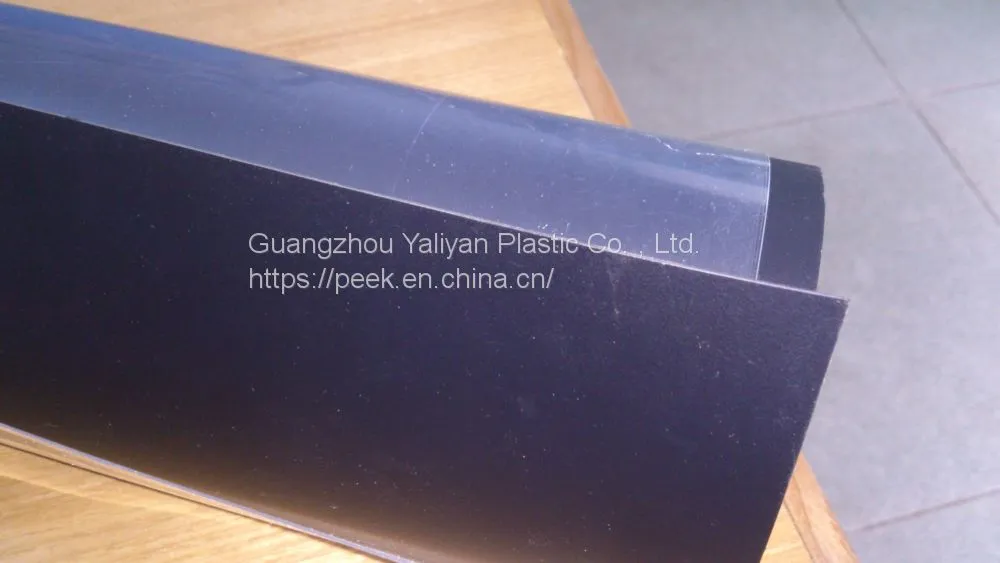

PVC soft board (coil) : surface gloss, soft. There are brown, green, white, gray and other colors to choose from, the product is made of high-quality materials, fine production, widely used. Soft cold resistance, wear resistance, acid resistance, alkali resistance, corrosion resistance, tear resistance, excellent weldability, physical properties are better than rubber and other coils. Used in chemical, electroplating, electrolyzer lining, insulation pad, train, automobile interior and auxiliary materials.

Product features:

1. Waterproof, flame retardant, acid and alkali resistance, moth-proof, light weight, thermal insulation, sound insulation, shock absorption characteristics

2. The same processing as wood, and the processing performance is far better than wood

3. It is an ideal substitute for wood, aluminum and composite plate

UPVC

Plate thickness: 2.0mm-3.0mm

Weight: 2.5--4.5 kg/m2

PVC board

Applicable temperature: -50℃-70℃

Tensile strength: 29.4mpa

Bending strength: 45.6mpa

Low temperature (-5℃ drop hammer impact): 10 times zero crushing

Color: according to customer requirements

Life span: not less than 50 years

PVC hard plastic board has excellent corrosion resistance, insulation, and a certain mechanical strength; After secondary processing, sulfuric acid (hydrochloric acid) tank (bucket box) can be made; Medical empty needle frame, chemical process frame; Public toilet water tank; Processing products of templates, decorative plates, exhaust pipes, equipment lining and other special products, containers. It is an ideal choice for chemical, building materials, decoration and other industries.

Edit the performance of this section

General performance PVC resin is a white or light yellow powder with a relative density of 1.35-1.45. The hardness and softness of the product can be obtained by adding

PVC transparent plate

PVC can withstand most inorganic acids, alkalis, salts and most organic solvents. Suitable for medicine, chemical anticorrosive materials.

Edit this section category

Anti-static PVC board

Anti-static PVC board (anti-static PVC board)

The flame retardant rating is UL-94: V-0.

Color:

Transparent, smoke color, milky white, gray, etc.

Application:

Equipment cover, dust-free box, test fixture, etc. [2]

The product is an excellent thermoforming material, which can replace some stainless steel and other corrosion resistant synthetic materials.

PVC transparent plate

Product thickness limit: below 20mm

Maximum width of product: 1300mm

Specifications: 1300

Specification: Plate: Thickness x width x length =2 ~ 50mmx1000mmx2000mm; (laminate)

Long thick x width x = 2 ~ 30 mmx1220 mmx2440/1300/2000 mm; (Extruded plate)

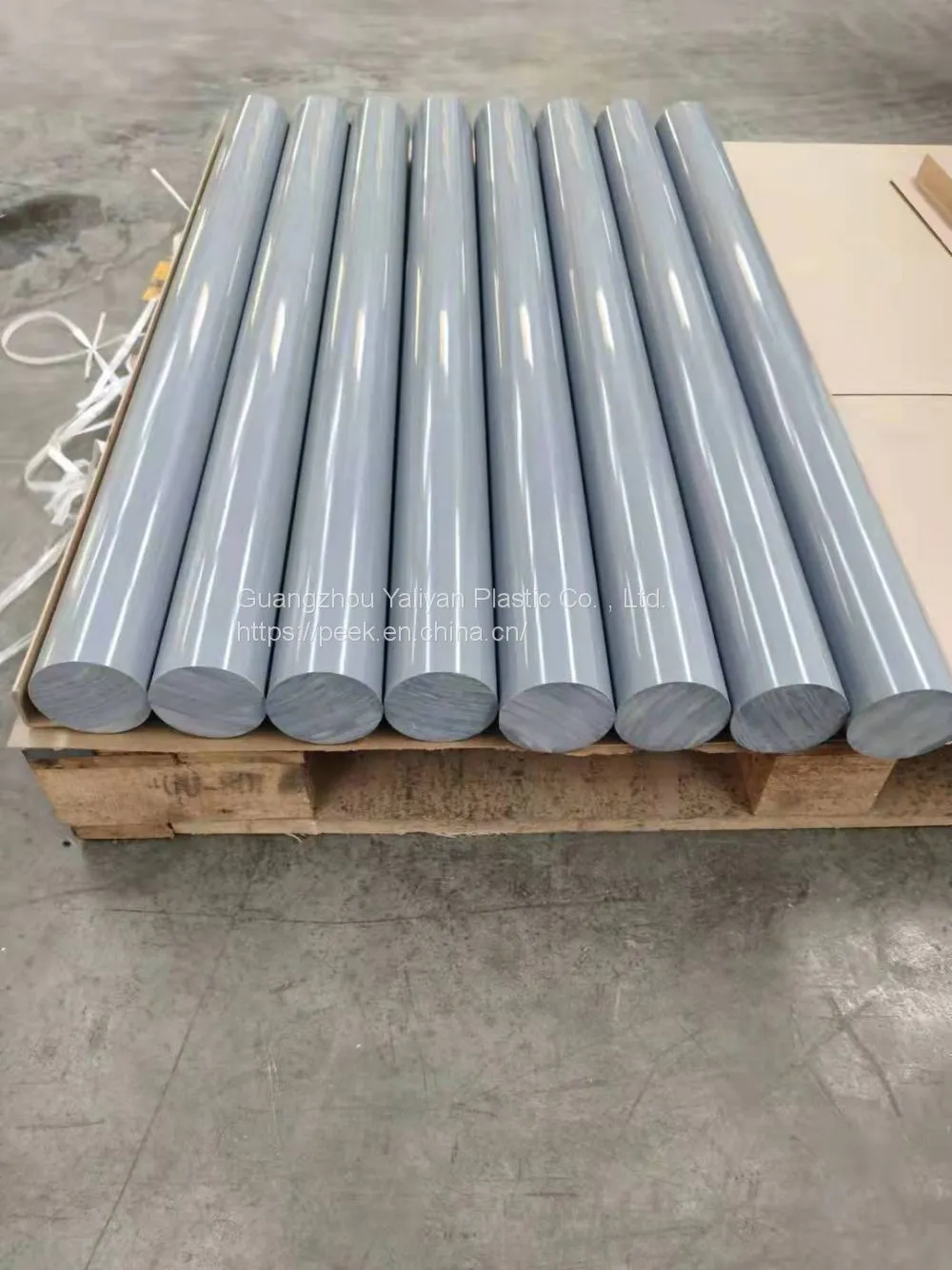

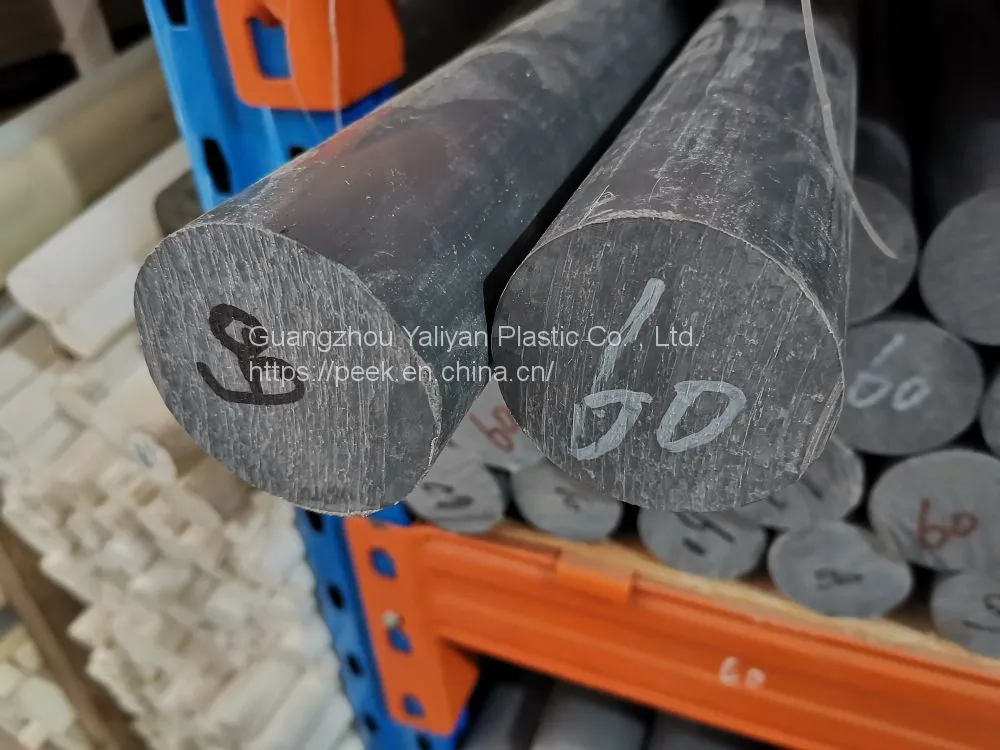

Bar: Diameter x length =10 ~ 250mmx1000/2000mm

Color: GRAY/WHITE/BLUE/YELLOW

Origin: Germany Gail/Taiwan South Asia/domestic

Guangzhou Yayan Plastic Products Co., LTD. Spot supply: PEEK board/rod, PPS board/rod, PVDF board/rod, PTFE board/rod, PSU board/rod, PEI board/rod, PI board/rod, PAI board/rod, PPO board / bar, PBT board/bar, CPVC board/bar, UPE board/bar, PETP board/bar, PC board/bar, POM board/bar, ABS board/bar, PMMA board/bar, PP board/bar, PE board / bar, imported PU board/bar, German PES board/bar, domestic PVC board/bar, Swiss engineering PBI board/bar, German PA nylon series board/bar/piece, MC nylon series board. Insulation materials: Taiwan red, black electric board, cold stamping board, phenolic laminated cloth bar board, heat insulation board, epoxy glass fiber bar board, epoxy board (FR-4) asbestos board, etc. Anti-static products: anti-static POM board/bar, anti-static organic board, anti-static PC board. Anti static PVC board/bar, anti static nylon board/bar synthetic SLATE and so on.
