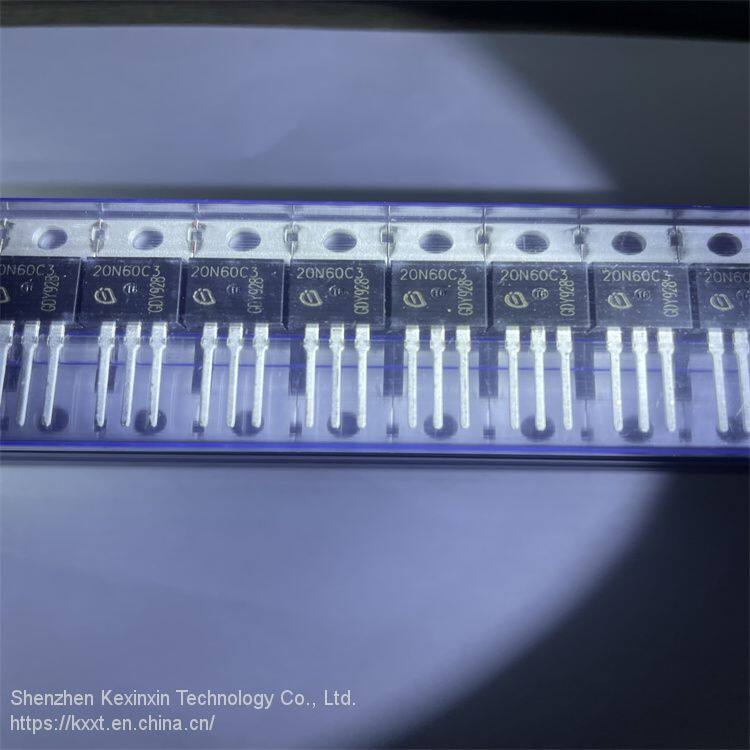

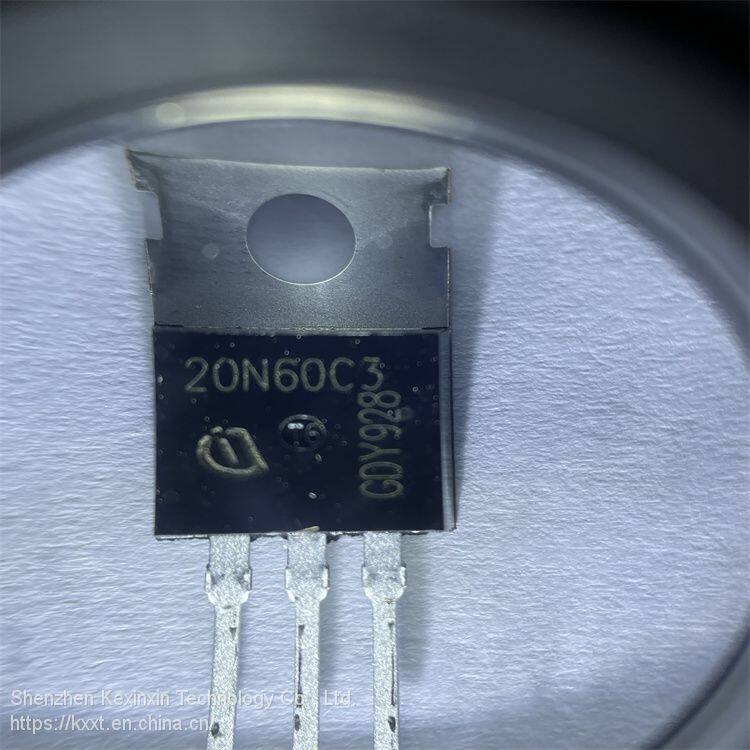

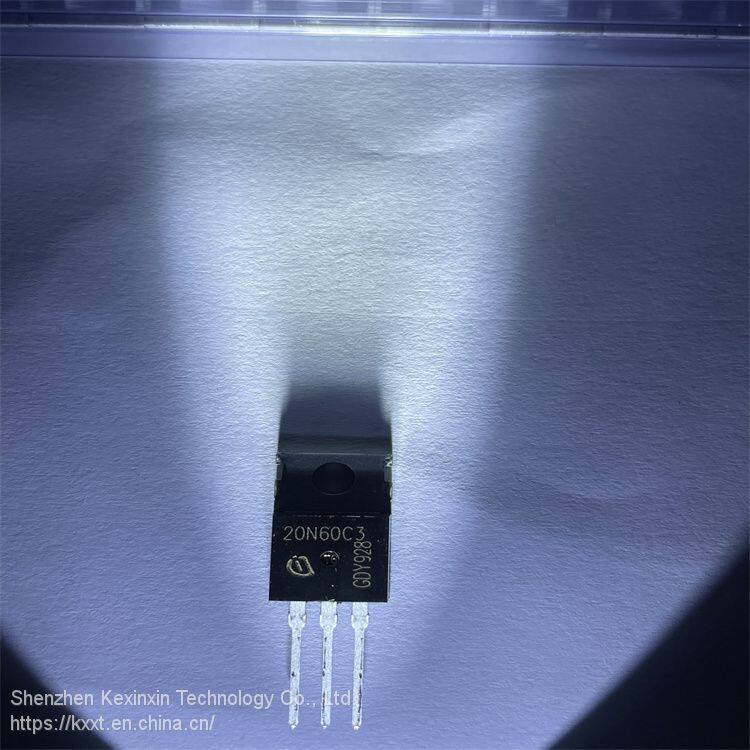

Fast Delivery Spb20n60c3 Original Electronic Components Integrate Circuit Ic Chip

SPB20N60C3

Manufacturer: Infineon

Product Category: MOSFET

RoHS:  Details

Technology: Si

Mounting Style: SMD/SMT

Package / Case: TO-263-3

Transistor Polarity: N-Channel

Number of Channels: 1 Channel

Vds - Drain-Source Breakdown Voltage: 600 V

Id - Continuous Drain Current: 20.7 A

Rds On - Drain-Source Resistance: 190 mOhms

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Vgs th - Gate-Source Threshold Voltage: 2.1 V

Qg - Gate Charge: 87 nC

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 150 C

Pd - Power Dissipation: 208 W

Channel Mode: Enhancement

Tradename: CoolMOS

Series: CoolMOS C3

Packaging: Reel

Packaging: Cut Tape

Packaging: MouseReel

Brand: Infineon Technologies

Configuration: Single

Fall Time: 4.5 ns

Height: 4.4 mm

Length: 10 mm

Product Type: MOSFET

Rise Time: 5 ns

Factory Pack Quantity: 1000

Subcategory: MOSFETs

Transistor Type: 1 N-Channel

Typical Turn-Off Delay Time: 67 ns

Typical Turn-On Delay Time: 10 ns

Width: 9.25 mm

Part # Aliases: SP000013520 SPB2N6C3XT SPB20N60C3ATMA1

Unit Weight: 0.139332 oz
