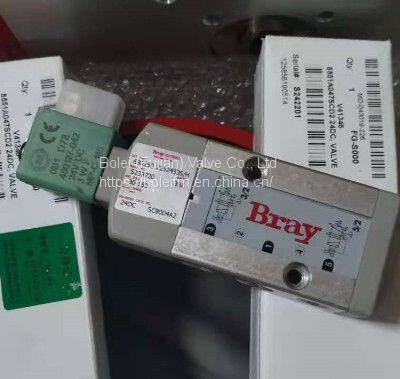

BRAY S63 Two Position Five Way Solenoid Valve

These Bray Series 63 solenoid valve units can be used with either spring return or double acting actuators where on/off electrical operation is required. Units have 1/2” NPT conduit connections and IP65 DIN units have cable gland PG9 connectors, also available with 1/2” NPT conduit adapters. The coils are UL recognized and CSA certified. All Series 63 solenoids carry the CE mark.

• Compact

• Modular

• Pilot Operated

• Spool Control Valve

• Convertible From 3-way (3/2) to 4-way (5/2)

• Spring Return or Double Acting

• Stainless Steel housings

• Low-powered units

• Intrinsically safe units

• BUS solenoids are available for DeviceNet and Profibus-PA protocols

• Available AS-i interface solenoids with IP65 DIN/PG9 cable gland connectors

• All direct mount to Bray pneumatic actuators

• Speed controls that allow independent control of speed in both directions
