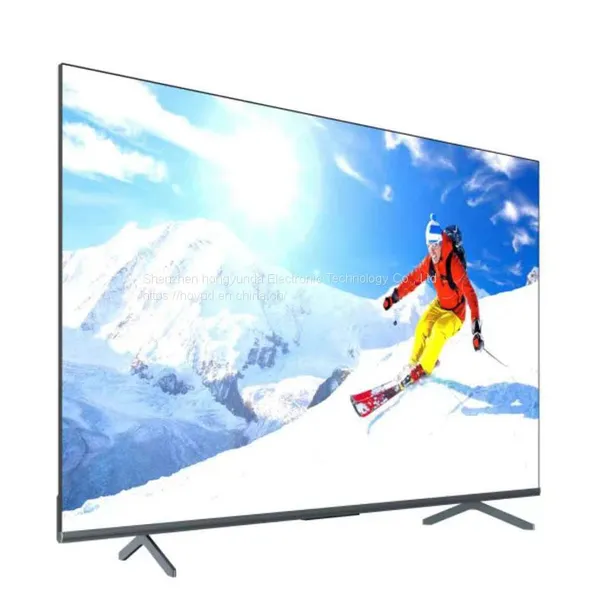

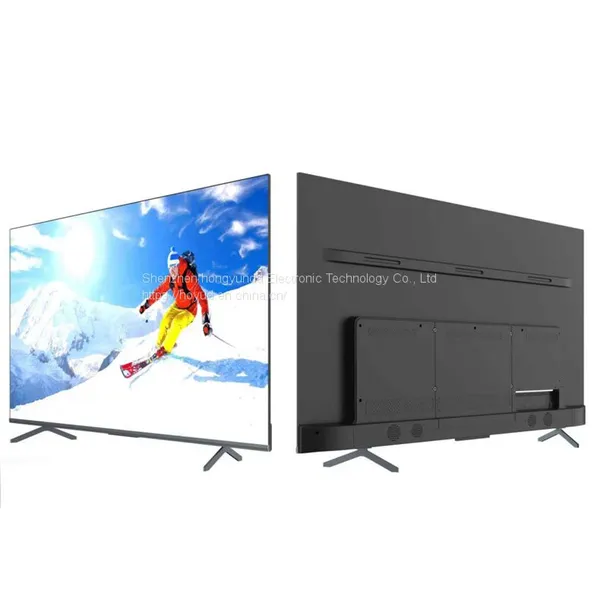

Product model S10086D18A
product type Intelligent 4K LCD TV product positioning high-end pane l LCD size 98"
LCD supplier BOE
Panel model UV980QUB-N10
Backlight LED (OD20 straight down structure) resolving power 3840*2160
Brightness (typ)/(min) 350-400cd/㎡(Max)
Contrast rate (typ)/(min) 4000:1
Response time (typ)/(min) 8ms (Typ.)
Pixel pitch 0.5622 (H) x 0.5622 (V)
Frame rate 60Hz
visual angle H 178°,V 178°
Life (typ)/(min) 50000h
Color saturation (x% NTSC) 68%
visible area 2158.848(H)x1214.352(V)
Chromaticity 16.7M
Scanning mode progressive scanning Android system
CPU
framework ARMv7
CVT mainboard, model: T.HV620.81 2G+16G
Working frequency 1.2GHz
Number of cores Cortex A53*4 / 64bit Quad-core CPU GPU 6-core 450MHZ/hex core high performance GPU Internal cache capacity (RAM) 2G Byte
Internal storage capacity (ROM)
16G Byte
System version 5.1
Networking mode Wired/wireless operating system popular I/O interface TV input interface (75 Ω) 1 (IEC standard head) Digital analog integration, including DTMB function
HDMI out /
HDMI in 2
USB2.0 in 1
USB3.0 in 1
Ethernet in RJ45 standard interface * 1
Ethernet out /
WIFI 802.11 b/g/n, Build In module optional, Need ANT (2.4+5G external) Dual band antenna
DP in /
VGA in 1
PC-Audio in 1
Earphone out 1
AV out /
TF card /
YPBPR in /
AV in 1
SPDIF out /
Coaxial out 1
voic e Speaker power 2×10W(8Ω) THD+N
frequency response 100Hz~15K Hz @±3dB(1KHz, -12dB reference signal)
Speaker type Box speaker, stereo Radiation direction backward Key Light touch type Standard 7-key control language OSD Chinese, English Use environment working temperature 0℃- 40℃
Storage temperature - 20℃~60℃
Operating humidity 10% - 90% non condensing Maximum usage time (hours/day) 18 hours Power Supply input voltage Rated 100-240V~, maximum 90-264V~50/60Hz maximum power 480W
standby power <0.5W
power switch Ship type double pole switch Weight and size Net weight 96kg
Gross weight 125kg
External dimension of bare machine (W * D * H) does not include base 2199.7mm * 84.6mm * 1259.6mm (thickness of main body: 53.6mm) External dimension of bare machine (W * D * H) including base 2199.7mm * 438.1mm * 1381.1mm (thickness of main body: 53.6mm) Package size (W x D x H) two thousand four hundred and thirty×two hundred and fortyfive×1530mm (L * W * H) Honeycomb carton+6 pieces of pearl cotton Housing material Surface brushed aluminum alloy face frame, die stamping back plate, hardware back cover Shell color All Black VESA hole location 800mm*400mm
Packing list Remote control 1
Neutral accessor ies power cord 1
instructions 1
Wall bracket Optional Mobile support Optional
