SIEMENS SQM50.480A2Z3 Damper actuator

Siemens' comprehensive product line of wind valve actuators can be customized according to the specific HVAC requirements of users in terms of positioning force, control signal, communication standards, and additional options. The OpenAir actuator has good reliability and high efficiency, and can be used in conjunction with low-power motors to achieve fast and accurate functional control. Whether on the construction site or during operation, it can achieve long service life, significantly reduced energy consumption, and long-lasting durability.

Energy saving, easy to use, and reliable: The entire air valve actuator product line is very simple and efficient to use, easy to install, fast to debug, and easy to operate. Adopting standardized wiring diagrams and automatic centering shaft connectors significantly saves time and costs.

The air valve actuator is easy to customize according to specific requirements, reliable and durable, and can meet various application requirements: ventilation comfort, variable air volume, fire and smoke prevention air valves, railway vehicles, and other special application requirements, as well as positioning force, communication bus, control signal, and other requirements.

Siemens Building Technology can provide energy-saving and safe building and infrastructure solutions.

Siemens actuator application field: For applications that prioritize high thrust and safety, long travel valves used in conjunction with electric hydraulic actuators are undoubtedly a good choice. Electric hydraulic actuators are the choice for demanding regional heating applications and large-scale equipment. Their positioning force, robustness, agility of spring return, and many other functions have excellent performance. Electric hydraulic actuators are the ideal choice for control of sub circuits in computer rooms and high flow systems.

The advantages of Siemens electric hydraulic actuators include: ① high thrust, suitable for high flow rate and large pressure difference; ② Safe and reliable, ensuring safe and reliable operation even under extremely harsh conditions; ③ Economical use, sturdy construction, and long service life.

The Siemens controller can automatically challenge the water flow rate inside the primary side valve based on the secondary side outlet temperature, achieving a comfortable and energy-saving effect. The outlet temperature of the heat exchanger compensates for changes based on the outdoor temperature. Users feel comfortable during use, avoiding the strange cycle of higher outdoor temperature, higher indoor temperature, and lower outdoor temperature. Users can save operating costs, reduce operating costs, and achieve significant economic benefits while using comfortably.

The action principle of Siemens actuator: ① Open the valve: The hydraulic pump pushes the hydraulic oil in the oil storage chamber to flow into the pressure chamber, so the pressure cylinder is used to move downwards. The valve stem contracts and the valve opens. At the same time, the return spring is compressed Close the valve: Activating the electric valve allows hydraulic oil in the pressure chamber to flow back to the oil storage chamber. The compressed spring pushes the pressure cylinder stem upwards and extends, causing the valve to close.

Shanghai Pingkai Automation Equipment Co., Ltd. is specialized in the sales of industrial control automation products, system integration, electrical equipment sales, and electromechanical equipment sales.

Siemens Programmable Controller S7-200CN ET-200 S7-200 S7-300 S7-400 S7-1200 S7-1500 smartS7-200

Siemens touch screen OP77-TP series MP277 MP377 TD200-TD400C

Siemens Communication Accessories DP Cable Ethernet Cable DP Connector Communication Card

Siemens motor V60-V80 servo motor 1FT servo motor Bede motor 1FK motor

Siemens frequency converter V10 series MM440 series G110 series G120 series

Siemens CNC system 810D system 840D system 808D 8404DSL

Siemens frequency converter series: MM420, MM430, MM440, G110, G120. MIDASTER series

Siemens fully digital DC speed control device 6RA23, 6RA24, 6RA28, 6RA70, 6SE70 series

Siemens actuators, burners, controllers, electric eyes, flame detectors, modules, operation panels, etc

Siemens SQN, SQM, AGG, LFL, LME, LMV, QRA, SKP, VGD, VGF, VRD and other series products

AGA58.1- Drive shaft, diameter 10 mm, single sided, wooden wrench, 10Nm

AGA58.3- Drive shaft, Ø 9 mm, double-sided, 25Nm

AGA58.4- Drive shaft D9.5 MM, double-sided, corresponding to the shaft of the Honeywell MOD driver

VGG10.54P-air valve, 1 ", 1200mbar, 13.3m ³/ h，4xRp ¼”， Heteromorphic disc

VGG10.404P - Air valve, 1 ½ “，600mbar，32.3m ³/ h，4xRp ¼”， Heteromorphic disc

VGG10.504P air valve, 2 ", 600mbar, 47.4m ³/ h，4xRp ¼”， Heteromorphic disc

VGD20.403- Double gas valve, DN1 ½ “，85m ³/ h. 3 different connections available for selection

VGD20.503- Double gas valve, DN2 ", 85m ³/ h. 3 different connections available for selection

VGD40.065- Double gas valve, DN65160m ³/ h

VGD40.065U - Double gas valve, DN65, threaded connection 2 ½ (United States)

SKP15.011U1- Air valve actuator, POC, stroke indicator, AC110V (USA)

SKP15.013U1- Air valve actuator, stroke indication, AC110V (USA)

SKP15.000E2 Air valve actuator, no stroke indication, 1st stage, AC230V

SKP15.001E2- Air valve actuator, end switch, 1st stage, AC230V

SKP25.011U1- Air valve actuator, POC, stroke indicator, AC110V (USA)

SKP25.013U1- Air valve actuator, stroke indication, AC110V (USA)

SKP25.001E2- Air valve actuator, end switch, 1st stage, AC230V

SKP55.001E2- Gas valve actuator, end switch, 1st stage, AC230V

SKP55.003E2- Air valve actuator, stroke indicator, AC230V

SKP75.001E2- Air valve actuator, end switch, 1st stage, AC230V

SQM10.16502 actuator, 10Nm, 90 °/29s, 130 °/42s, 5 auxiliary switches, starting torque 15Nm, AC230V

SQM10.16502 actuator, 10Nm, 90 °/29s, 130 °/42s, 5 auxiliary switches, starting torque 15Nm, AC230V

SQN30.402A2700 actuator, 90 °/30s, 3Nm, 3 auxiliary switches, AC230V

SQM41.241A21 -- actuator, 10Nm, 90 °/30s, electronic version, axis 10mm "D", CE, 1 potentiometer, AC230V

SQM40.265A21 actuator, 10Nm, 90 °/30s, cam, shaft 10mm "D", CE, 1 tank, AC230V

SQM45.291B9 actuator, 3Nm, 90 °/10s, CAN bus, shaft 10mm+key, holding torque of 1.5Nm

SQM48.697B9 actuator, 35Nm, 90 °/60s, CAN bus, axis 14mm+key, holding torque 35Nm

SQM50.481A2 actuator, 15Nm, 90 °/30s, 8 switches, shaft 10mm+key, CE, AC230V

SQM50.482A2 actuator, 15Nm, 90 °/30s, 8 switches, shaft 12mm+key, CE, AC230V

SQM50.480A2G3 actuator, 15Nm, 90 °/30s, 8 switches, shaftless, CE, 4... 20mA, AC230V

SQM50.481A2G3 actuator, 15Nm, 90 °/30s, 8 switches, shaft 10mm+key, CE, 4... 20mA, AC230V

SQM50.483A1Z3 actuator, 15Nm, 90 °/30s, 8 switches, shaft 9.5mm, CE, electronic, AC110V

SQM50.483A2Z3 actuator, 15Nm, 90 °/30s, 8 switches, shaft 9.5mm, CE, electronic, AC230V

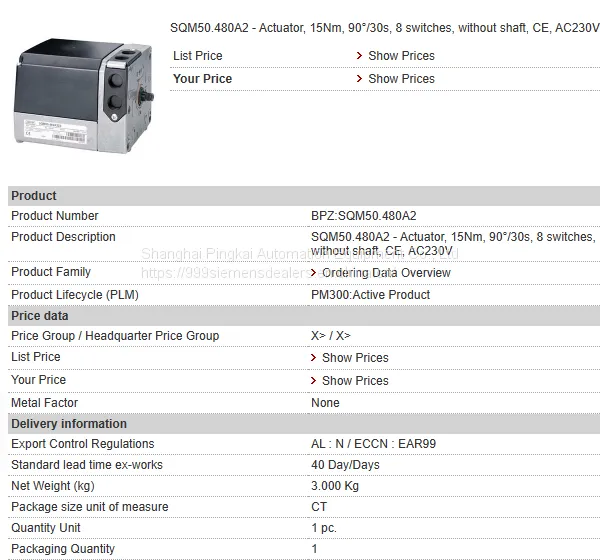

SQM50.480A2 actuator, 15Nm, 90 °/30s, 8 switches, shaftless, CE, AC230V

SQM56.687A1 actuator, 40Nm, 90 °/60s, 8 switches, axis 14mm+key, CE, AC110V

SQN30.111A2700 actuator, 90 °/4.5s, 1Nm, 1 relay, 2 auxiliary switches, AC230V

SQN30.111A3500 actuator, 90 °/4.5s, 1.5Nm, 1 relay, 2 auxiliary switches, AC230V

SQN30.151A2700 actuator, 90 °/4.5s, 1Nm, 2 relays, 1 auxiliary switch, AC230V

SQN30.251A2700 actuator, 90 °/12s, 1.8Nm, 2 relays, 1 auxiliary switch, AC230V

SQN30.431A2700 actuator, 90 °/30s, 3Nm, 2 relays, 1 auxiliary switch, AC230V

SQN31.121A2760 actuator, 90 °/4.5s, 1Nm, 2 relays, 1 auxiliary switch, AC230V

SQN31.221A2700 actuator, 90 °/12s, 1.8Nm, 2 relays, 1 auxiliary switch, AC230V

SQN31.402A1700 actuator, 90 °/30s, 3Nm, 3 auxiliary switches, shell 125mm, AC110V

SQN31.401A2700 actuator, 90 °/30s, 3Nm, 3 auxiliary switches, AC230V

SQN31.402A2700 actuator, 90 °/30s, 3Nm, 3 auxiliary switches, shell 125mm, AC230V

SQN31.762A2700 actuator, 90 °/23s, 2.5Nm, 2 relays, shell 125mm, AC230V

SQM33.511A9- Driver, 3 Nm, cable 3.6 m

SQN31.251A1700- actuator, 90 °/12s, 1.8Nm, 2 relays, 1 auxiliary switch, AC110V
