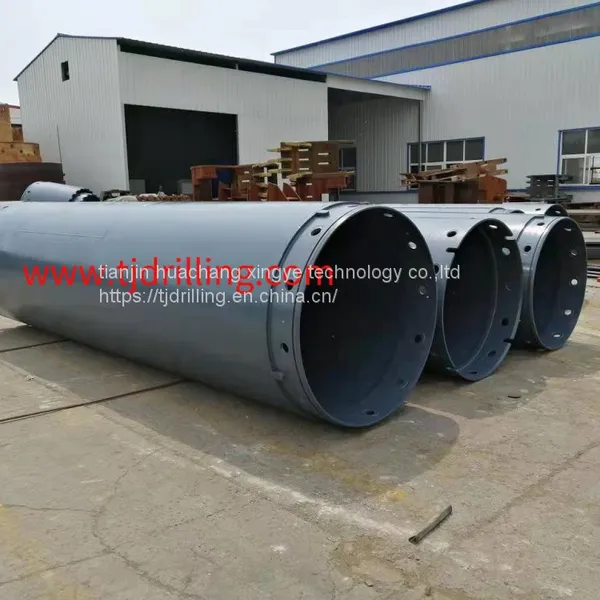

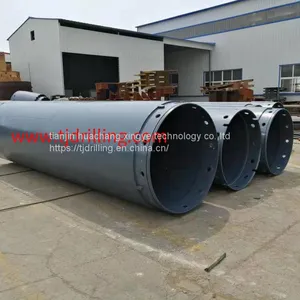

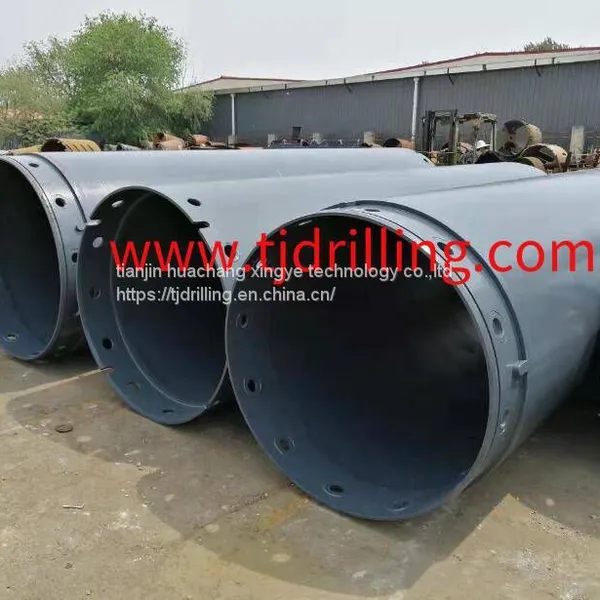

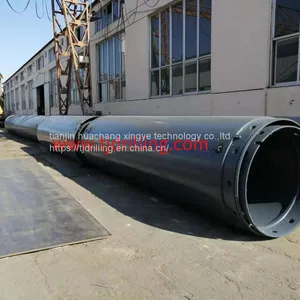

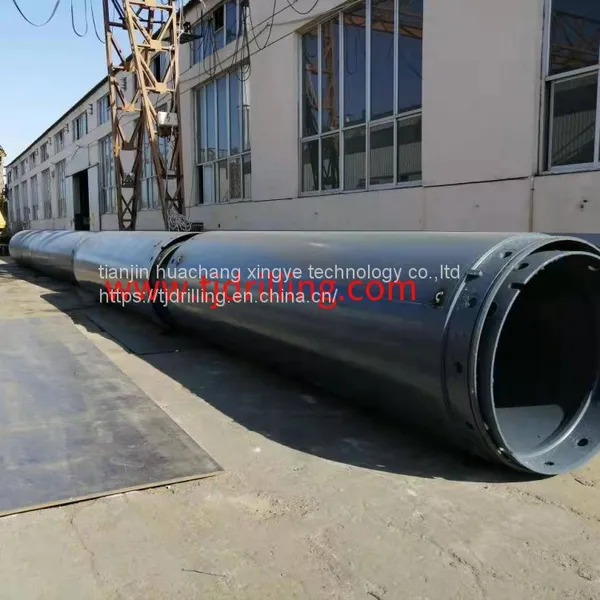

Sell 1200mm Double Walled Casings bauer Screw Type, Diameter 1200/1120 mm, Length: 3 M wall thickness 40mm

Sell 1200mm Double Walled Casings bauer Screw Type, Diameter 1200/1120 mm, Length: 3 M wall thickness 40mm

Sell 1000mm Double Walled Casings bauer Screw Type, Diameter 1000/920 mm, Length: 3 M wall thickness 40mm

Sell 800mm Double Walled Casings bauer Screw Type, Diameter 880/800 mm, Length: 3 M wall thickness 40mm

Sell 1500mm Double Walled Casings bauer Screw Type, Diameter 1500/1400 mm, Length: 3 M wall thickness 50mm

 Double walled casing which are used widely used either for their resistance and ability to ensure a flush drill string.
Single walled casing which can be used when weight reduction is required or for light works.

These both versions could be equipped with Screw type connection or Key connection

Sell 1200/1120mm double wall casing with bauer screw joint with walls thickness of 40mm for bored pile

Sell 1200mm double wall casing with bauer screw connection with walls thickness of 40mm for bored pile

Sell 620/540mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 600mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 750/670mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 700mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 1000/920mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 1180/1100mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 1500/1400mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 1500mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 1800/1700mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 1800mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 2000/1880mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 2000mm double wall casing with bauer screw joint length 1m ,2m,3m, 6m for bored pile foundation work

Sell 880/800mm double wall casing with bauer screw joint with walls thickness of 40mm for bored pile

Sell Sell D800mm double wall casing with walls thickness of 40mm with bauer screw connection

Sell  880/800mm double wall casing PIPE with walls thickness of 40mm with bauer screw connection

Sell JAPAN SCREW TYPE double wall casing  880/800mm with walls thickness of 40mm with bauer screw connection

Sell  880/800mm double wall casing with KEY JOINT WITH walls thickness of 40mm

SELL KEY JOINT DOUBLE WALL CASING 1000/920MM WITH 40MM THICKNESS

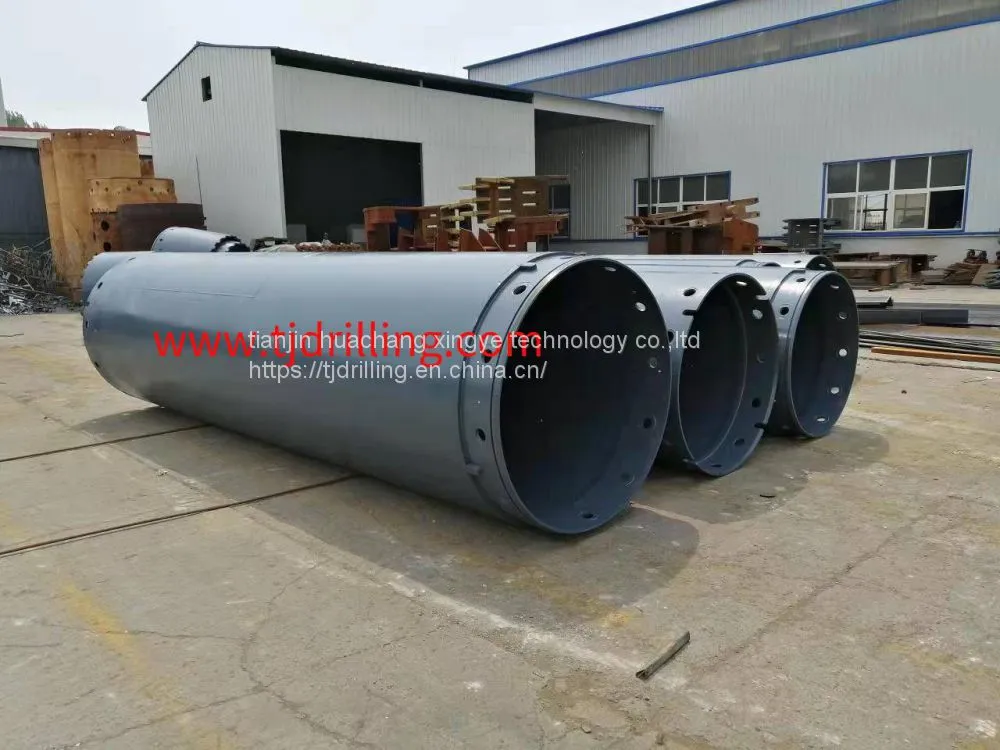

Double wall сasing: diameter 600-2000mm with walls thickness 40-50mm.

Length 1m,2m,3m,4m,5m,6m Designed for drilling with drived by casing oscillator or a rig rotary system. Connections  Bauer conical thread screws and centring keys.

double wall casing pipe/Single wall casing
Casing joints and pipes for pile protection of collapsing. Casing joints are composed of one male half joint and one female joint welded at each end of casing pipe for easy pipe connection. Joints coupling supplied with conical screw type for single and double wall casing.cardan joint for rotary drilling

D1/D2 1m 2m 3m 4m 5m 6m a1 a2 t2 Bolts
(mm) Weight(kg) Parts Number (mm) (mm) (mm) (Nos)
620/540 403 739 1074 1411 1747 2081 12 8 40 8
750/670 492 902 1311 1722 2131 2540 12 8 40 10
880/800 585 1069 1552 2036 2520 3005 12 8 40 10
1000/920 669 1221 1773 2328 2877 3429 12 8 40 10
1180/1100 844 1580 2316 3052 3787 4522 16 8 40 12
1200/1120 872 1620 2370 3120 3870 4620 16 8 40 12
1300/1220 933 1746 2558 3372 4184 4996 16 8 40 12
1500/1400 1433 2628 3817 5009 6210 7393 20 10 50 12
1800/1700 1730 3166 4602 6038 7474 8910 20 10 50 16
2000/1880 2450 4280 6110 7940 9770 11600 20 15 60 12
2200/2080 2700 4720 6740 8760 10780 12800 20 15 60 12
2500/2380 2960 5240 7520 9800 12080 14360 20 15 60 16
