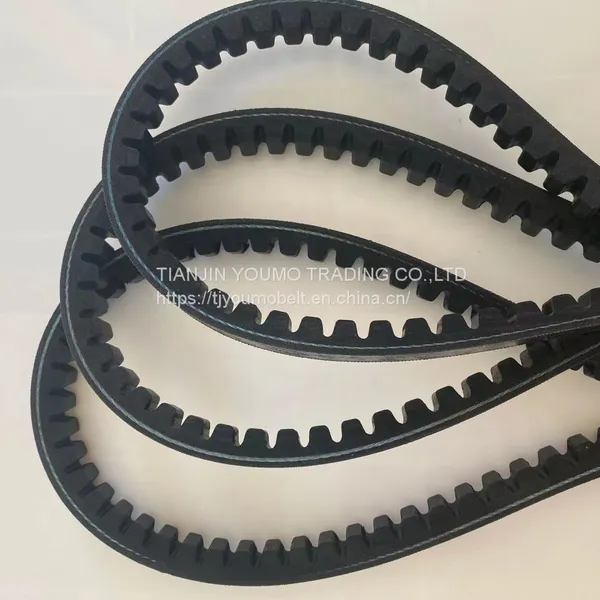

tooth V belt

FOB Price

USD $1.00 - $3.00 / Piece

50 Pieces(Min.Order)

Supply Ability 500000 Piece / Pieces per Month
Port tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Customer logo		Place of Origin	China
Model Number	AX BX CX

Product Description

INSTRUCTION:

V-belt is commonly known as the “V” belt, belt transmission is a kind of flexible, has the following characteristics: simple structure, suitable for two axis center distance larger occasions, adhesive tape, elastic, can buffer vibration absorption, drive smoothly without noise, overload can produce skid, can prevent damage of weak parts, safety protection, but it can’t keep accurate transmission ratio; The belt needs to be tensioned on the belt wheel, and the pressure on the shaft and bearing is large.

V belt is divided into two kinds, one is with teeth, called teeth V belt or cogged belt , the teeth are not working surface, but as a heat dissipation surface; One is without teeth, called the wrapped V belt.

Characteristic and Advantages

V belt made by special material ,special formula and special craft,low noise ,long life ,impact resistance,adapt high power seed transmission .the unique straight edge structure protects the tension line effectively ,avoids tension line and the belt wheel happens friction ,also avoids the tension line stripping effectively.

Specification :

Type	Top Width (mm)		Pitch Width(mm)		Height (mm)		Length Strandard		Min.Dia.of Pulley(mm)		Wight/m (kgs)		Wedge Angle
A	13		11		8		La/Lw/Li		75		0.112		40
B	17.0		14		11		La/Lw/Li		125		0.192		40
C	22.0		19		14		La/Lw/Li		200		0.31		40
D	32.0		27		19		La/Lw/Li		355		0.61		40
E	38.0		32		23		La/Lw/Li		500		0.94		40
F	50.0		42.5		30		La/Lw/Li				1.58		40
Z	10.0		8.5		6		La/Lw/Li		50		0.065		40
Type		Top Width (mm)		Pitch Width(mm)		Height (mm)		Length Strandard		Min.Dia.of Pulley(mm)		Wight/m (kgs)		Wedge Angle
ZX		10.0		8.5		6		Lw/Li		40		0.062		40
AX		13		11		8		Lw/Li		56		0.099		40
BX		17.0		14		11		Lw/Li		90		0.176		40
CX		22.0		19		14		Lw/Li		140		0.276		40
DX		32.0		27		19		Lw/Li				0.598		40
EX		38.0		32		23		Lw/Li				0.933		40
