Marine Desktop Magnetic Compass
US$ 70 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ANHANG
Place of Origin:
China
Model Number:
JS0063-Z
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
7 days
Related Products
Brand Name
ANHANG
Place of Origin
China
Model Number
JS0063-Z

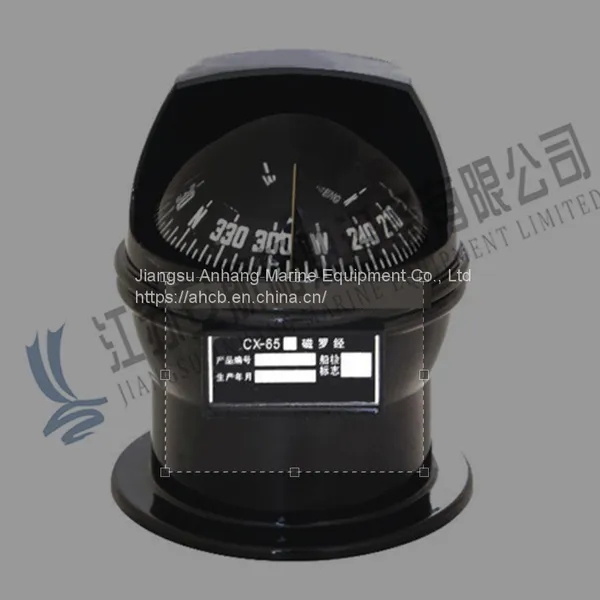

Type CX-65/65A small boat magnetic compass is a good liquid magnetic compass. The compass is designed and manufactured in accordance with ISO 14227-2001Small Boat Magnetic Compass>standard. Its actual dial diameter is 65mm, but the special spherical cover magnifies it to 85mm. The product has the advantages of simple structure,convenient using,accurate direction,high sensitivity legible dial etc. It is suitable for yachts,lifesaving boats,enclosed boats indicating course heading or distinguishing azimuth.
Main technical parameters:
| Project | data | data |
| item No. | CX-65 | CX-65A |
| Dial diameter | Φ65mm, magnifies Φ 85mm | Φ65mm, magnifies Φ 85mm |
| dial graduation | 0° - 360 ° , 5° for each gird | 0° - 360 ° , 5° for each gird |
| using temperature | -20°c to 60 °c | -20°c to 60 °c |
| indicating deviation (H=35µT,T=20±3 °c ) | ≤1.5° | ≤1.5° |
| half period (H=35µT,T=20±3 °c ) | ≥3 S | ≥3 S |
| Friction deviation (H=35µT,T=20±3 °c ) | ≤1 ° | ≤1 ° |
| main semicircle self heterodyne correcting energy | 0° - 30° (matching) | |
| light power supply | DC 24V(12V) | DC 24V(12V) |
| outline dimension | 135×135 × 135mm | 130 × 130 × 150mm |
| dameter of mounting holes | pitchrow 124 aperture Φ6 | pitchrow 115 aperture Φ5 |
| weight | 1KG |
0.8KG |
