Help CenterPaper and Plastic Thin Film Thickness Measurement ASTM D374
Related Products
-
Hot Sale Higher Cost Performance Flex Durability TesterUS$ 1000 - 4000MOQ: 1 Set -
High Cost Performance Touch Screen Bottle Plastic Film Flex Durability TesterUS$ 1000 - 4000MOQ: 1 Set
-
Plastic Film Packing Material Heating Sealing Instrument ASTM F2029US$ 1000 - 4000MOQ: 1 Set
-
Touch Screen Gradient Heat Seal Tester ASTM F2029US$ 1000 - 4000MOQ: 1 Set
-
Higher Cost Performance Gel Strength Tester Ability of a Colloidal Dispersion to Develop TestUS$ 1000 - 4000MOQ: 1 Set

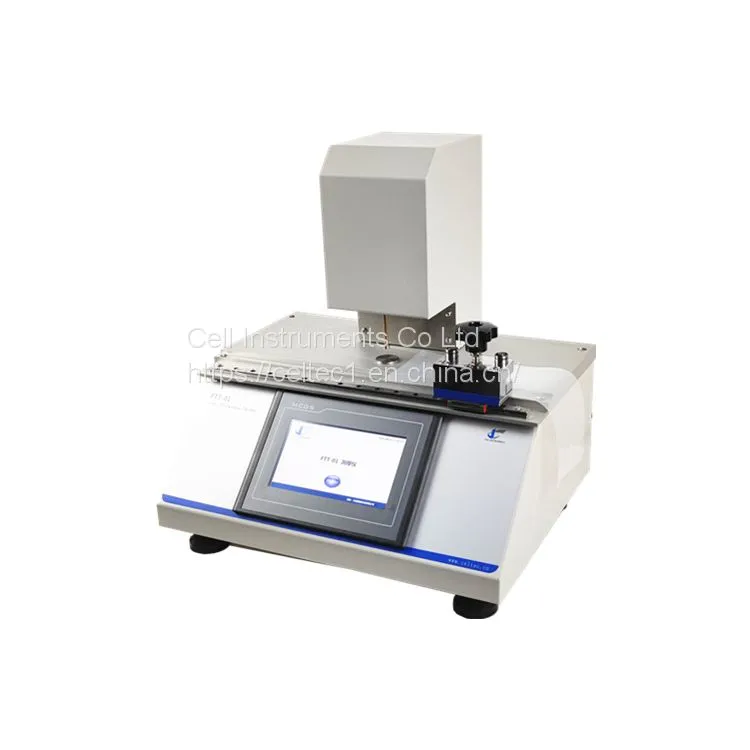

Thickness tester employs mechanical scanning method to measure the thickness of plastic films, sheets, board, fabrics, textile, membranes, paper, foil, wafers and other materials.
Summary of test method
A specimen is placed on the base and a weighted presser foot lowered. The displacement between the base and the presser foot is measured as the thickness of the specimen.
Features
1. PLC control and touch screen operation
2. Contact area and pressure are standards conformed.
3. Presser foot automatic lifting
4. Real time display of maximum, minimum, average and standard deviation
5. Data auto statistics, storage and micro printing
6. RS232 port and software (Optional)
Technical data
Test Range 0~2mm(Customization available)
Resolution 0.1 μm
Standard measure head hemispherical type
Optional measure head:
Measuring pressure: 17.5±1 KPa (for film); 50±1 KPa (for paper, optional)(flat foot)
Contact area: 50 mm2 (for film); 200 mm2 (for paper, optional)(flat foot)
Power AC 110~220V
Dimensions 450mm(L)*350mm(W)*400mm(H)
It complies with the following standards:
ASTM D374-99: Standard Test Methods for Thickness of Solid Electrical Insulation
ASTM D1777: Standard Test Method for Thickness of Textile Materials
ISO 4593: Plastics; Film and sheeting; Determination of thickness by mechanical scanning
ISO 534-2011: Paper and board -- Determination of thickness, density and specific volume
ISO 3034:2011: Corrugated fibreboard -- Determination of single sheet thickness
TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817
