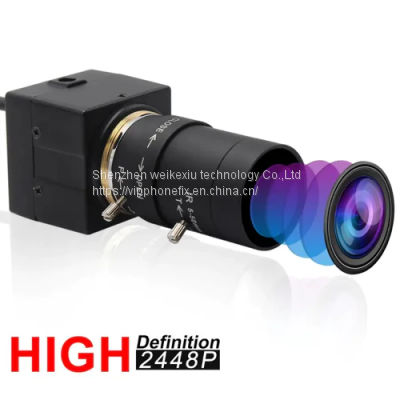

8MP USB Webcam Varifocal Lens High Speed Indurstrial Camera

FOB Price

USD $65 - $66 / Piece

1 Piece(Min.Order)

Supply Ability 10000000 Piece / Pieces per Month
Port shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	PHONEFIX	Place of Origin:	China	Model Number:	HD005
Theory:	Biological Microscope	Drawtube:	Monocular

Product Description

SONY IMX179 8MP USB Webcam CCTV Security Mini Camera, Varifocal Lens High Speed Indurstrial Machine Vision Camera for Android Linux Windows Mac

Package include:

1) 1PC 8mp usb camera with 2.8-12mm/ 5-50mm varifocal lens optional

2) 1PC 3m usb cable ( 1m/2m/5m cable optinal)

1.Features:

1) 8mp High resolution , suitable for document capture

2) Advanced Sony (1/3.2'' ) image sensor .

3) High quality 2.8-12mm/ 5-50 mm varifocal lens

4) Support OS: Win XP\Win7\Win8\Android\Linux , support raspberry pi

5) Compression : MJPEG&YUY2

2.Specification:

Module Size : 38mm * 38mm 32mm * 32mm

Temperature (Operation) : -20degree to 70 degree

Temperature (Stable Image): 0 degree to 60°degree

Camera Board Assembly technique : SMT (ROSH)

Focus : Manual

Object distance: 5CM-100M

Resolution : 3264(H) X 2448(V) 8Megapixel

interface :USB 2.0 High Speed

protocol : USB Video Class(UVC)

Power : USB bus power

Operating system request: Win XP\Win7\Win8\Android\Linux\Mac OS

Certifications : FCC and CE

Sensor Type: Sony (1/3.2'' )

Active Array Size : 3264X2448

Minimal illumination : 0.5Lux

Maximum Image Transfer Rate :

3264X2448 MJPG 15fps YUY2 2fps

2592X1944 MJPG 15fps YUY2 3fps

2048X1536 MJPG 20fps YUY2 3fps

1600X1200 MJPG 20fps YUY2 10fps

1280X960 MJPG 20fps YUY2 10fps

1024X768 MJPG 30fps YUY2 10fps

800X600 MJPG 30fps YUY2 30fps

640X480 MJPG 30fps YUY2 30fps

S/N Ratio : 44dB

Dynamic Range : 83.5dB

Shutter : Rolling shutter/ frame exposure

Lens Type :5-50mm varifocal lens

Lens Construction : 5G+IR

F/No : 1.8

BFL(Optical): 6.5mm

FOV: depends on different lens

IR Filter : 650±10nm

AGC/AEC/AWB/ABF : Auto

Output Formats : YUYV/MJPEG

IR CUT SUPPORT

Adjustable parameters Brightness Contrast Hue Saturation Sharpness Gamma White

Balance Exposure Focus

Package LQFN-40pin

USB Cable 1M(2M/3M/5M Optional)
