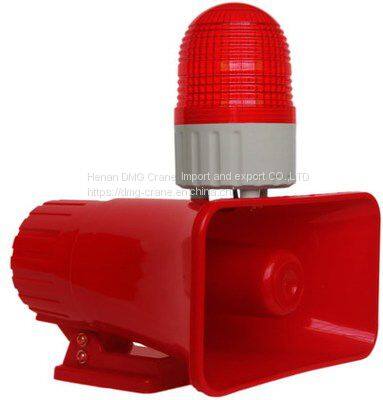

Help CenterCrane Beacon Siren BC-8 BC-8S BC-8Q BC-8T BC-8M
Related Products
-
Crane Beacon Siren BJ100/150 BC-809US$ 100 - 500MOQ: 1 Piece -
WORLDHOISTS Condition Monitoring Unit ISS-V05aUS$ 100 - 1000MOQ: 1 Piece
-
NUCLEON Condition Monitoring Unit HG-01US$ 100 - 1000MOQ: 1 Piece
-
Konecranes SWF Crane Beacon Siren BC-8 BC-8U BC-8QUS$ 100 - 300MOQ: 1 Piece
-
SWF/KONECRANES VERLINDE Beacon Siren BJ50 BJ100 BJ150US$ 100 - 300MOQ: 1 Piece
Application
BC-8 beacon siren special design for all kinds of hoisting machinery (tyre crane, crawler crane,overhead traveling cranes, etc.), harbors machinery(gantry cranes, bridge crane, etc), Plant (electrotechnical box ), metallurgies, chemical industry, coalmines and marine etc.
Major Functions & Features
•Enclosure employs die casting aluminum, providing good appearance, lightweight, corrosionresistance.
• The products are sealed with structural glue, to ensure the good waterproof and dustproof of the product.
• Super bright LEDs as lamp bulb, and the life is more than 100,000hrs.
• Lamp housing employs PC, providing good intensity, thermal stability and good finishing surface.
• Special intergrated core, providing strong electromagnetic anti-interference capability.
• Various tones and adjustable volume for selection.
Specifications
Supply voltage |
AC24V/AC36V/AC110V/AC220V/ AC380V/DC24V（Other voltage can be customized） |
||||
Frequency |
50Hz ~ 60Hz |
Power consumption |
6W |
||
Tone |
A/B/E/D/Y/L/F/Speech（Optional） |
Sound level |
106dB |
||
Color |
Red, Amber, Green（Optional） |
Warning type |
Visible and Audible |
||
Ambient temperature |
-30˚C ~ +70˚C |
IP Protection |
IP65 |
||
Humidity |
10% ~ 95% (No coagulation） |
Weight |
2.7Kg |
||
Material |
Base：Aluminum alloy Housing：PC |
||||
Installation and operation
• Verify whether the supply voltage complies with the rated voltage of siren.
• Horn mouth adown and should be vertical installed.
• Secure the lamp body on a smooth surface with enough mechanical strength using 4 Nos. M8 screws.
• Unfasten two screws fixed on the nameplate and then take the nameplate panel.
• Insert the power cable and control cable from the gland box and then connect them to the corresponding terminalsinside the lamp body.
• Verify whether the power cable and the control cable are well connected before power on.
• Rotate volume adjustable button to adjust volume.
Model selection
Model |
Common Tone |
Volume adjustable |
Others |
BC-8 |
D |
/ |
/ |
BC-8X |
D |
Adjustable |
/ |
BC-8Q |
A/B |
Adjustable |
/ |
BC-8U |
A/B |
/ |
/ |
BC-8S |
D/B |
/ |
/ |
BC-8Y |
D/Y |
/ |
/ |
BC-8H |
D/A |
/ |
/ |
BC-8K |
D/E |
/ |
/ |
BC-8C |
B/E |
Adjustable |
/ |
BC-8M |
D |
Adjustable |
With external switch |
BC-8T |
D |
Adjustable |
Visible and Audible warning controlled separated |
BC-8P |
D |
/ |
Strobe |
