FIange Facer -FI24

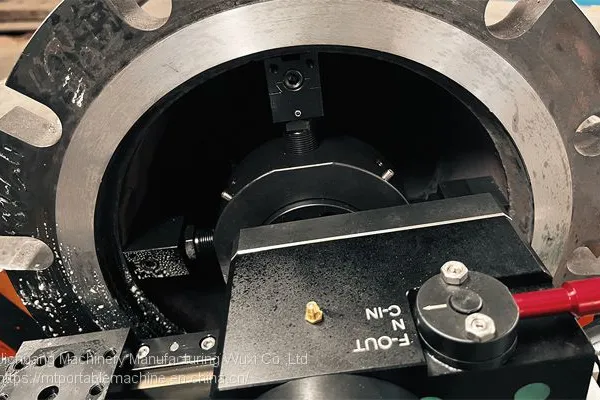

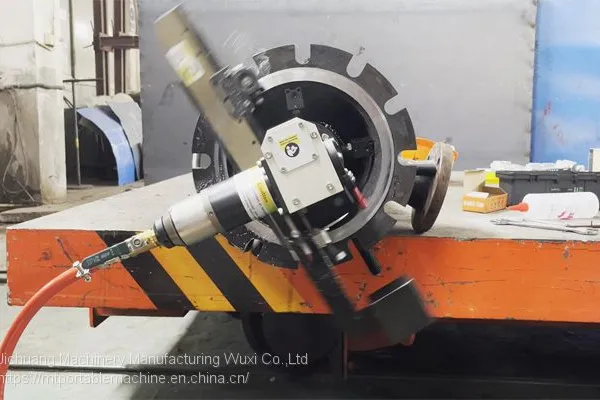

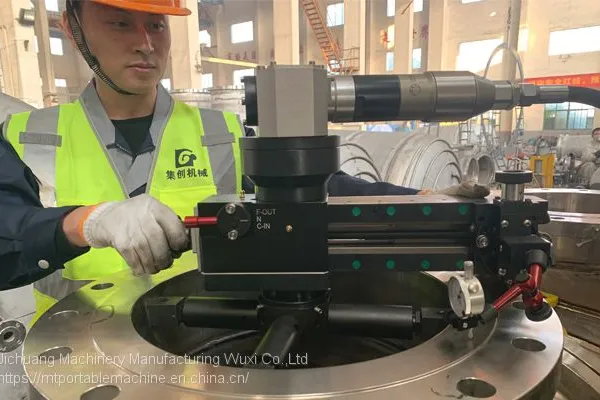

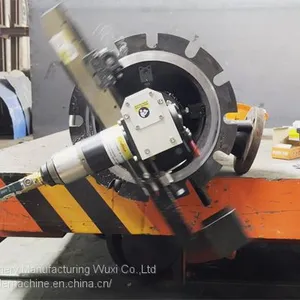

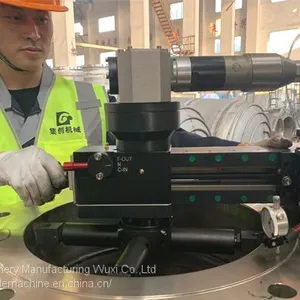

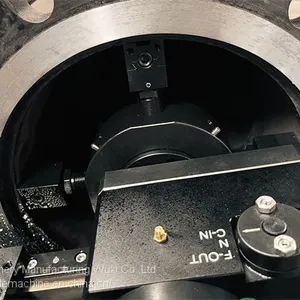

The Flange Facer FI24 is rugged, compact and ideal for quickly reconditioning rusty, scarred or worn flange gasket seats to like-new condition in minutes. Internally mounted, this machine has a working range of 80 mm (3.15") to 610 mm (24") and features 2 continuous feed rates. The mounting base come in three sizes and have micro-adjustable jaws to help quickly align the base during set-up. Air motor and Servo motor are optional. The machine can machine standard FF and RF flange facings, RTJ and other V grooves, weld reparations, etc. The FI24 Flange Facer are suitable for the oil and gas industry, power plants, chemical plants, oil rigs and many others. They are prepared to implement applications complying with ASME standards.

Key Features:

• High-precision NSK bearings and "V" linear guide make the machine precise and robust

• Modular designed, compact and portable

• Internally mounted and operates in any orientation

• Suitable for various flange types: flat face, raised face, ring type joints (RTJ), tongue & groove, lens ring, compact flanges

• Air motor and servo motor are optional

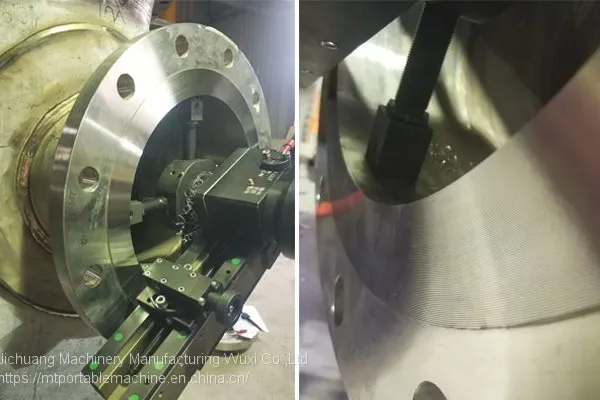

• 2 continuous groove facing feeds for a gramophone finish (ASME Standard)

• 3 different sized quick set independent bases for improved on-site operation

• 360° Swivel tool post for groove details

• Sturdy storage
