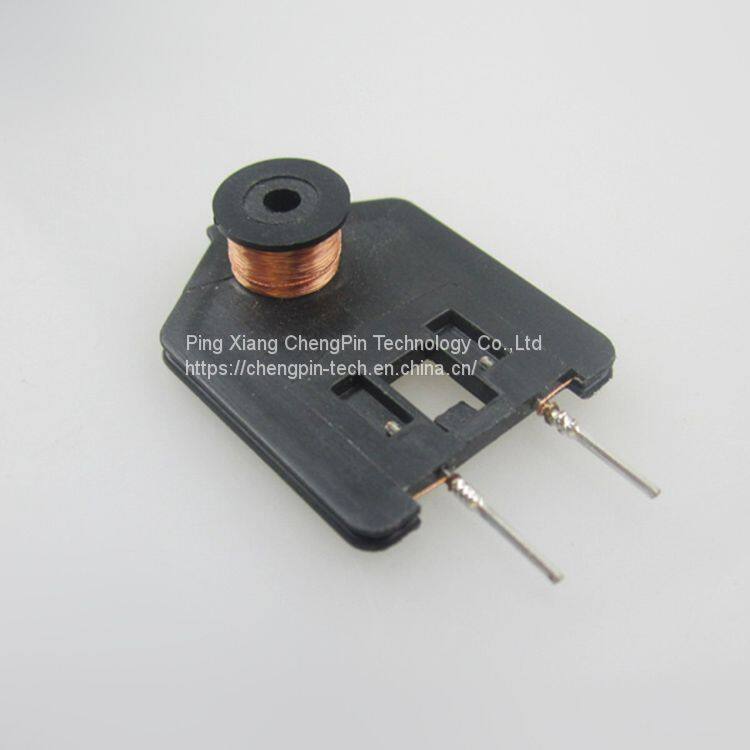

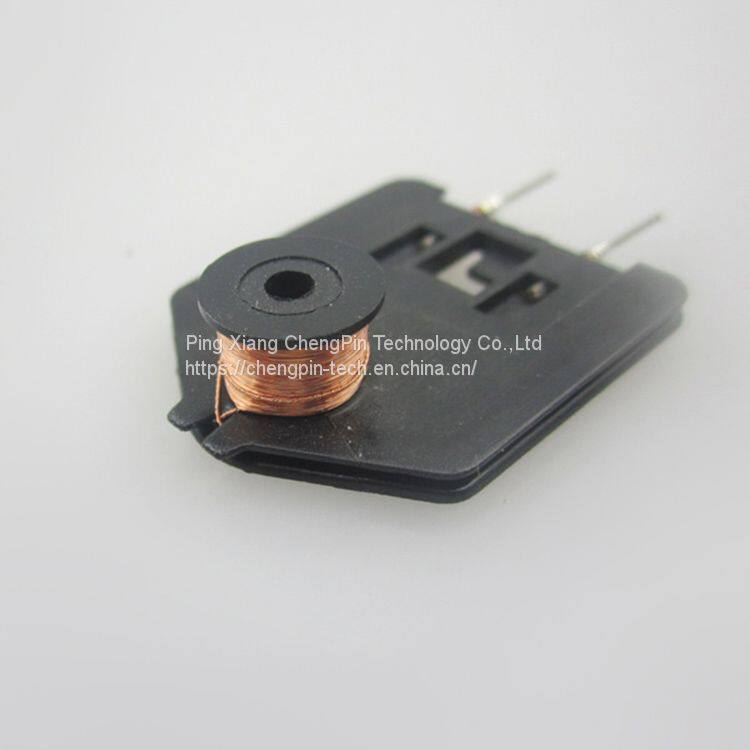

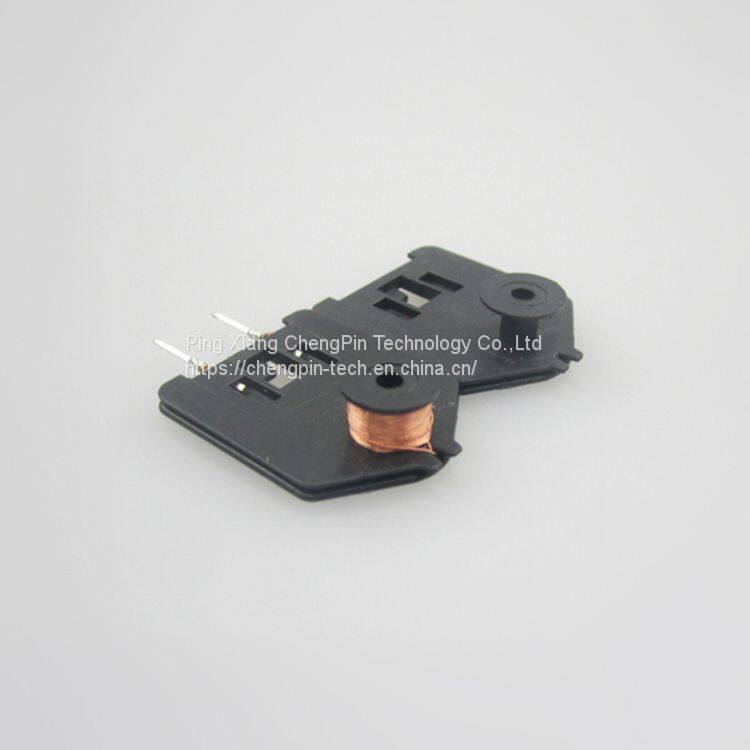

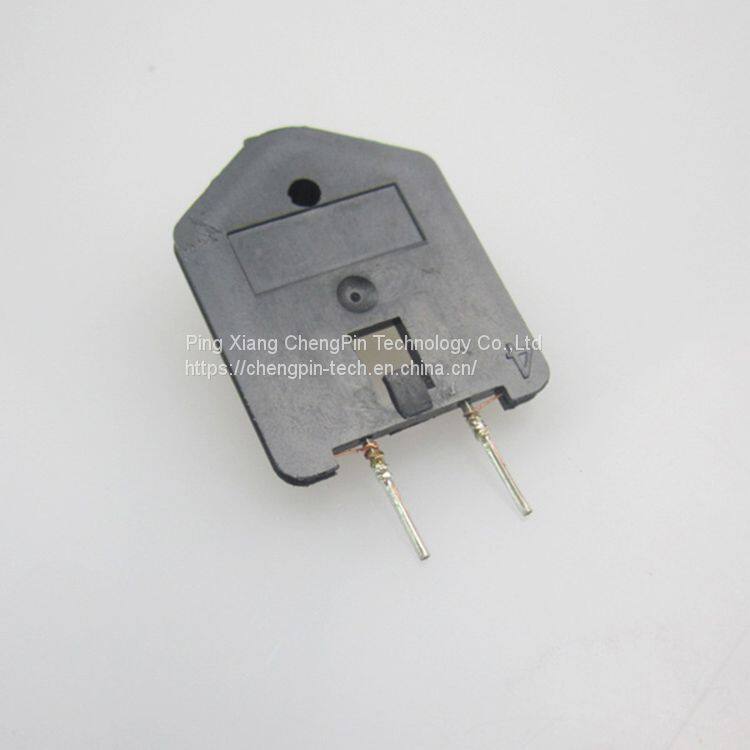

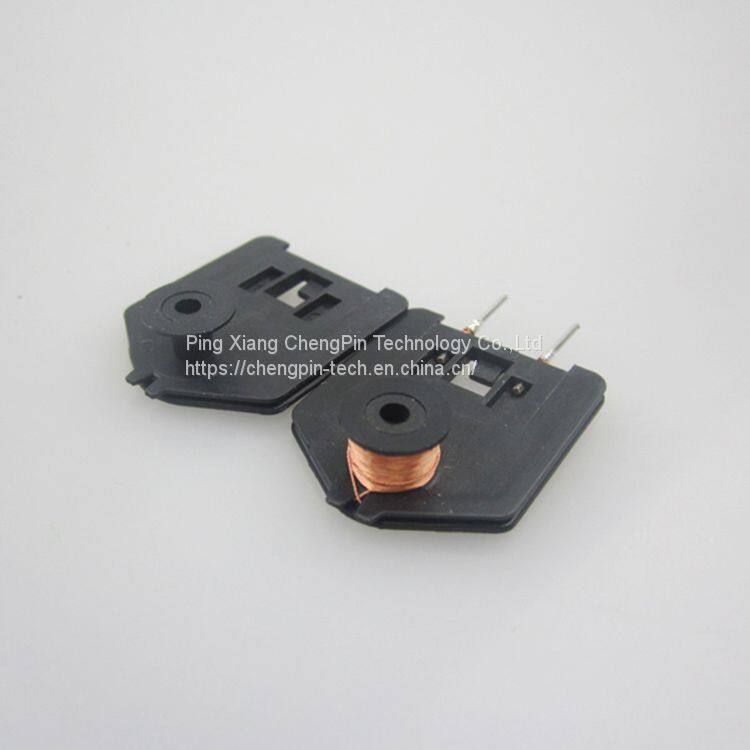

Professional Manufacture for Bobbin Coil Winding Assemblying Solution

Professional Manufacture for Bobbin Coil Winding Assemblying Solution

Welcome your own design with 3D drawing/Samples etc

ChengPin Factory offers precision layered or random wound coils engineered to meet your design requirements.

Our custom engineered coils use high quality, bondable magnet wire to reach the electrical specs you need and keep your design as small as possible.

Bobbin wound coils are available in standard or custom bobbin sizes, in a range of plastic and injection molded materials.

Choices are available in magnet wire sizes, insulation, pins or displacement terminals and other components.

Brand: Golden Eagle

Coil: You can customized the below specificaiton for Coil

1:Coil Dimension of coil( wire size from 0.0119-3mm）(Inner,outer size,thickness,shape)

2:Coil Turns,Customized

3:Coil inductance,  customized

4:Coil resistance./ customized

5:coil leading wire,customized

6:winding direction wire winding way etc

Bobbin Specificaiton:

Material: Plastic. PET,PP Alumumiu,Ferrite Rod,,etc customized as  your needs.

Bobbin Size and Shape:Customized as per your drawing/samples

Minimum Size of plastic bobbin: 3MM

Assembly: Assembly the coil+bobbin+3M Band/Ferrite/Rod Core+tube etc

Provide one-step solution service

Welcome your OEM,ODM

Our advantage

Products assembly by air core coil+ plastic bobbin.

We used the automatic machine for wire winding.

We have our own plastic CNC machine for your bobbin customized

All is controlled by ourself from coil winding-pin assembly-bobbin-assembly

From cost saving and quality and lead time are all under strict control by ourself

While others are still source different parts from others which cost, quality and lead time etc are all effect in some degree.

For some of you urgent order, we can input the material with the same day and get a partial shipment fo you.

All the size tolerance we can controlled within 0.01mm, inductance ±2.5%

Raw material of wire copper came from Elecktrisola, Totoku,Daikoku etc high quality one.

All the products will do the full inspection with our laboratory device

Our Bobbin Coil suitable spread wide used on various place

Sensor,vibrate plate /vibrating disk, electric household, test equipment, mountain bike, smart meter RFID reader,wireless mouse,beauty meter, smart door clock, power,cellphone, headset,electronic toothbrush, waving machine, switches, etc

Intruduction

Dongguan Golden Eagle Coil Group(PingXiang ChengPin Technology). is a professional large-scale manufacturer of all types of  coils, we have professional team work. Our factory was established in 2003, we have many years experience in coil industry.
Belows are our advantages better than others factory:
1. Factory Item, sample free
2. More than 20 years all kinds of coil experience
3. Best delivery time and excellent service
4. Pass ISO 9001:2008
5. Fast response and best delivery time
6. More than 1000workers
7. 10000 m2 factory.three factories both in Guangdong &Jiangxi province
8. Professinal trade team work.
Our main product include low Self-bonding Coil, Inductor Coil, toy Coil , RFID antenna coil, Wireless Charging Coil, Sensor Coil, coil accessories, motor coil, card coil, bobbin coil and etc. All extensively used in speakers, smart cards, electronic toy and gifts, earphones, mobile phone, computer periphera, motors, generator, fefrigeratory, electric equipments, and some ohter electronic equipments.
We are the professional manufactory of the coils, and we have more than20 years experience for it. Available in various dimensions, wide inductance ranged types, high frequiency or low frequency, single or multilayer coil are available applications, safety and stability.
We have a professional IPQC team:
Isual mechanical inspection ---incoming inspect ---production assembly---first parts inspect--- 100% testing ---   IPQC check ---outgoing inspection---carton sealing

Welcome to contact with us and send the inquiry.

We will back to you ASAP.
