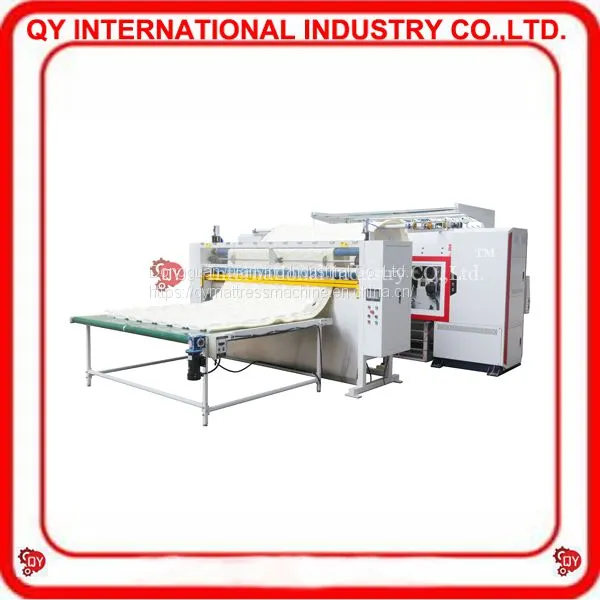

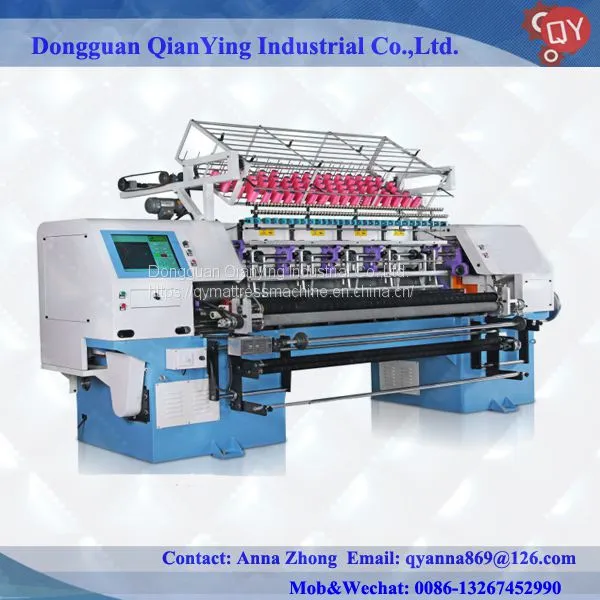

QYCS-96-3-6 Computerized Chain Stitch Multi-needle Quilting Machine
It is widely used for mattress panel, mattress pads, bedspreads, comforters, bedding, blankets, seats covers, decoration, and more.
Technical parameters:
| Model | QYCS-96-3-6 |
| Dimension(L*W*H) | 5300*1600*2150mm |
| Quilting Width | 2450mm |
| Needle Rows | 3 |
| Space between needle rows | 3”+2”, 3”+3” |
| Space between needle | 25.4mm |
| X-axis movement displacement | 300mm(or above) |
| Thickness of quilting | equal or less than 80mm |
| Stitch length | 1-12mm |
| Speed of operation | 60-230(m/hour) |
| Model of needle | 24/180,23/160 ,22/140, 21/130 |
| Quilting speed | 1200(r/min) |
| Voltage | 380V/50HZ 220V/60HZ |
| Total Power | 8KW |
| Gross Weight | 5300KG |
Main Features:
1. New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2. 360°Multi-span and independent patterns, automatic thread trimming function.
3. Self-developed system, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability.
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function.
6. Adopt international advanced slice thread trimming function, effectively reduce the probability thread jump, more stable.
7. Strong function of pattern-combining and multi-span( Tack&Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
8. High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
9. Infrared safety protection and Auto-stop sensors detection function.
