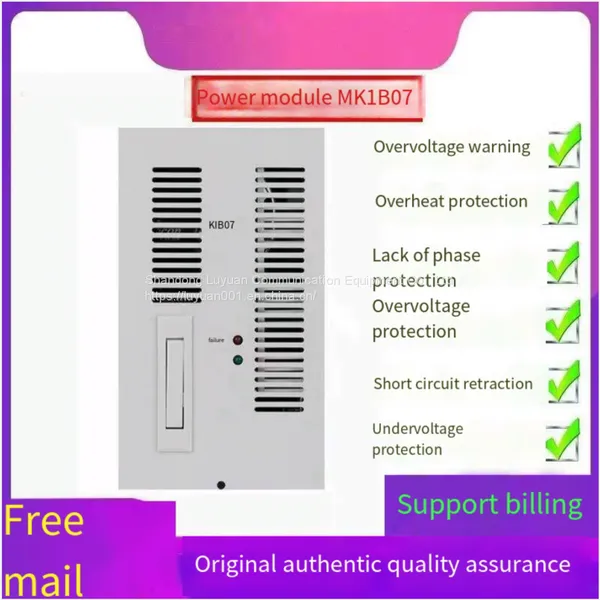

Help CenterMK1B07 MK1A10 High Frequency Power Module Charger Module K1B07
Related Products
-
Dc Screen Main Monitoring Module PM4S Touch Monitoring System Seven-inch Screen New OriginalUS$ 740 - 770MOQ: 1 Piece -
Power Charging Module High Frequency Rectifier Switch All Original Delta KS2B02LUS$ 350 - 370MOQ: 1 Piece
-
HXT-PSM10 DC Panel Battery Monitoring Module HXT-PSM10A-11US$ 780 - 810MOQ: 1 Piece
-
New RSP-M10A/220V DC Screen Charging Module Power Rectifier Module Power SupplyUS$ 430 - 450MOQ: 1 Piece
-
Ultracun JKQ-3000B DC Panel Monitoring Module DC Panel Centralized Monitoring ModuleUS$ 1800 - 1950MOQ: 1 Piece
System parameters:
1. Ac input
1, three-phase input rated voltage: 380V, 50HZ
2, voltage variation range: 380V±20%
3. Frequency variation range: 50HZ±10%
Two, DC output
1, output rating: 7A/220V (MK1B07), 10A/220V (MK1B10B)
10A/110V (MK1A10), 15A/220V (MK1A15B)
2, voltage regulation range: 180V-286V (MK1B0790V-143V (MK1A10, MK1A15B)
3, output current limiting range: 5%-105%× rated current
4, pressure stability accuracy: ≤0.5%
5, steady flow accuracy: ≤0.5%
6, ripple coefficient: ≤0.5%
7, conversion efficiency: ≥95% (full load output)
8, dynamic response: when 20% load jump to 80% load recovery time ≤200 irradiance, overshoot ≤±2%
9. Audible noise: ≤55dB
10, working environment temperature: -5℃ -- +45℃
Three, insulation
1, insulation resistance: DC part, system part and ground to apply 500V/50HZ AC voltage, insulation resistance >2MΩ.
2, insulation strength: AC part and DC part and the case, DC part and the case between the application of 50HZ 2KV AC voltage, one minute no breakdown, no flashover.
Four, control function
1, remote control: on/off, floating charge
2, remote adjustment: output voltage, output current limiting are continuously adjustable
4, remote message: on/off state, working state
Five, structural appearance
1, module size: (width × height) 126.5×221.5 (panel size), (width × height × depth) 110×198×310 (box size)
2. Module weight: 6.1Kg
