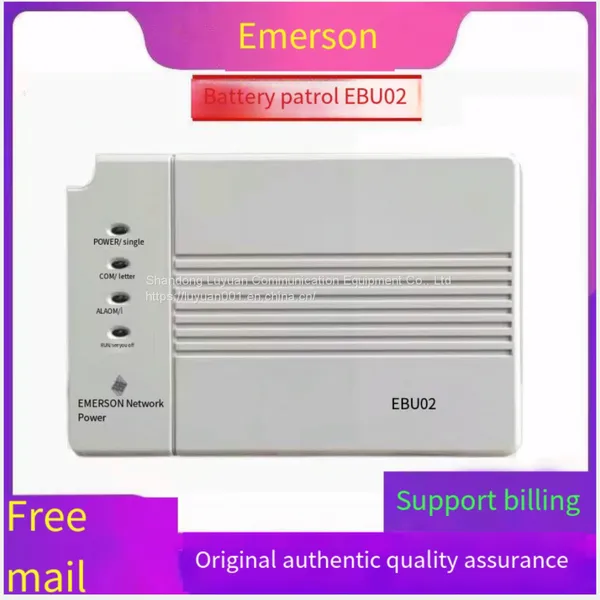

Emerson New Original EBU02 Battery Monitor EBU01 DC Panel Charging Module

1. The EBU01 detects the temperature of two channels, the current of one channel, and the voltage of 24 batteries. EBU02 Detects the voltage of 19 batteries.

2. The EBU01/EBU02 can be automatically divided into three levels of 2V, 6V, and 12V according to the voltage of a single battery to improve the measurement accuracy.

3. When the battery monitor is powered on and the voltage of any measuring channel is greater than 36V, the battery monitor closes all measuring channels and stops the test. The alarm indicator blinks.

A power outage must be eliminated to resume the test.

4. When the voltage of any measuring channel is greater than or equal to 16.7V, the battery monitor closes all measuring channels, stops measuring, and automatically recovers

If the detected voltage is still greater than 16.7V after reset, repeat the above process. During the reset, the alarm light blinks. After the overvoltage is eliminated, the battery monitor can

Return to normal work by itself.

Parameter Description Emerson battery monitor EBU01/EBU02

Parameter Name Parameter Range and Error Measurement Error remarks

The input voltage ranges from 80 to 320Vdc

Power consumption <15W

Working environment temperature -10 ~ +50℃

Operating environment relative humidity 10%-90% RH

Atmospheric pressure 70 ~ 106kPa

Mechanical dimensions (W)x(H)x(D) 135mm x 90mm x 75mm

It weighs about 2kg

Communication baud rate 9600bps

Total battery voltage 80 to 320V ± 0.3% The value is calculated by adding the voltage of each battery

The battery current ranges from -4 to 4V. The Hall sensor ranges from 3000 to 3000A ± 0.5%

Battery temperature: -25 to 75 ° C ±1 ° C

Voltage of 1 to 24 batteries 0.100 to 16.500V ± 0.2% Applicable to EBU01

Voltage of 1 to 19 batteries 0.100 to 16.500V ± 0.2% Applicable to EBU02
