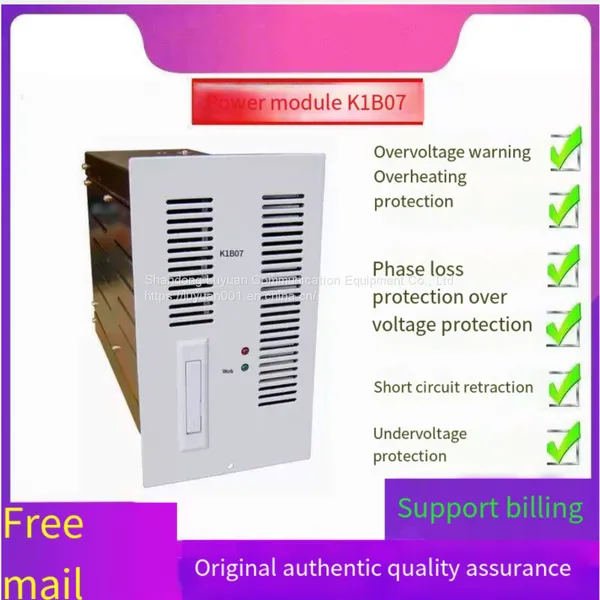

Dc Panel Charging Power Module K1B07 K1A10 High-frequency Rectifier Module

System parameters:

1. Ac input

1, three-phase input rated voltage: 380V, 50HZ

2, voltage variation range: 380V±20%

3. Frequency variation range: 50HZ±10%

Two, DC output

1, output rating: 7A/220V (K1B07) 10A/110V (K1A10)

2, voltage regulation range: 180V-286V (K1B07) 90V-143V (K1A10)

3, output current limiting range: 5%-105%× rated current

4, pressure stability accuracy: ≤0.5%

5, steady flow accuracy: ≤0.5%

6, ripple coefficient: ≤0.5%

7, conversion efficiency: ≥95% (full load output)

8, dynamic response: when 20% load jump to 80% load recovery time ≤200 irradiance, overshoot ≤±2%

9. Audible noise: ≤55dB

10, working environment temperature: -5℃ -- +45℃

Three, insulation

1, insulation resistance: DC part, system part and ground to apply 500V/50HZ AC voltage, insulation resistance >2MΩ.

2, insulation strength: AC part and DC part and the case, DC part and the case between the application of 50HZ 2KV AC voltage, one minute no breakdown, no flashover.

Four, control function

1, remote control: on/off, floating charge

2, remote adjustment: output voltage, output current limiting are continuously adjustable

4, remote message: on/off state, working state

Five, structural appearance

1, module size: (width × height) 126.5×221.5 (panel size), (width × height × depth) 110×198×310 (box size)

2. Module weight: 6.1Kg
