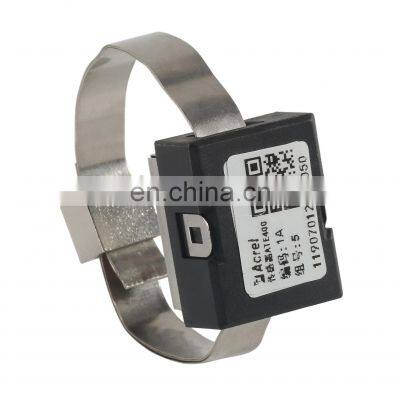

ATE400 Ring Network Cabinet 9-point Temperature Measurement Switch Cabinet Wireless Temperature Sensor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CT Induction Power-taking Wireless Temperature Sensor ATE400 Switch Cabinet Electrical Contact Temperature MeasurementNegotiableMOQ: 1 -
High Voltage Cabinet Busbar Wireless Temperature Sensor ATE400NegotiableMOQ: 1
-
Passive Wireless Temperature Sensor ATE400 Circuit Breaker Dynamic/Static Contact Temperature Range -50C-125CNegotiableMOQ: 1
-
The Wireless Temperature Measurement of Electrical Contacts in the High and Low Voltage Cabinet ATE400NegotiableMOQ: 1
-
ATE400 Wireless Temperature Measurement Sensor Temperature Measurement System Electrical Contact Switch Temperature MeasurementNegotiableMOQ: 1
Product Description
Characteristic
ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears. The wireless temperature sensors can be installed at any heating point in switchgears, the device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data. In addition, it can be transmitted to display device or remote intelligent monitoring system.
● Wireless frequency: 470MHz; ● Dimension: 25.82*20.42*12.8mm
● Wireless transmission distance: 150m; ● Installation: Belt
● Fast sampling frequency: 15s; ● Accuracy: ±1℃
● CT-powered, starting current≥5A ● Temperature measuring range, -40℃~+125℃.
● Wireless transmission distance: 150m; ● Installation: Belt
● Fast sampling frequency: 15s; ● Accuracy: ±1℃
● CT-powered, starting current≥5A ● Temperature measuring range, -40℃~+125℃.

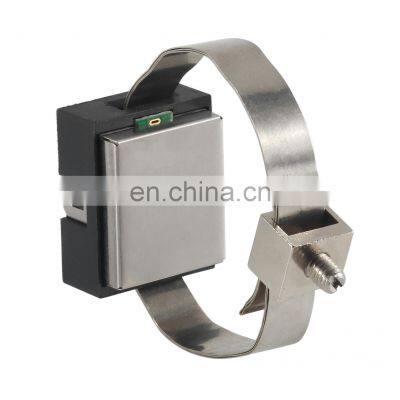

Firstly, take 2 pieces of alloy chips through the mounting hole of metal hasp, meanwhile fold the alloy
chips and fix the metal hasp in the middle of alloy chips. Secondly, take the folded alloy chips through one
silicone gasket, the core of ATE400 and another silicone gasket in turn.Thirdly, circle the whole alloy chips
around the mounting position and tension the alloy chips, then tighten the screw on the metal hasp. Finally,
subtract the excess alloy chips. The complete installation process is shown in Figures 1 to 4.
Specification
More Type
Type |
Function |
FOB Shanghai(USD) |
||||
ATE100 |
Bolted wireless temperature sensor,suitable for the outlet of bus bar and the overlap of cable |
42 |
||||
ATE200 |
Belt wireless temperature sensor,installed in circuit breaker contacts and bus bar |
42 |
||||
ATE300 |
Passive wireless temperature sensor |
42 |
||||
ATE400 |
Tied type passive wireless temperature sensor |
42 |
||||
ATE300B |
Bolted type wireless temperature |
42 |
||||
Typical connection
