DO / DI function wireless temperature and alarm controller device temperature monitoring data display
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Acrel 92*92mm Panel Mounted ATE sensor wireless digital temperature controller unit for incubator
-
high precision Panel Mounted digital temperature controller thermostat With Interface RS485 for power distribution cabinet
-
Acrel 8 PT100 measurement electronic temperature temperature controller instruments
-
1 RS485 serial communication digital thermostat temperature controller Relay alarm output
-
ARTM 8 Channels LED display digital thermostat temperature controller instruments RS485 Communication
-
High precision 2 Alarm relays Output rs485 temperature measuring instruments controller measure a for power distribution cabinet
Product Description
Products Description
● Receive&Display Temperature Data: From up to 60 ATE Temperature Sensors
● Communication Methods: GFSK (with ATE Temperature Sensor)
● Communication Distance: 150m in open Area & 15m in Building
● Extra RS485 Communication: MODBUS-RTU
● DO/DI Function: 2 Over-temp Alarm Relay Outputs & 4 Digital Inputs
● Dimension: 96*82*96mm (L*W*H)
● Installation: Panel Mounted (Cut-out Dimension--92*92mm)
● Electric Parameter Meausurement: U,I,P,Q,F,kWh,kVarh (Optional)
● Communication Methods: GFSK (with ATE Temperature Sensor)
● Communication Distance: 150m in open Area & 15m in Building
● Extra RS485 Communication: MODBUS-RTU
● DO/DI Function: 2 Over-temp Alarm Relay Outputs & 4 Digital Inputs
● Dimension: 96*82*96mm (L*W*H)
● Installation: Panel Mounted (Cut-out Dimension--92*92mm)
● Electric Parameter Meausurement: U,I,P,Q,F,kWh,kVarh (Optional)
ARTM-Pn wireless temperature measuring equipment has been developed in compliance with specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.
The wireless temperature sensors can be installed at any heating point in switchgears, the device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data and displays such data on ARTM-Pn locally. In addition, it can be networked via the RS485 port for remote intelligent monitoring.

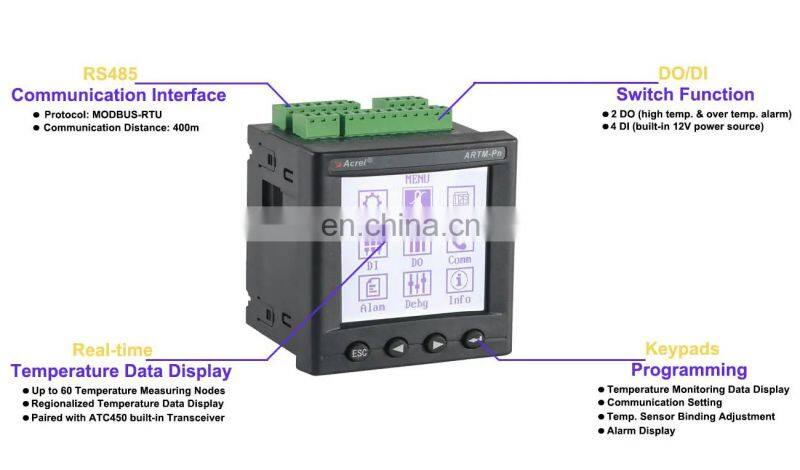

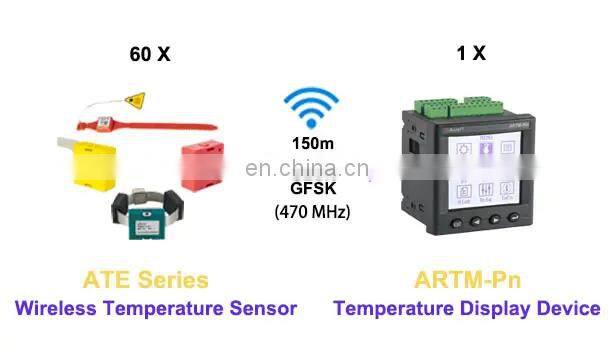

Real-time Temperature Monitoring Data Display
● Display Data of up to 60 ATE Series Temperature Sensors
● Paired with ATC450 built-in Transceiver
● Regionalized Temperature Data Display

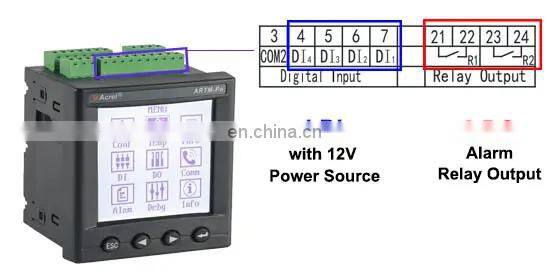

DO/DI Function
● 2 DO (high temperature alarm& over temperature alarm)
● 4 DI (built-in 12V power source)
Keypads for Programming
●Temperature Monitoring Data Display
● Parameter Setting
● Temperature Sensors Binding Adjustment
● Alarm Display
Optional Electric Parameters Measuring Function
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● F (Frequency)
Technical Parameter
Functions | ARTM-Pn |

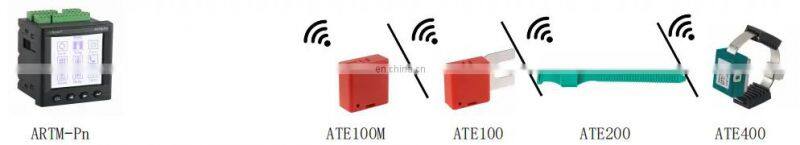

Sensor | ATE100, ATE200, ATE300B, ATE300, ATE400 |
Temperature precision | ±2℃ |
Sensor number | 60 |
Auxiliary power upply | AC 85~265V,DC 100~300V |
Power consumption | 8W |
Protocol | Modbus-RTU |
Rear port | RS485 |
Baud rate(bps) | 2400,4800,9600,19200 |
Operating temperature | -10℃~55℃ |
Relative humidity | ≤95% |
Atmospheric pressure | 86kPa~106kPa |
Average work time without stoppage | ≥50000 hour |

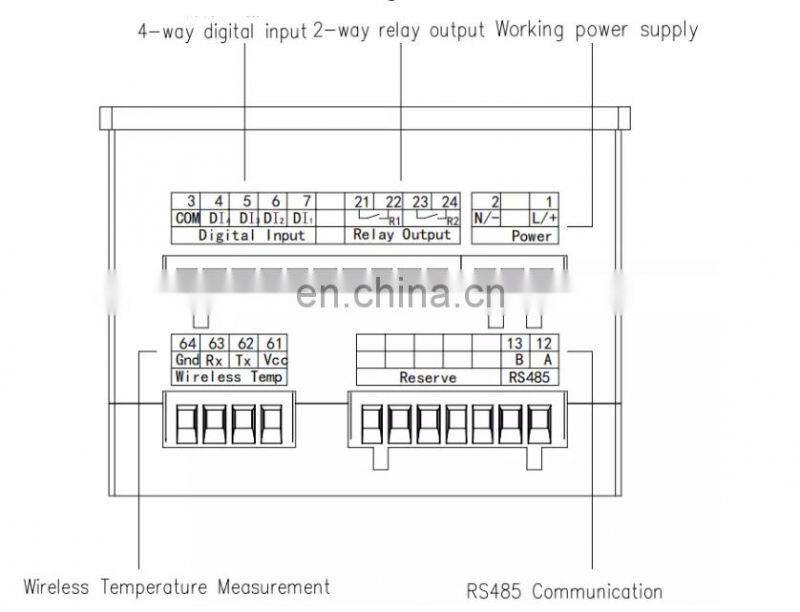

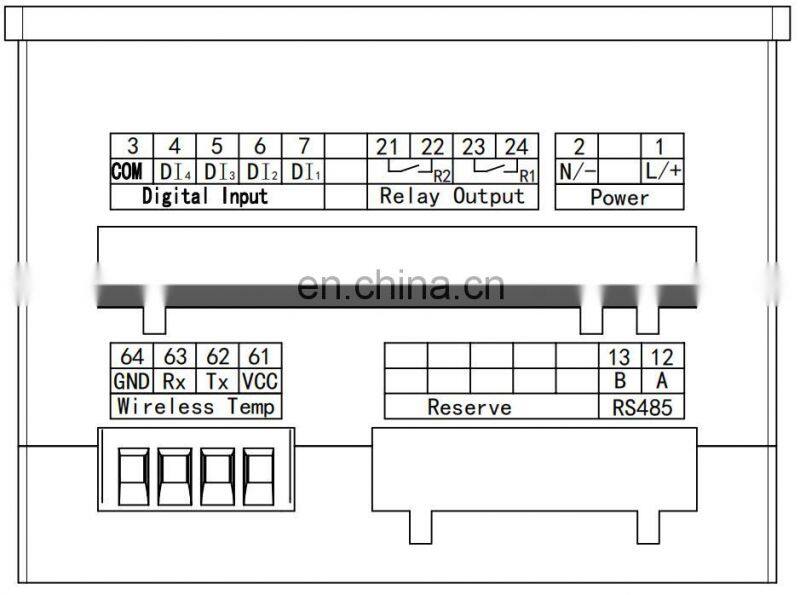

Wiring Illustration

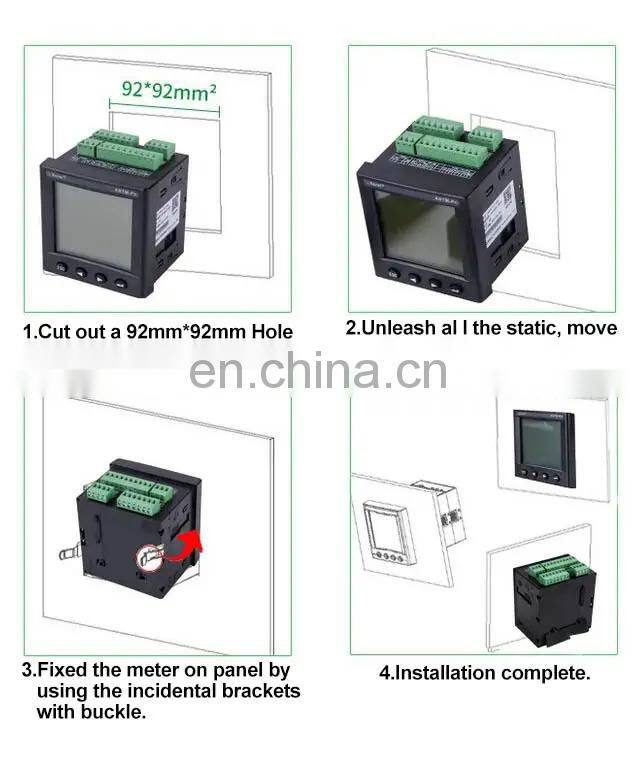

Dimension & Installation

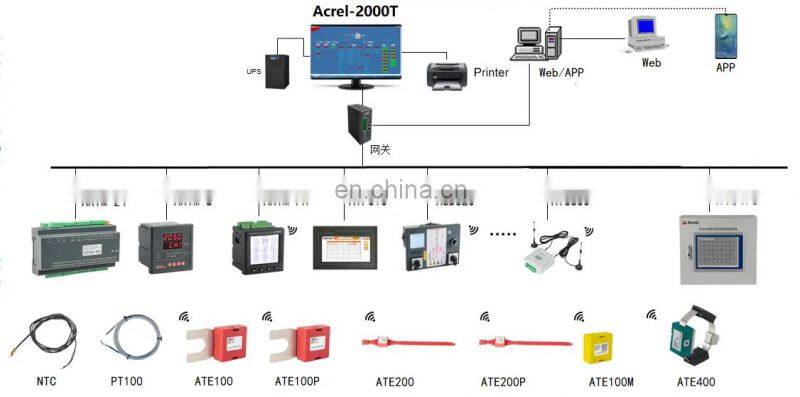

Solution Structure
