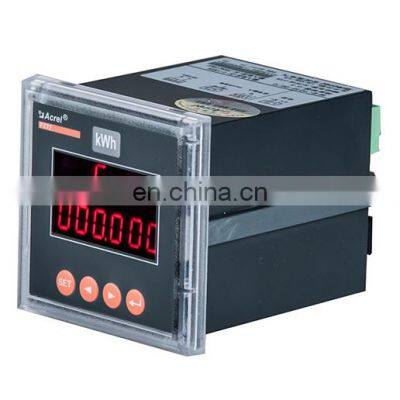

Multifunction DC Power Meter LED Digital dc Volt Amp Kwh Panel Meter PZ72-DE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital DC Voltmeter Measuring DC0-1000V AMC72-DV/M Panel Voltage Meter 4-20mA Analog OutputNegotiableMOQ: 1 -
Digital dc Current Meter AMC72-DI Programmable DC Ammeter With Low Factory PriceNegotiableMOQ: 1
-
WiFi MQTT Remote Control Iot Based Smart Energy Meter 3 Phase Electricity MeterNegotiableMOQ: 1
-
Wireless Lectricity Meter 3 Phase Smart Energy Meter MQTT Protocal Power Meter Based Electricity Energy MeterNegotiableMOQ: 1
-
0-1000V 1000A/5V Power Supply 15V dc Energy Meter for Solar System Wattmeter dcNegotiableMOQ: 1
PZ72-DE
| Intelligent PZ series DC Power Analyzer | ||
|
* DC Current: external shunt or hall element(range programmable) * DC Voltage: DC0-1000V * LED display
|
||
INFORMATION
| Characteristic |
| Display : LED display U,I,+/-P,+/-kWh measure |
| Rated U and I : Voltage input:DC0-1000V;Current input:75mV,0-20mA,0-5V |
| Option function/C: RS485(Modbus-RTU) Communication |
| Option function/K: Switching 2DI/2DO |

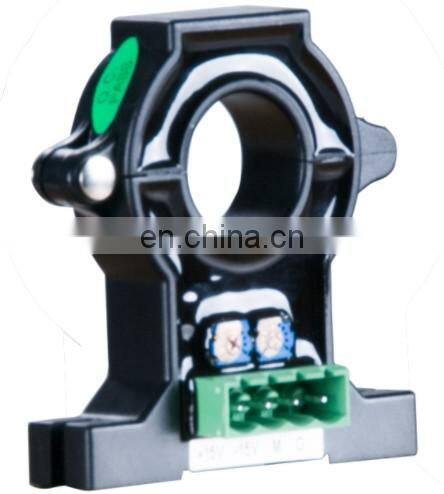

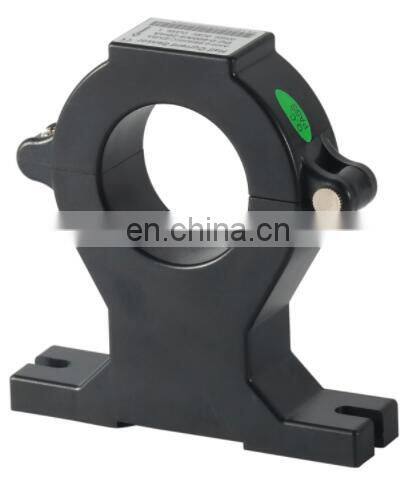

| Option function/V: ±12V to access hall sensor |
| LCD diaplay |
| Function |
|
Accuracy U,I,kWh: Class 0.5 Auxiliary power supply AC 85V-265V,DC110-350V,DC36-48V DC current Shunt: output 75mV Hall sensor: output 0-20mA,0-5V Consumption
|
|
|
Installation
Pannel mounted
Dimension(L*W*H)
Pannel size(L×W):75*75mm
Cutout(L×W):67*67mm Housing(L×W×H):67*67*98mm Relay
DC 30V/2A, AC 250V/2A
|

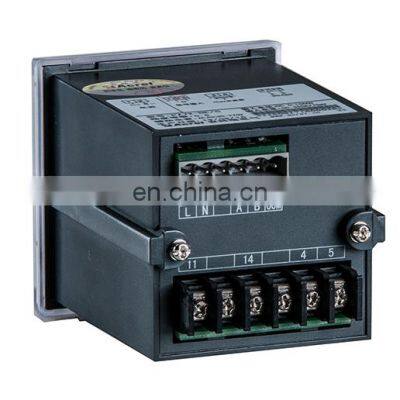

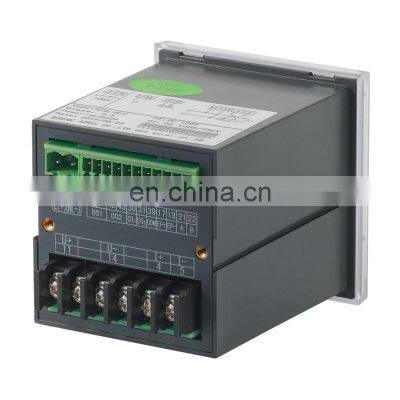

| Wiring |

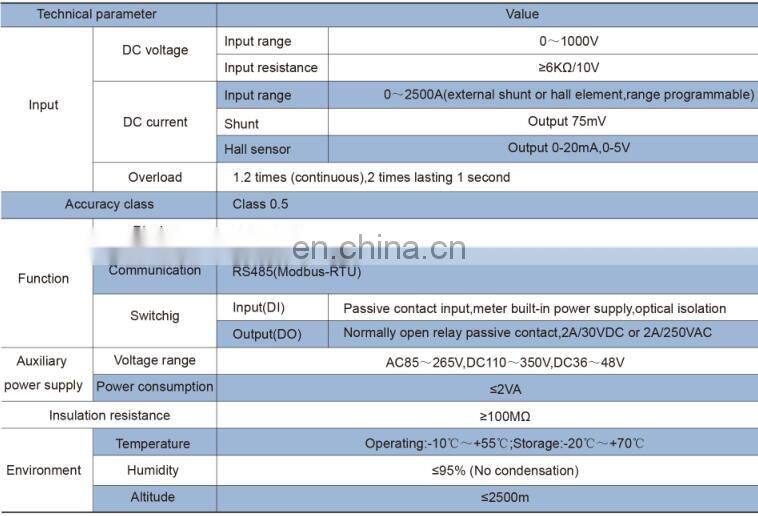

PARAMETER
