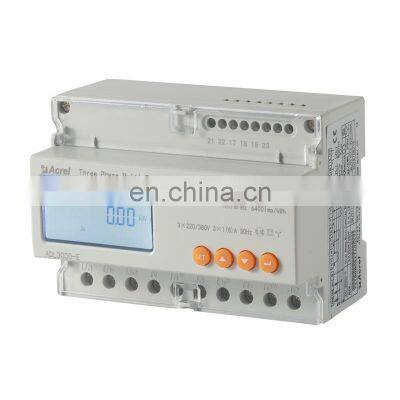

DTSD1352 Positive-Reverse Bidirectional Metering Rail Type Installation RS485 Remote Communication Electric Energy Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Photovoltaic Energy Storage Forward-reverse Electric Energy Meter DTSD1352 Protocol Modbus-rtuNegotiableMOQ: 1 -
The Electric Energy Meter DTSD1352 is Used With the Energy Consumption System/rail InstallationNegotiableMOQ: 1
-
DTSD1352 Three-phase Four-wire Multi-function Watt-hour Meter, Peak and Valley Metering of Electric Energy, RS485/RTU/645 ProtocNegotiableMOQ: 1
-
Acrel DTSD1352 3 Phase Electricity Energy Meter CE ApprovedNegotiableMOQ: 1
-
IEC62053-21 Stadard Meter Acrel 10(60)A Single Phase Kwh Meter 1 Module Device ADL10-E/C Din Rail KWH Watt Hour Energy MeterNegotiableMOQ: 1

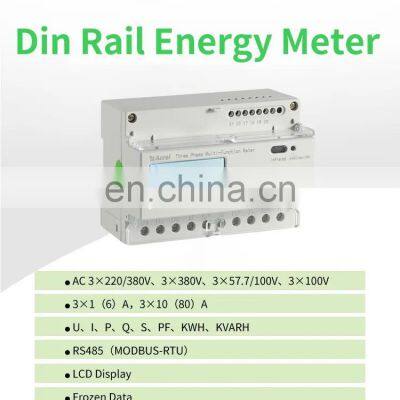

DTSD1352 Three Phase Energy Meter
Product Description
Characteristic
Rated U : AC3×220V/380V,3×380V,3×57.7V/100V,3×100V
Rated I : 3×1(6)A,3×10(80)A
Display : LCD display U,I,P,Q,S,PF,kWh,kvarh

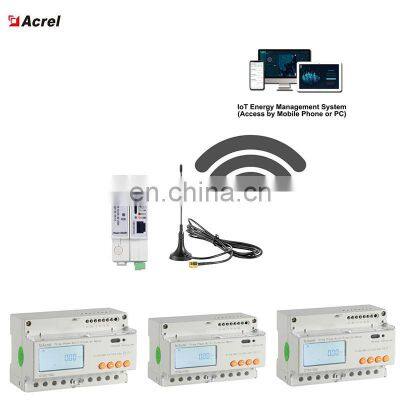

Option function/C: RS485,MODBUS-RTU
Option function/F : Multi tariff energies
Option function/K : 1DI/1DO
Option function/H: 2-31st harmonic
Option function/T: three channels temperature measurement(NTC)
Accuracy
kWh: Class 0.5S,kVarh:Class 2Frequency
50/60HZ(Optional),range: 45~65HZ
Pulse output
Pulse output kWh/kvarh
Consumption
<10VA(Single phase)
Dimension(L*W*H): 126.5*88*69.5mm
Switch relay:
Magnetic latching relay(ADL3000-E build-in)
Clock: ≤0.5S / per day
Starting current: 0.1%Ib
Specification
Specification |
|||||||
Reference voltage |
3×100V、 3×380V、3×57.7/100V、 3×220/380V |
||||||
Consumption
|
＜10VA |
||||||
Impedance |
>2MΩ |
||||||
Accuracy |
Error±0.2% |
||||||
Current |
Reference current |
3×1(6)A，3×1(6)A(Outlay transformer)， 3×10(80)A |
|||||
Accuracy class |
Error±0.2% |
||||||
Consumption |
＜1VA |
||||||
Power |
Active, reactive, apparent power, error±0.5℅ |
||||||
Display |
LCD |
||||||
Frequency |
45～65Hz，Error±0.2% |
||||||
Option Function |
Communication |
RS485, Modbus-RTU compatible protocol |
|||||
Multi tariff energies |
Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates |
||||||
Harmonic |
2-31st harmonic. |
||||||
Switching |
1 Switching output |
||||||
1 optocoupler input |
|||||||
Operation Temperature |
-10 ºC~+55 ºC |
||||||
Storage Temperature |
-25 ºC ~+70 ºC |
||||||
Altitude |
≤ 2500m |
||||||
Relative humidity |
≤93%RH, no condensation, without corrosive gas |
||||||
Product Selection
Model |
Function |
FOB Sanghai USD |
||||
DTSD1352 |
U I P Q S PF Measurement. Voltage: 380V Current: 1(6)A or 10(80)A |
70 |
||||
DTSD1352-C |
U I P Q S PF Measurement. Voltage: 380V Current: 1(6)A or 10(80)A RS485 Modbus-RTU protocol
|
76.3 |
||||
U I P Q S PF Measurement. Voltage: 380V Current: 1(6)A or 10(80)A RS485 Modbus-RTU protocol
Multi tariff and demand event record
|
82.6
|
|||||
Dimension
Installation
Wiring
Three phase four lines connect via CT
Three phase four lines direct connect
Three phase three lines connect via CT
Three phase three lines direct connect
Three phase four lines, 3CT
Three phase three lines, 2CT
