Smart meter ADL200 with RS485 communication supports remote meter reading and suitable for energy consumption data monitoring
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
ADL200 smart meter is suitable for factory energy consumption monitoring system and has MID certification
-
ADL200 has MID certified energy meter suitable for school energy consumption measurement management system
-
ADL200 has MID certified energy meter and is suitable for building energy consumption analysis - energy consumption data collect
-
ADL200 smart energy meter with MID certificate sells well in Europe
-
ADL200 large-scale public building smart meter renovation and energy management system
-
Economical smart meter Acrel ADL200/C electronic meter EU certification MID certificate
Product Description

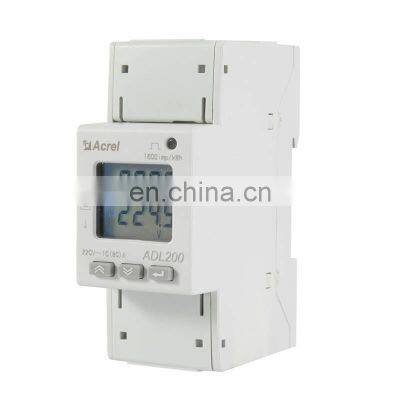

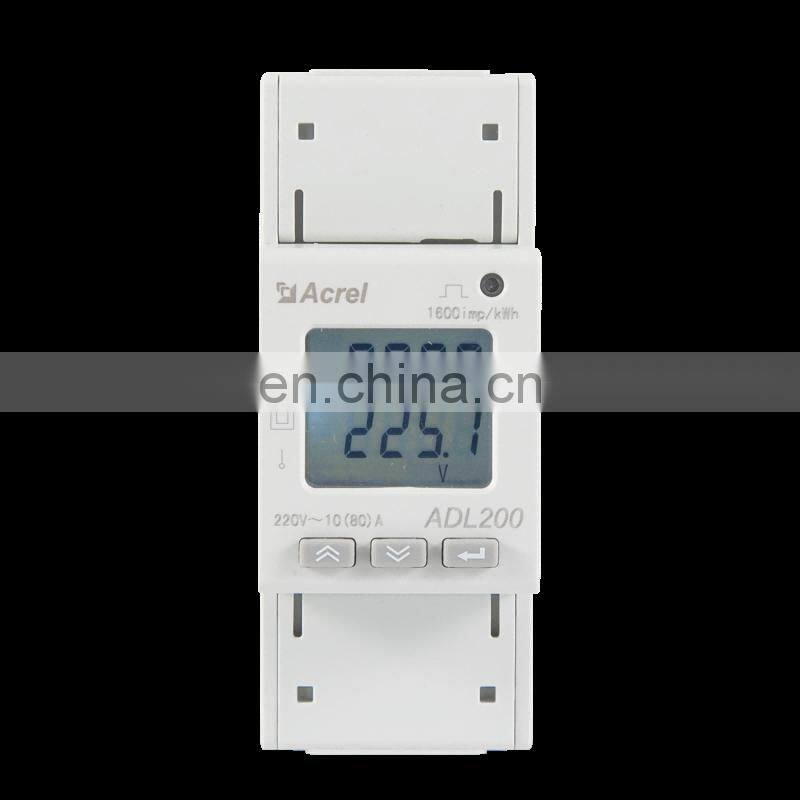

ADL200 single phase energy meter
Products Description

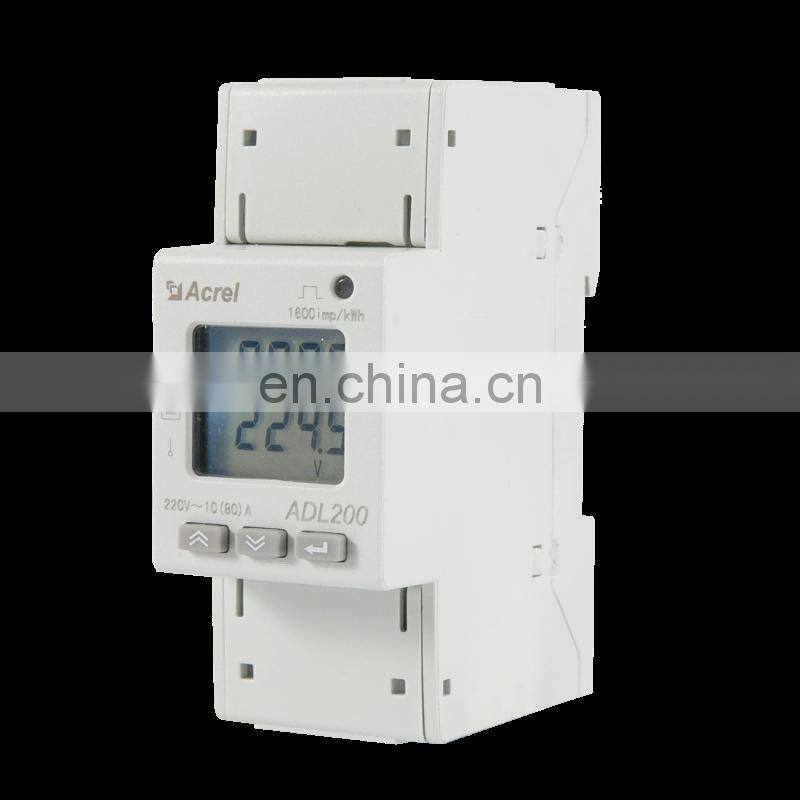

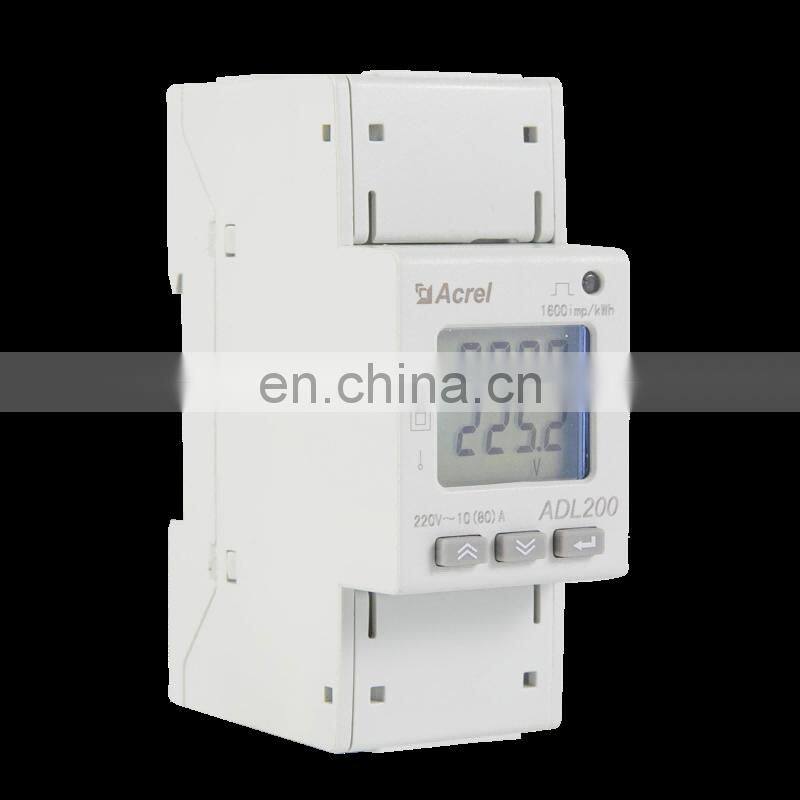

ADL200 Single-phase DIN Rail Energy Meter
· kWh Accuracy Class 1
· Diverse Electricity Parameters Measurement
· Multi-rate/Flexible Tariff (Optional)
· HMI for Parameters Setting

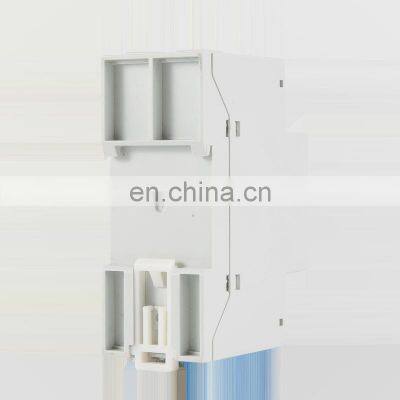

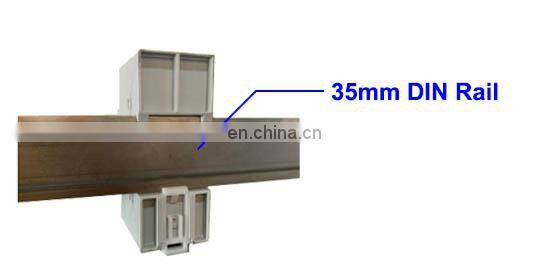

· DIN Rail Installation

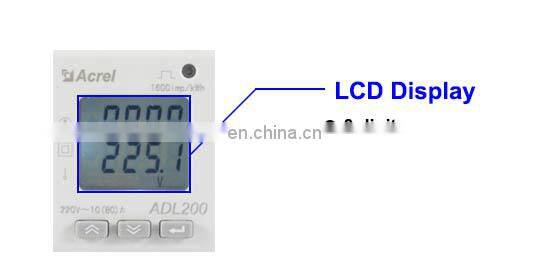

· LCD Display
· RS485 (MODBUS-RTU)---Optional
· IEC62053-21:2003; IEC62053-22:2003; CE; EAC
· Diverse Electricity Parameters Measurement
· Multi-rate/Flexible Tariff (Optional)
· HMI for Parameters Setting
· DIN Rail Installation
· LCD Display
· RS485 (MODBUS-RTU)---Optional
· IEC62053-21:2003; IEC62053-22:2003; CE; EAC
Features Introduction

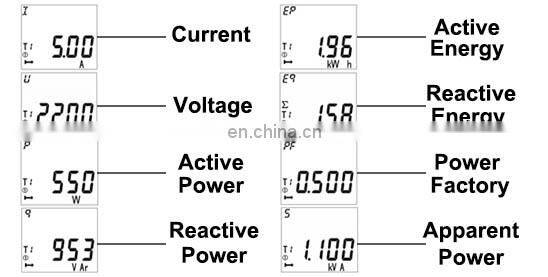

Diverse Electricity Parameters Measurement
* U (Voltage)
* I (Current)
* P (Power)
* Q (Reactive power)
* S (Apparent power)
* PF (Power factor)
* kWh (Kilowatt-hours)
* kVarh (Kilovar-hours)
* I (Current)
* P (Power)
* Q (Reactive power)
* S (Apparent power)
* PF (Power factor)
* kWh (Kilowatt-hours)
* kVarh (Kilovar-hours)
* 4 Time zone

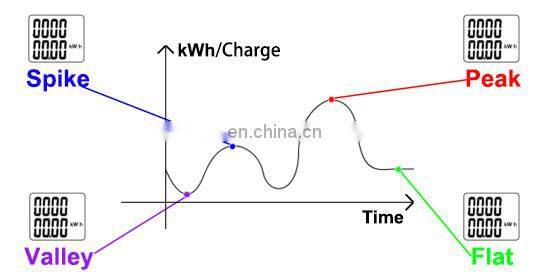

* 4 Tariff rate (Spike, Peak, Flat, Valley)* 2 Time period list
* 14 Time period by day
* Address
* Baud rate
* Parity
* All Display
Function & Parameter
Function
Function | Description | ||||||
Measurement of kWh | Single-phase active kWh (positive and negative)，3 months historical energy data frozen storage | ||||||
Measurement of electrical parameters | Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency | ||||||
Display | 8 bits section LCD display | ||||||

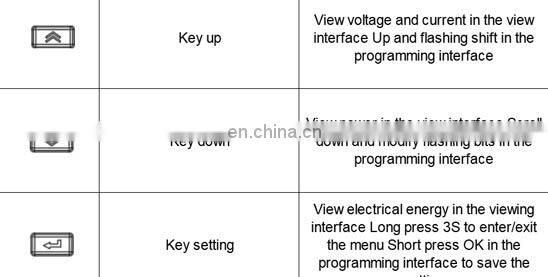

Key programming | 3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol | ||||||
Pulse output | Active energy pulse output | ||||||
Multi-tariff (Optional) | Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates | ||||||
Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU | ||||||
Technical Parameters
Paramters | Description | ||||||
Input Voltage | Reference voltage | AC 220V | |||||
Reference frequency | 50Hz | ||||||
Power consumption | <10VA | ||||||
Input Current | Basic current | 10A | |||||
Maximum current | 80A | ||||||
Starting current | 4‰Ib | ||||||
Consumption | <4VA | ||||||
Measurement performance | Accuracy of measuring | Class 1 | |||||
Range of measuring | 000000.00~99999999kWh | ||||||
Active pulse | Pulse width | 80±20ms | |||||
Pulse constant | 1000imp/kWh | ||||||
Communication | Interface | RS485(A+、B-) | |||||
Connection mode | Shielded twisted pair conductors | ||||||
Protocol | MODBUS-RTU | ||||||
Clock accuracy | Error≤0.5s/d | ||||||
Working Environment
Item | Description | ||||||
Temperature range | Working Temperature | -25℃~55℃ | |||||
Storage Temperature | -40℃~70℃ | ||||||
Relative humidity | ≤95%(No condensation) | ||||||
Altitude | <2000m | ||||||
Wiring&Installation
Wiring Illustration

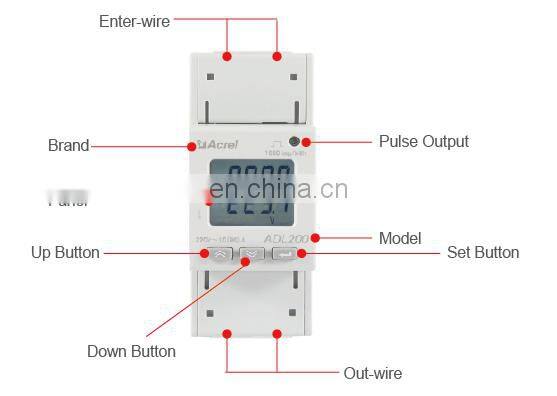

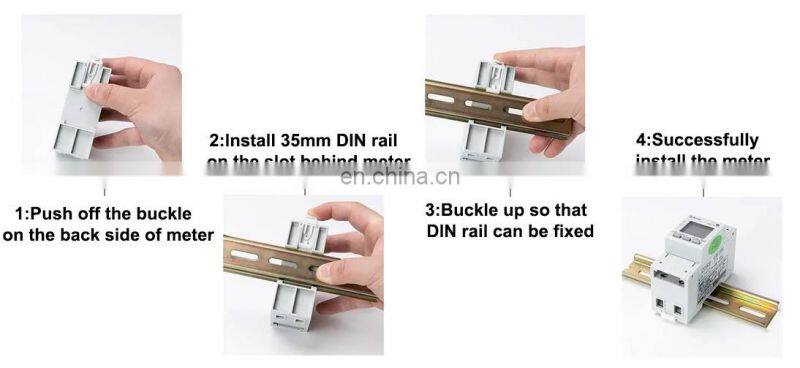

Installation Instruction

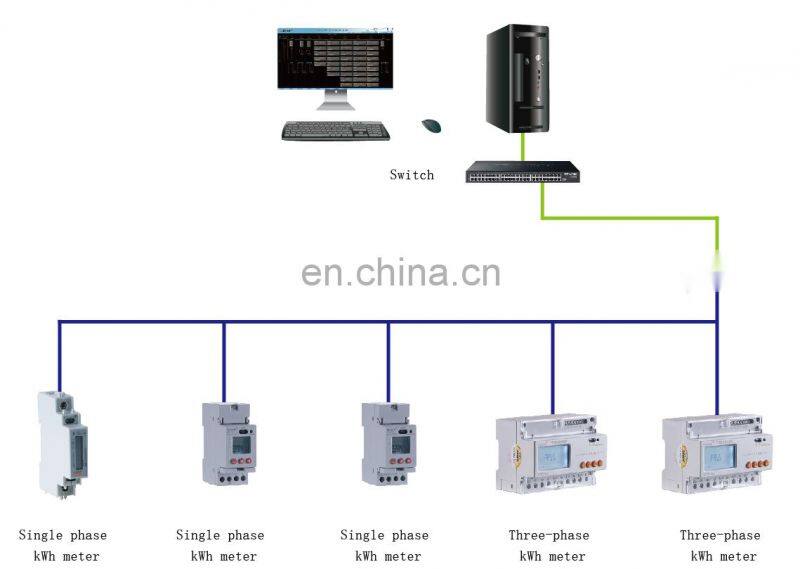

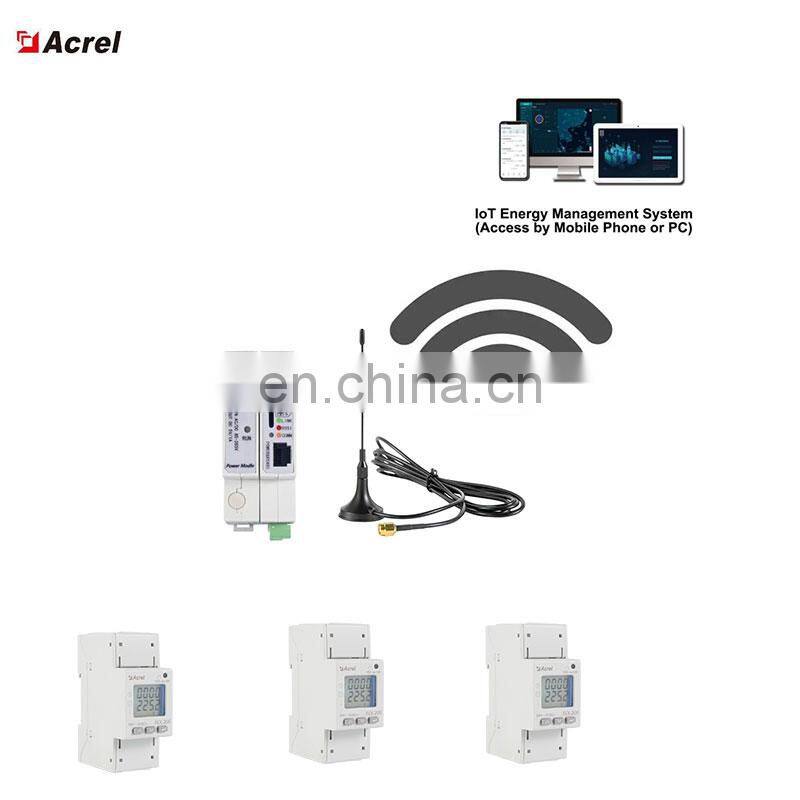

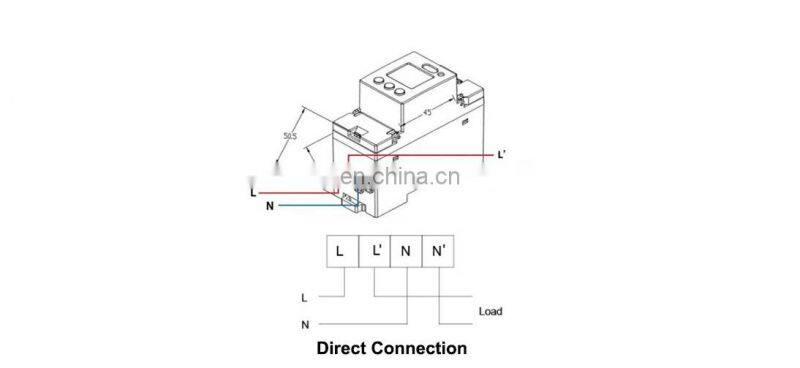

Typical Connection
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
