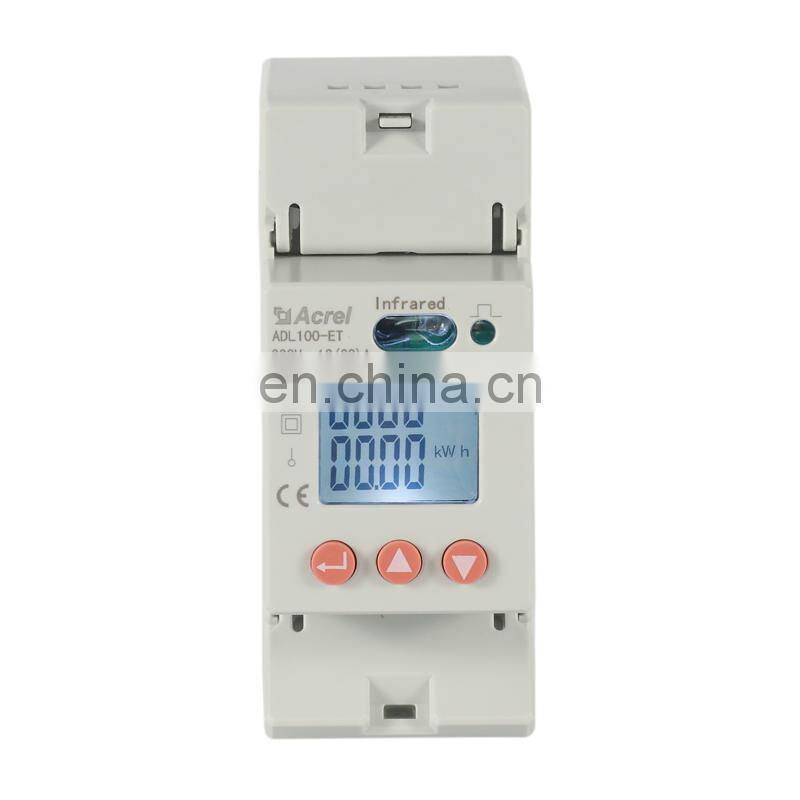

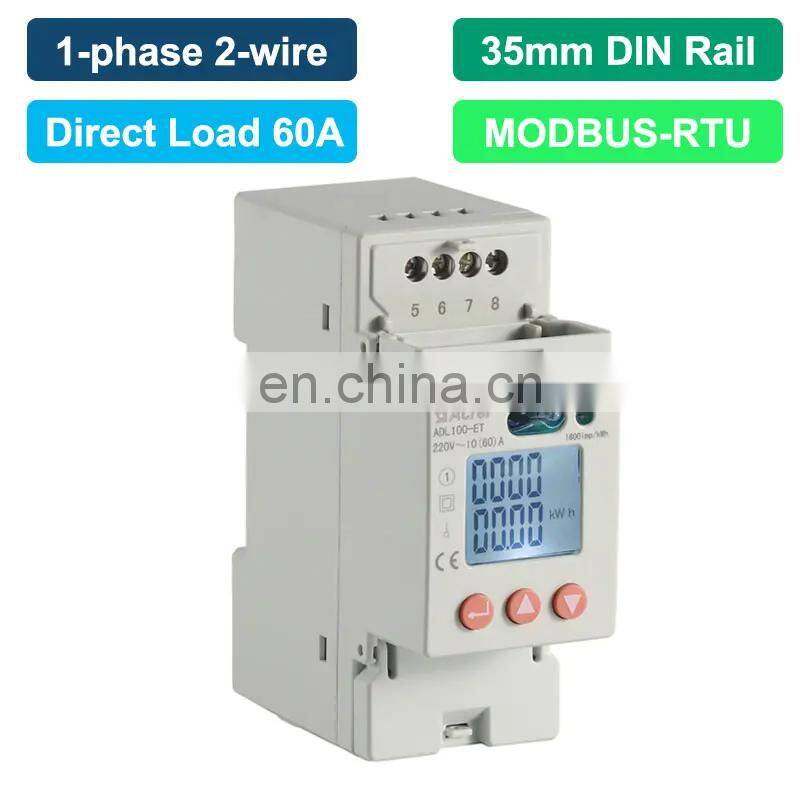

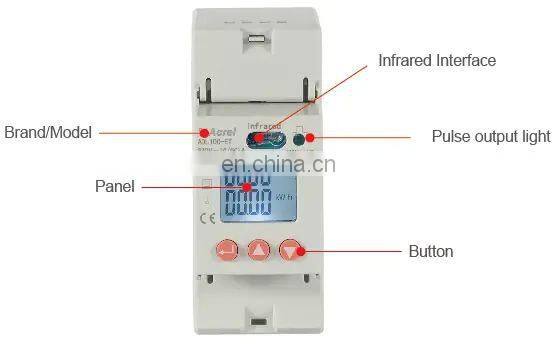

ADL100-ET Single-phase DIN Rail Energy Meter

ADL100-ET single phase electric meter is designed for single phase active energy measurement on low voltage system, in the same time it can measure the electrical parameters like voltage, current, power and so on. There is also RS485 can be chosen. This power meter has advantages of smaller volume, high precision, good EMC, easily installing etc, All meters meet the related technical requirements of electronic power meter in the IEC62053-21、IEC62053-22 standards.

Products Description

● Reference Voltage: AC 220V

● Input Current: 10（60）A ● Small Compact Size ● Diverse Electricity Parameters Measurement ● Multi-rate/Flexible Tariff (Optional) ● HMI for Parameters Setting ● DIN Rail Installation ● IEC62053-21:2003; IEC62053-22:2003; CE; EAC

● RS485 (MODBUS-RTU) (Optional)

Small Compact Size

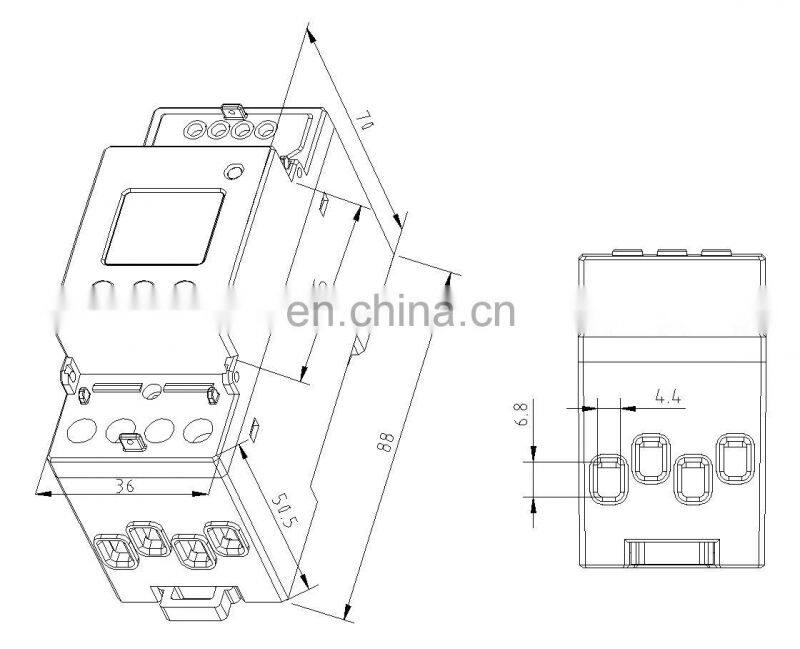

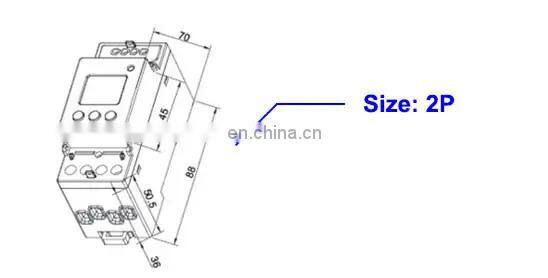

● Dimension (L*W*H): 36mm*88mm*70mm

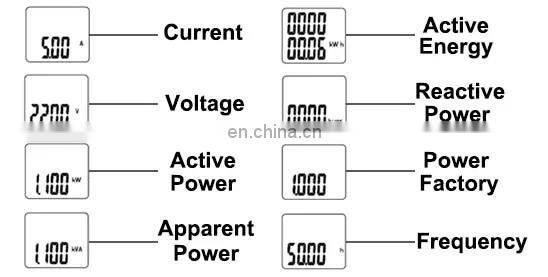

Diverse Electricity Parameters Measurement
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)

Multi-rate/Flexible Tariff
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day

HMI for Parameters Setting
● Code
● Protocol
● Address
● Baud rate
● Parity
● All Display

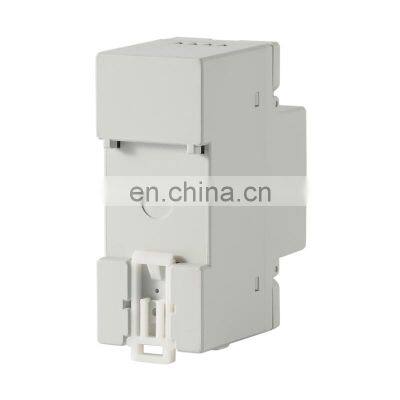

DIN Rail Installation

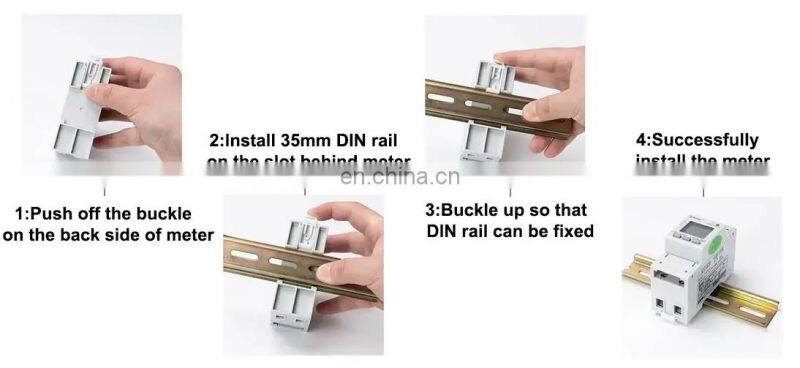

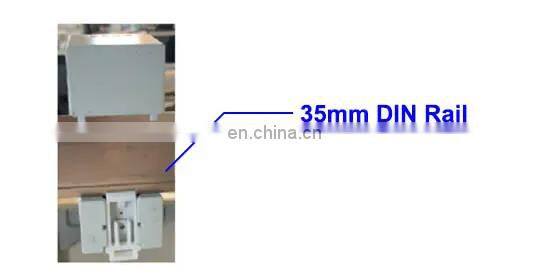

● 35mm standard DIN rail

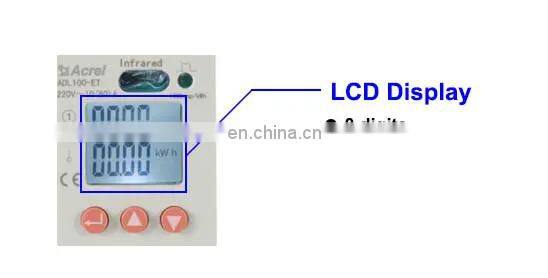

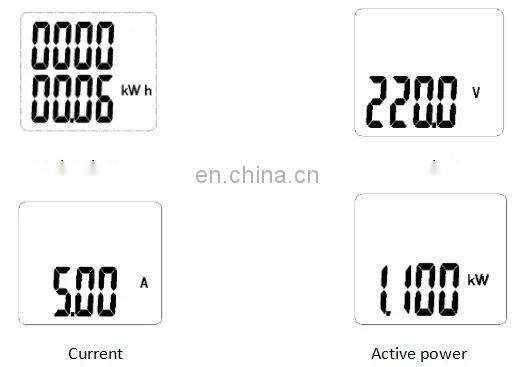

LCD Display
● 8 digits

Technical Parameter

Function

Function	Function description	Function provide
Measurement of kWh	Single-phase active kWh (positive and negative)	■
Measurement of electrical parameters	Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency	■
LCD Display	8 bits section LCD display	■
Key programming	3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol	■
Pulse output	Active energy pulse output	■
Multi-tariff	Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates	□F
Communication	Communication interface: RS485, Communication protocol: MODBUS-RTU	□C
	Infrared communication	■

Technical parameter

Input voltage	Reference voltage	AC 220V
	Reference frequency	50Hz
	Power consumption	<10VA
Input current	Basic current	10A / 20A
	Maximum current	60A / 100A
	Starting current	4‰Ib
	Consumption	<4VA (Maximum current)
Measurement performance	Accuracy of measuring	1class
	Range of measuring	000000.00~99999999kWh
Clock accuracy			Error≤0.5s/d
Active pulse	Pulse width	80±20ms
	Pulse constant	1600imp/kWh，LED
Communication	Interface	RS485(A+、B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

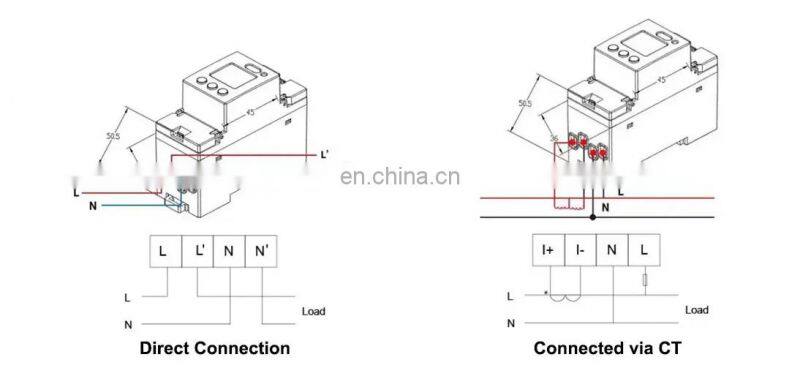

Wiring Illustration

Dimension & Installation

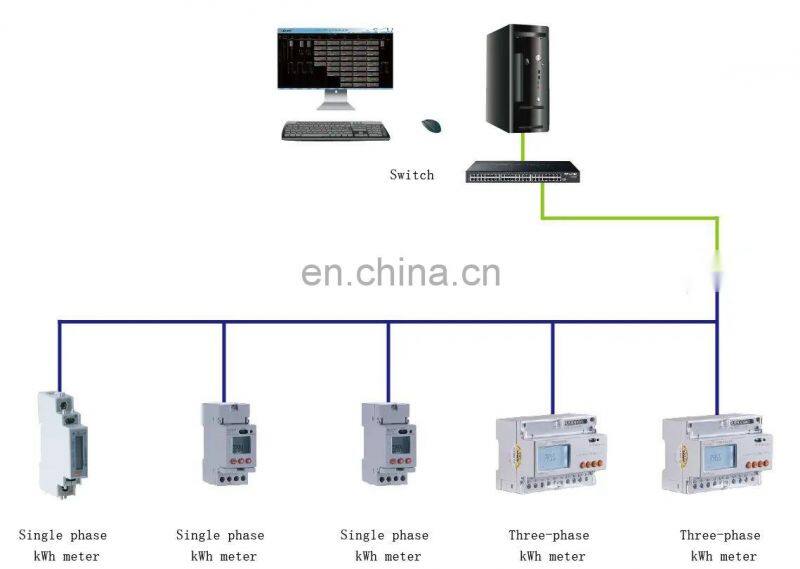

Solution Structure

Certification

Company Profile

FAQ

Contact Us
