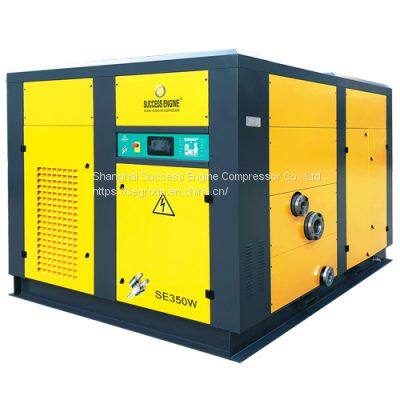

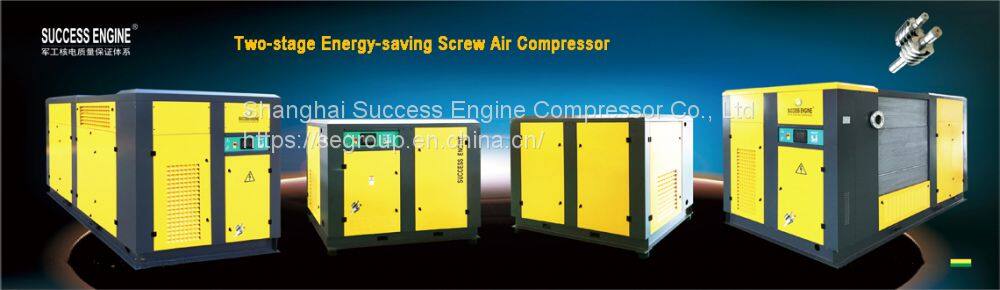

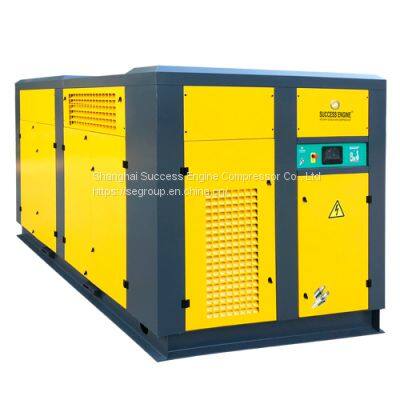

Energy-saving Screw Air Compressor
F.A.D: 3.0~100m3/min Pressure: 2 ~ 35bar
SUCCESS ENGINE energy-saving screw air compressor has two core patents - large-diameter rotor profile design and high-efficiency centrifugal cooling system, which greatly improves the compression and volumetric efficiency. The product has been tested by third-party, the volume flow and input power meet the requirements of the energy-saving evaluation value, and it is rated as an energy-saving product.
The energy-saving screw air compressor adopts high-efficiency special motor with high-quality bearings. According to the customer's power supply conditions, it can choose to match various motors of different voltage & frequency, permanent magnet type, explosion-proof, dust-proof, etc.
With ingenious design, high-standard configuration, and excellent value for money, SUCCESS ENGINE is proud of its quality. Please continue to browse the detailed introduction, we believe that you will have your own choice!
Core Technology Innovation

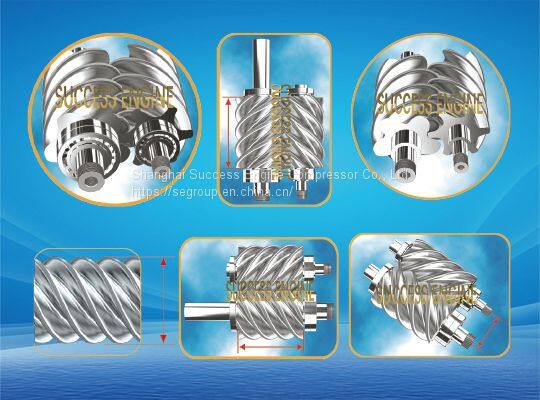

Mesh and seal innovation: Precise meshing and sealing of the rotor bottom profile - improve volumetric efficiency. Innovations of tooth root profile - improve air production efficiency, innovation of length and diameter ratio - Improve the overall rotor rigidity, innovation of shaft distance – prolong the bearing service life.

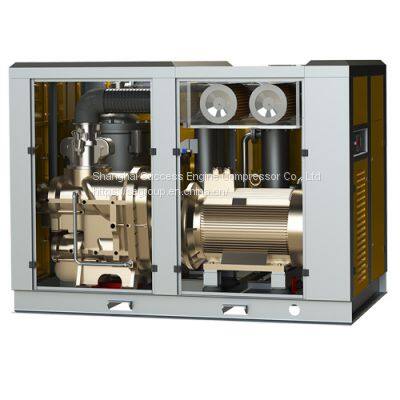

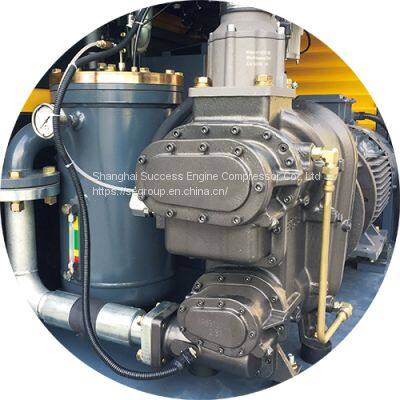

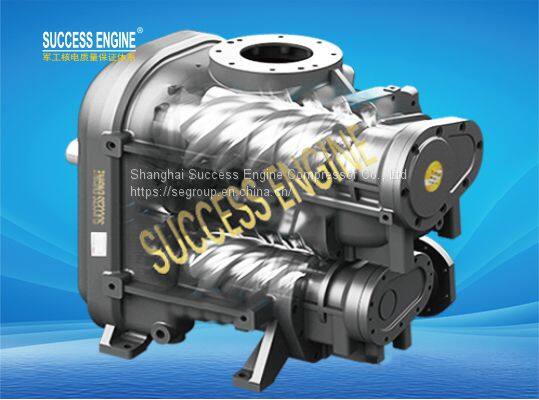

High-efficiency Compressor Airend
(Patent number: CN201320374188.7)
By optimizing the rotor profile which greatly improves the effective volume, sealing and gas production efficiency. Large diameter and low speed rotor, equipped with heavy-duty high-quality bearings and three special shaft seals to ensure the highest gas production efficiency and service life, and greatly reduce radial vibration and airflow noise.

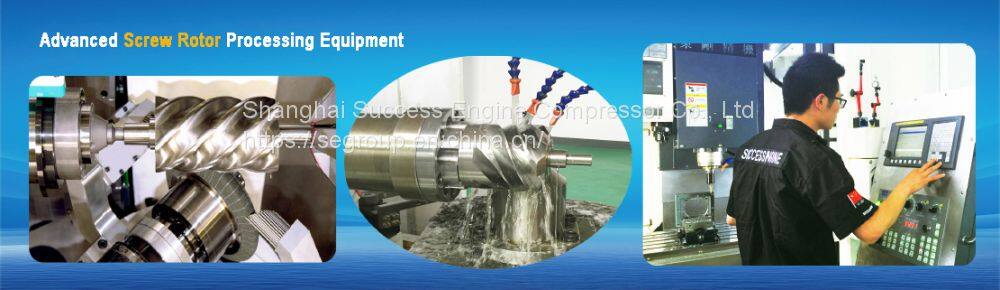

Advanced Screw Rotor Processing Equipment
The advanced rotor processing equipment is used to process the rotor in multiple processes to accurately ensure that the rotor profile and precision meet the design requirements and are absolutely reliable, so that the core technology of SUCCESS ENGINE remains in a leading position.

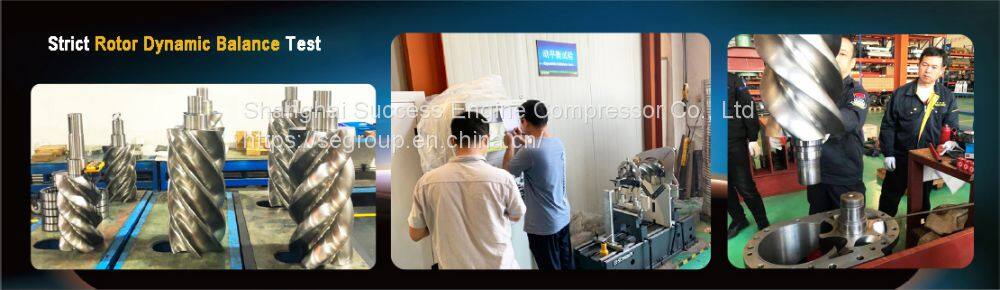

Strict Rotor Dynamic Balance Test
Using advanced dynamic balancing equipment, according to the requirements of "Success Engine Dynamic Balance Test Procedure", a strict dynamic balance test is carried out on each rotor to ensure the rotor balance accuracy level, ensure the balance and stability during full-speed operation, and improve the overall performance of the compressor.

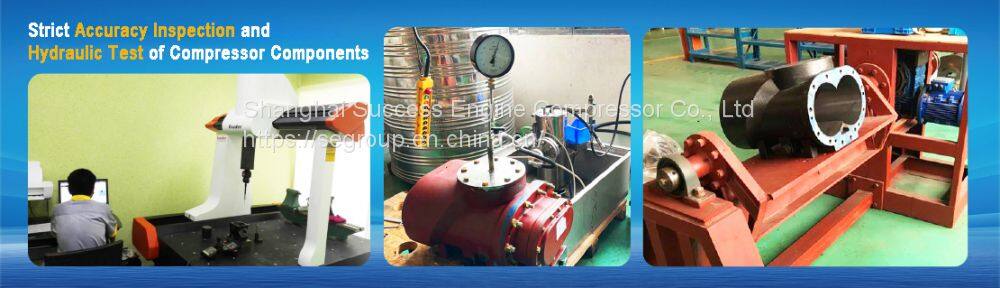

Strict Accuracy Inspection and Hydraulic Test of Compressor Components
The three-coordinate measuring instrument is used to carry out strict precision inspection on the compressor airend casing, end cover and other components, and the pressure-bearing components are subjected to a 30 minutes hydraulic test of 1.25 times the design pressure. Only those products that meet the inspection standards and technical requirements can be judged as qualified products.

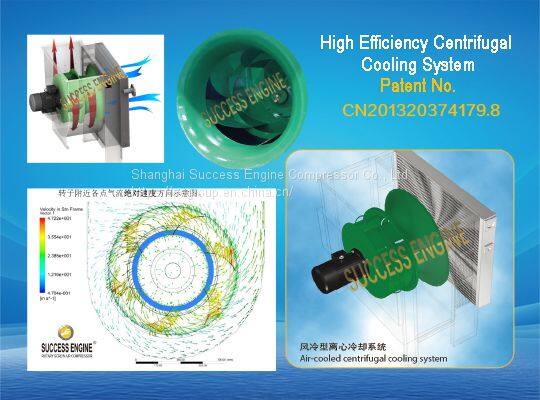

High Efficiency Centrifugal Cooling System
(Patent number: CN201320374179.8)
The aerodynamic calculation and full three-dimensional flow simulation are carried out, combined with actual operation data to optimize the volute structure and fan blade profile, to save power, increase dynamic pressure, and achieve the best fan efficiency.
Adopts side-entry & top-discharge closed frequency conversion fan cooling structure. Equip with centrifugal fan, the frequency conversion automatically adjusts the fan speed according to the system temperature change.

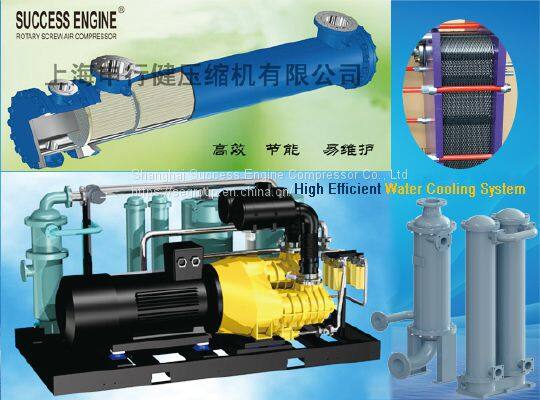

High Efficient Water Cooling System
For high-power unit, unique shell-and-tube baffle and tube-column was designed and installed, effectively improves the heat exchange rate between compressed air and water, and reduces the water consumption.
For low-power unit, the plate corrugated superimposed structure can be selected, so that the fluid can form turbulent flow, size is small but with good heat dissipation effect.
