1.Description of titanium sintered filter cartridge
Titanium sintered filter element with its unique performance, can be widely used in the pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical, metallurgical industry and gas purification field. It is a kind of new material with wide development prospect.
Typical application:
2.)Removal of impurities in the production process of API, removal of carbon filtration and fine filtration of materials.
3) water treatment industry in the ultrafiltration, RO, EDI system security filtration, ozone sterilization after filtration and ozone aeration.
4) Clarification and filtration of beverage, liquor, beer, vegetable oil, mineral water, soy sauce and vinegar in food and beverage.
5) the chemical industry of liquid products, liquid raw materials, pharmaceutical intermediates of decarbonization filtration and precision filtration, ultra-fine fine body, catalytic agent filtration and recovery, precision filtration after resin adsorption and system heat conduction oil, material in addition to miscellany filtration, catalytic gas purification, etc.
6) oil field reflux water filtration, seawater desalination field before the reverse osmosis security filtration.
7) the dye industry of high temperature decharring, dewhite soil filtration.
8) gas purification steam, compressed air, catalyst filtration.
2. Features:
1.) Excellent filtration performance and oxidation resistance (5-100um)
2. )Shape stability and high strength.
3.) High temperature resistance (working under high temperature environment, high corrosion resistance.
4. )Better permeability and excellent separation
5. )Good backwash, easy to recover elements
6).Deep filtration, with a strong capacity to absorb pollution
4.Features of titanium sintered porous materials:
Stainless steel sintered porous material has excellent corrosion resistance, oxidation resistance, wear resistance and mechanical properties.
| Material | Filter Rating | Porosity | Penetrability | Working pressure | Operating temperature | Shape | specific surface area |
Gr1 pure titanium powder |
5um-100um | 20-45% | 3-1300M³/M²hKPa | 2-2.5MPa | 300℃ |
Round Disc,SheetTube, Round,Bar,cap. |
10-40cm²/cm³ |

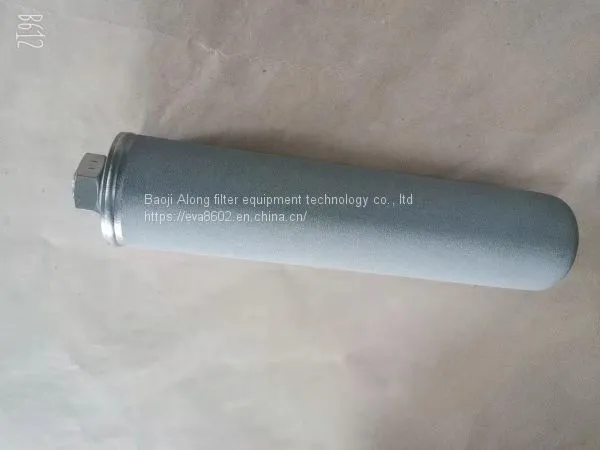

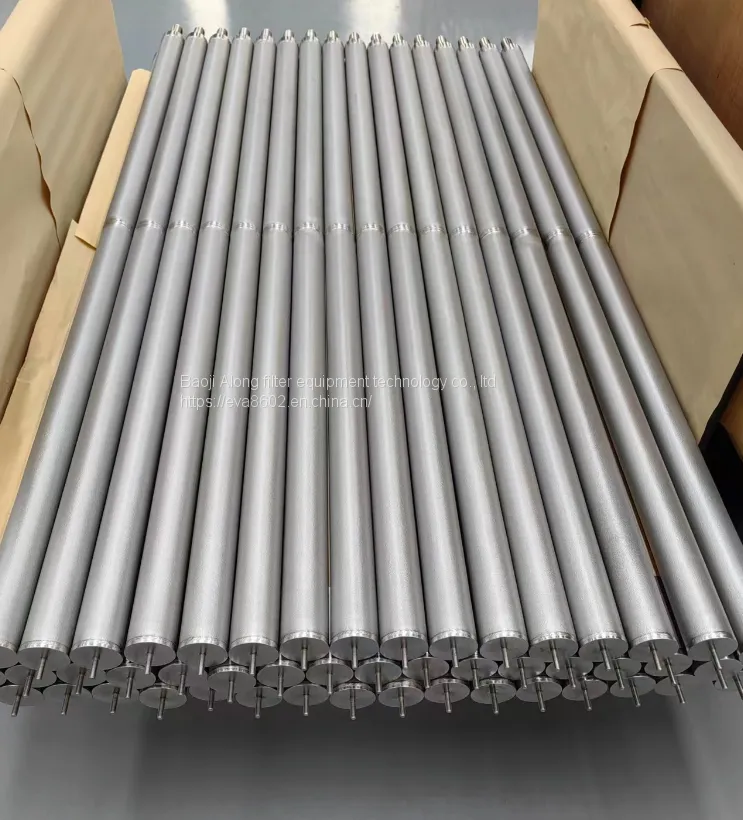

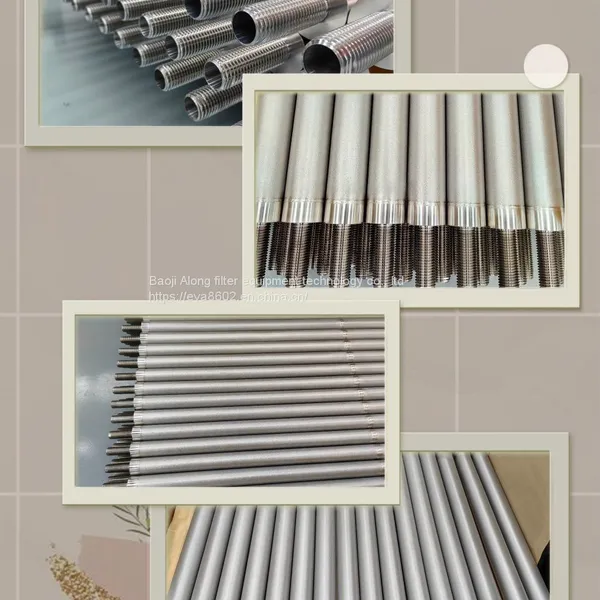

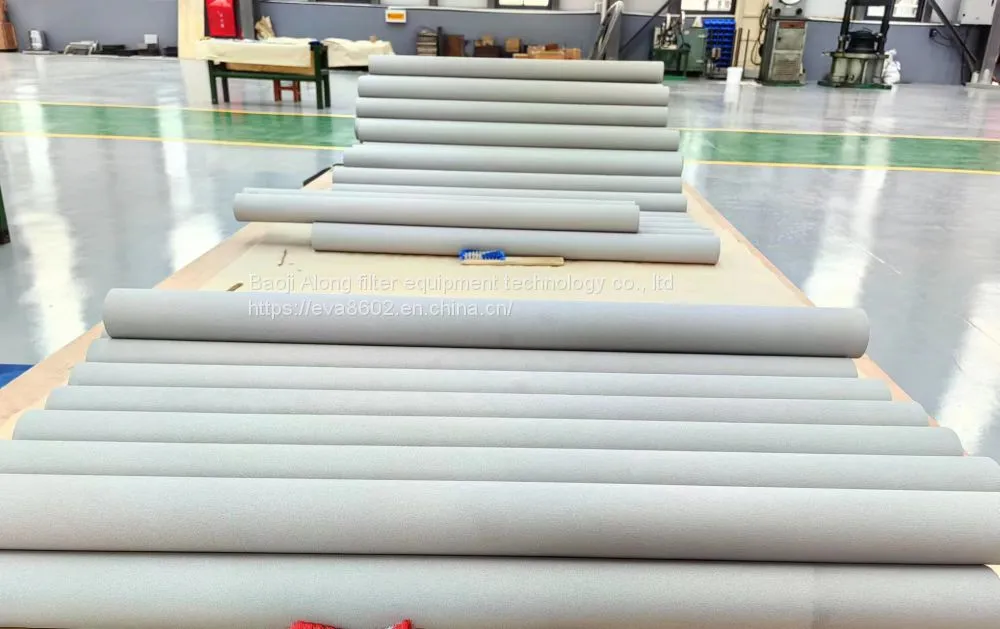

5. Products show
