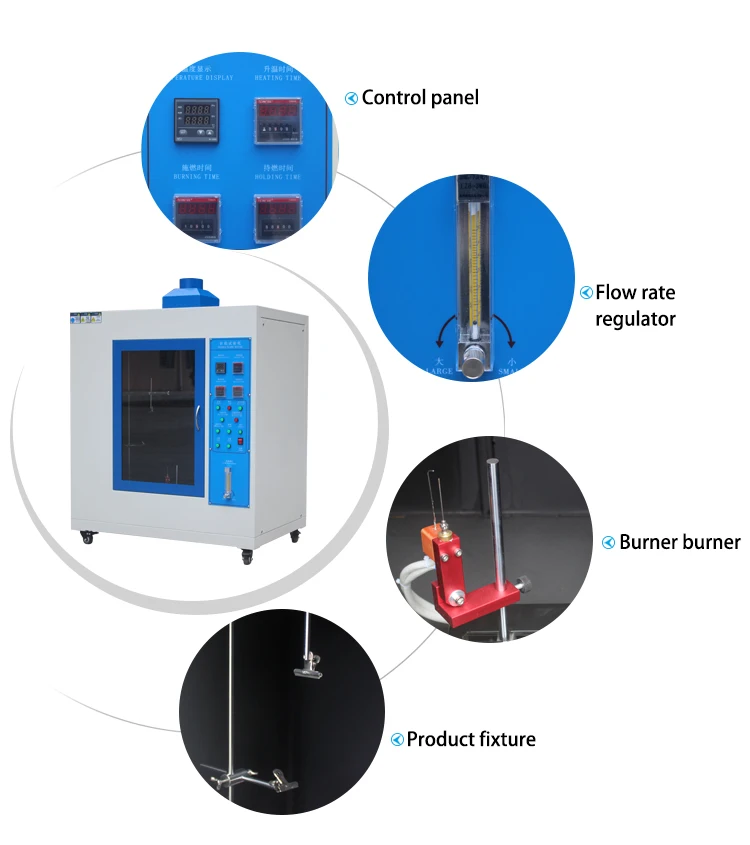

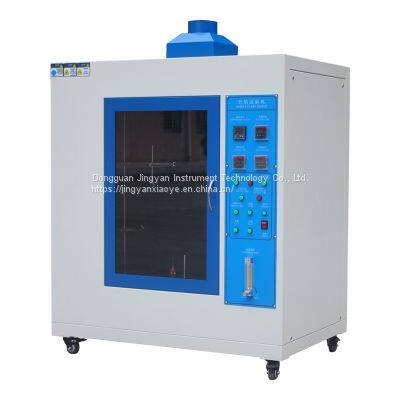

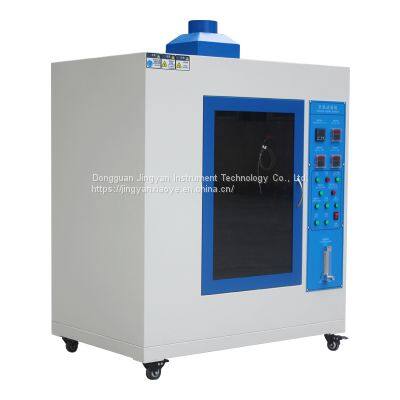

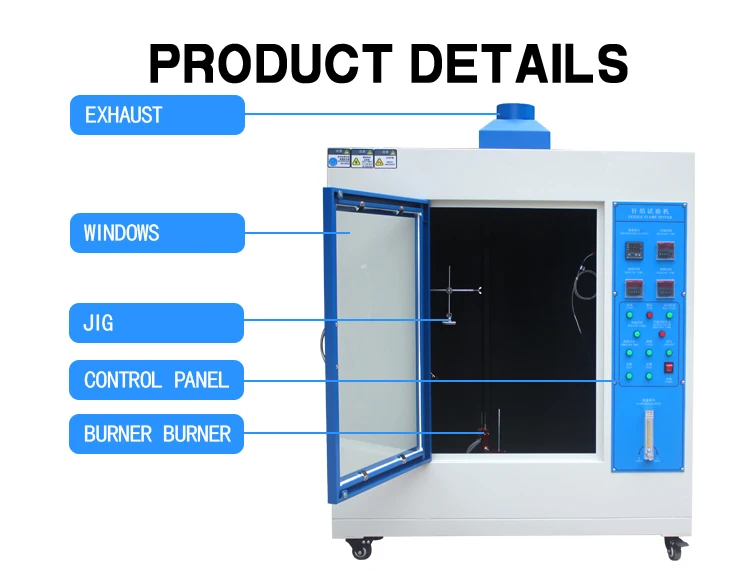

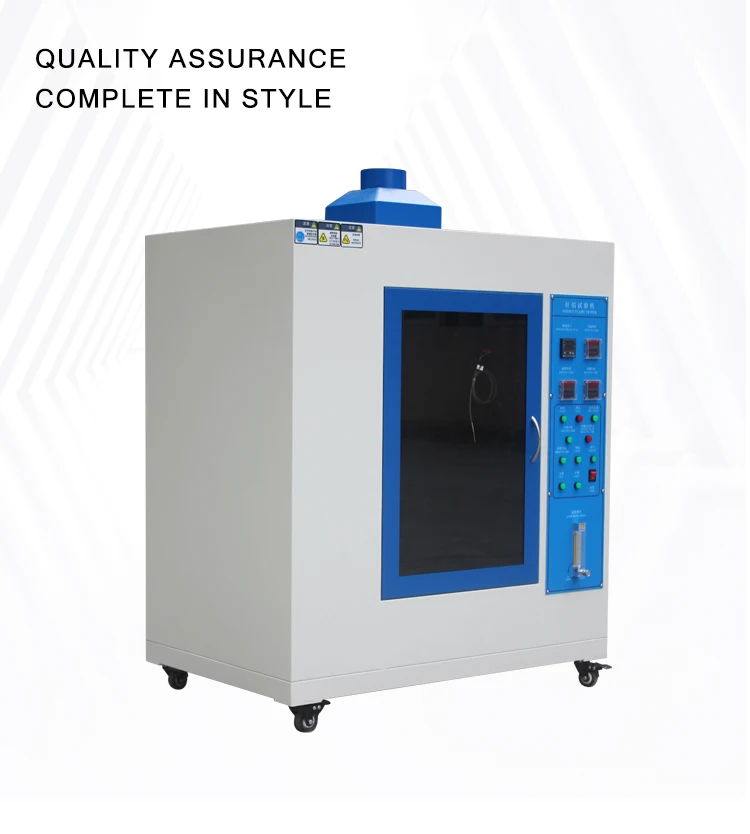

Help CenterFlame Retardant Tester For Electronic Components Needle Flame Retardant Tester Combustion Testing Machine
Related Products
-
High Quality Combustion Test Chamber Flammability Tester Burning Testing EquipUS$ 1600 - 2500MOQ: 1 Set -
IEC60695 Standard Horizontal Vertical Combustion Testing Machine U L 94 Burning TesterUS$ 1600 - 2000MOQ: 1 Set
-
JINGYAN Rubber Flammability Resistance Tester Plastics Flame Test Chamber Burning Test MachineUS$ 1600 - 2000MOQ: 1 Set
-
IEC60695-2-10 Glow Wire Tester Glow Wire Test ApparatusUS$ 1600 - 2000MOQ: 1 Set
-
Plastics Glow Wire Tester Fire Testing Equipment Glow Wire Combustion Resistance Testing MachineUS$ 1600 - 2000MOQ: 1 Set
Appliance:
Needle flame test instrument is suitable for lighting, low voltage electrical appliances, household appliances, machine tool electrical appliances, motor, electric tools, electronic instruments, electrical instrumentation, information technology equipment, electrical business equipment, electrical fittings, accessories and other electrical and electronic equipment and components, components, research, production and quality inspection departments, can also be applied to insulation materials, engineering plastics industry or other solid combustible materials.
Standard:
GB4706.1, GB5169.5-2008, IEC 60695-2-2 IEC 60695-11-5 and ect. relevant standards.
Needle Burner | the hole Φ 0.5mm ± 0.1mm, outside diameter ≤ Φ 0.9mm, length ≥ 35mm, |
Material | stainless steel |
Burner Angle | tilt 45 ° (test) or vertical (adjust the flame height) |
Application Time | 0-999 .9 s ± 0.1s adjustable (normally choose to 30s) |
Burning Duration | 0-999 .9 s ± 0.1s, auto record, manual suspension |
Flame Height | 12mm ± 1mm (with a height measurement apparatus) |
Burn Gas | 95% of the butane gas (Pressure:Less than 0.2MP) |

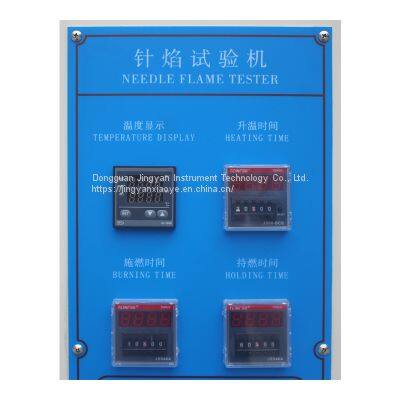

Temperature Measurement range | 0 ~ 1000 ℃ |
Flame Temperature Requirements | from 100 ℃ ± 2 ℃ 700 ℃ ± 3 ℃ rise to the time |
Thermocouple | Φ0.5mm (K type) |
Experimental Background | black background |

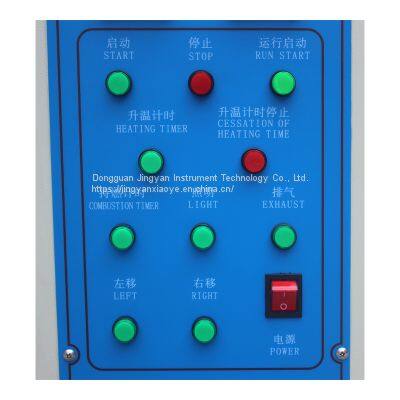

Test Procedure | automatic control |
Reference Standard | IEC60695 -11-5-2004, GB/T5169.5-2008 |
Inside Dimension | 0.5 cubic meters, stainless steel chassis |
Equipment Dimensions | 1000mm wide × 650mm deep × 1300mm high |
Power Supply | AC220V ± 5%, 50Hz, 0.3KVA |
