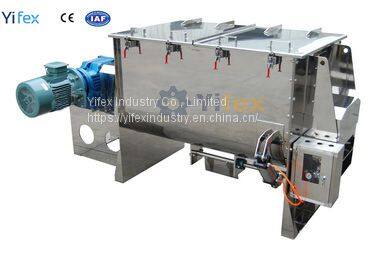

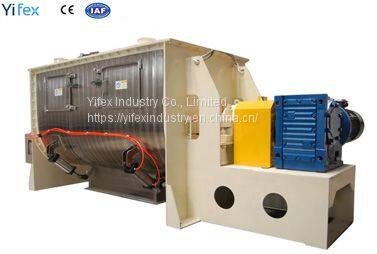

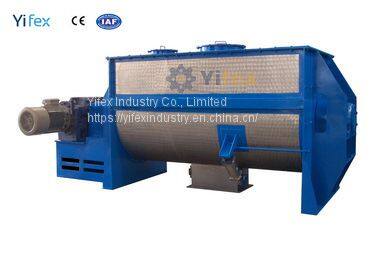

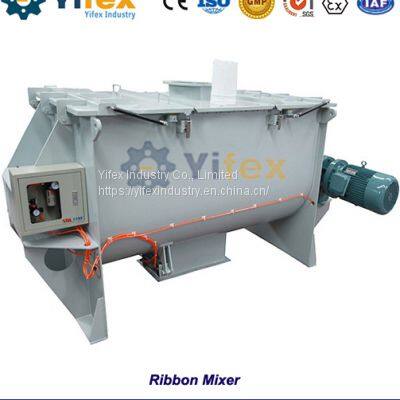

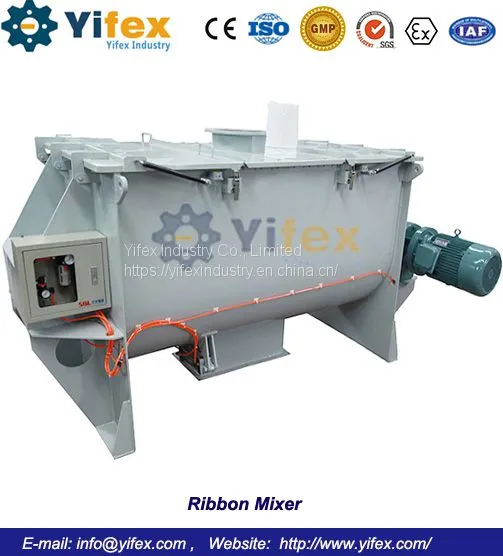

Ribbon Mixer

Ribbon Mixer is primarily designed for use with dry materials, although gas and liquid streams can also be added. A wide variety of configurations, for either batch or continuous mixing, are available with sizes ranging from 100-20000 liter working capacity. Application specific rotor mixing element design allows shorter batch cycle times due to increased mixing efficiency. We can customize the design of the Ribbon Mixer to meet your specific mixing requirements. Mixing vessels can be standard U-shape or cylindrical depending on internal pressure or vacuum requirements.

Working Principle:

Ribbon mixer consists of transmission parts, double ribbon agitators and U-shape cylinder. In the direction of rotation, the outer ribbon pushes materials from both ends to the middle, while the inner ribbon pushes materials from the middle to both ends. Ribbon wind with different angle direction carries the materials flowing in different directions. Through continuous convective circulation, the materials are sheared and mixed thoroughly and quickly.

Standard Features:

Volume: 100-20000L

Stainless Steel or Carbon Steel

Ribbon agitator for center discharge

Designed for normal temperature and normal atmospheric pressure

Feed Nozzle

Dust Nozzle

Manually operated or Pneumatic operated flap valve

Packing Seal

Safety limit switch on cleanout door

Optional Features:

Carbon Steel, Stainless Steel 304, Stainless Steel 316L
Continuous ribbon agitator, interrupted ribbon for higher density materials
Internal pressure
Sanitary type construction
Flap valve, butterfly valve, slide gate valve, ball valve
Horsepower to suit higher density materials
Explosion-proof motors
Controls such as variable frequency drives, motor starters and operator stations are available
Spray nozzles for liquid introduction
Jacket for heating or cooling
Technical Data:

Certification:

CE,ISO,FDA,GMP

As different country ,the shipping cost is not same, so,after you chosen the products,
please tell us the model,quantity and your country .
We will help you calculate the machine price and shipping cost ,Our Email: info@yifex.com

About US:

1.We are Chinese professional screening machines supplier with 20 years of production experience. products such as: crusher and mill, vibraing screen, filter, packing machine, feeders, conveyors and mixer machine etc.

2.All of our products can be SS304, SS316 and carbon steel, or nonmetal, pls let us know your request.

3.Customised designs and sizes available

4.Comply with Europe and America standard

5.OEM, ODM and OBM orders available.

Products details:

1) Various designs and colors are available

2) Good quality and competitives prices

3) Packing: 1set/ wooden case or according to customer designs

4) Production Time: 7-30days

Price terms:

We can offer EXW price, FOB price, CIF price  as client's requests.

Payment terms:

1.T/T 30% deposit before production and balance before delivery or against by B/L if sea shipment

2.L/C at sight if sea shipment.

Shipping way:

1.By air or sea through your pointed forwarder is OK for us. FOB Port is Shanghai.

2.If you don't have your forwarder,we can find the cheapest forwarder to ship the goods to your pointed port.

3.We can provide the customs documentations of the shipment as you required to you.
