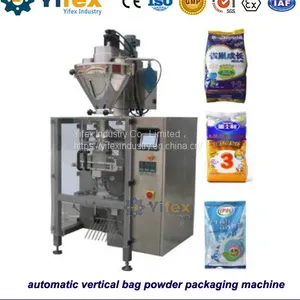

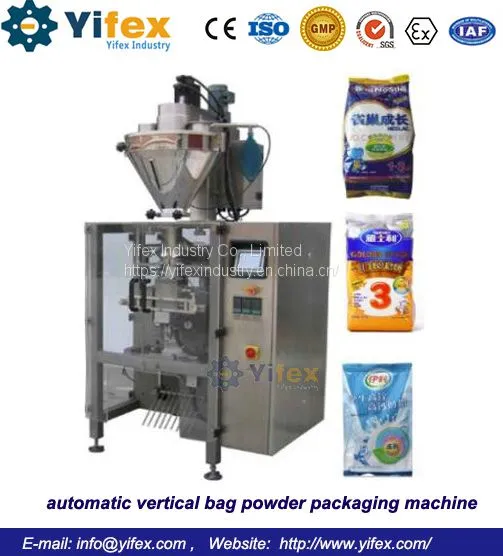

Automatic Vertical Bag Powder Packaging MachineUS$ 1000 - 10000MOQ: 1 Set -
Automatic Vertical Bag Powder Packaging MachineUS$ 1000 - 10000MOQ: 1 Set
-
YIFEX Vibrating FeederUS$ 1000 - 10000MOQ: 1 Set
-
YIFEX Vibrating HopperUS$ 1000 - 10000MOQ: 1 Set
-
YIFEX Magnetic FeederUS$ 1000 - 10000MOQ: 1 Set
Introduction:
This product is suitable for packing powdery material: milk powder、rice noodles, starch, protein powder, soy milk powder, sesame powder, milk powder, glutamate, salt, etc.
Product features:
, full computer touch screen control, human-machine interface, simple and convenient operation, replacement product is simple, has a fault display system, fast and convenient maintenance.
, using the latest screw head of filling materials, especially suitable for illiquid powder, high measuring accuracy, high speed. Replaceable spiral accessories, convenient adjustment package specification.
, Traction, film with servo motor control, make the drawing more relaxed, accurate bag length control.
, Horizontal sealing adopts servo motor drive, make no impact on the running, low noise, open the schedule control, can adjust the sealing pressure, can apply to various thickness and complex material.
, it can be finished automatically roll film bag making, measuring filling material, the packing sealing, date printing, the function package is optional, European peg hole, hand carry hole, Angle, nitrogen filling, cooling, long bag, etc.
, With automatic alarm, such as material, film running deviation, no film, colorless belt, etc.
Technical Data:
| Model | XJW-320 | XJW-420 | XJW-530 | XJW-730 |
| Filling head | XJL-3AL | XJL-3B |
XJL-3BL | |
| weighing range | 1-500g |
10-1000g |
100-3000g |
|
| packaging accuracy | ±0.2-0.5% |
|||
| the packing speed: | 30-50 bags/min |
25—45 bags/min |
||
Bag width |
||||
The bag length |
||||
maximum film width |
||||
The film thickness |
0.04-0.08mm |
0.04-0.08mm |
0.08-0.12mm |
0.08-0.12mm |
| Total power | 3Kw |
3.7 Kw |
4.2 Kw |
5.4 Kw |
Working pressure |
0.4-0.6 Mpa |
|||
Gas consumption |
100L/min |
150L/min |
180L/min |
210L/min |
| Weight | 350 kg |
580 kg |
730 kg |
870 kg |
| the machine volume | 1.2x0.8x2.1m |
1.5x0.95x2.5m |
1.5x1.16x2.6m |
1.8x1.3x2.8m |
bag type |
Back sealing bag (pillow bags), pin bag |
|||
Certification:
CE,ISO,FDA,GMP
As different country ,the shipping cost is not same, so,after you chosen the products,
please tell us the model,quantity and your country .
We will help you calculate the machine price and shipping cost ,Our Email: info@yifex.com
About US:
1.We are Chinese professional screening machines supplier with 20 years of production experience. products such as: crusher and mill, vibraing screen, filter, packing machine, feeders, conveyors and mixer machine etc.
2.All of our products can be SS304, SS316 and carbon steel, or nonmetal, pls let us know your request.
3.Customised designs and sizes available
4.Comply with Europe and America standard
5.OEM, ODM and OBM orders available.
Products details:
1) Various designs and colors are available
2) Good quality and competitives prices
3) Packing: 1set/ wooden case or according to customer designs
4) Production Time: 7-30days
Price terms:
We can offer EXW price, FOB price, CIF price as client's requests.
Payment terms:
1.T/T 30% deposit before production and balance before delivery or against by B/L if sea shipment
2.L/C at sight if sea shipment.
Shipping way:
1.By air or sea through your pointed forwarder is OK for us. FOB Port is Shanghai.
2.If you don't have your forwarder,we can find the cheapest forwarder to ship the goods to your pointed port.
3.We can provide the customs documentations of the shipment as you required to you.
