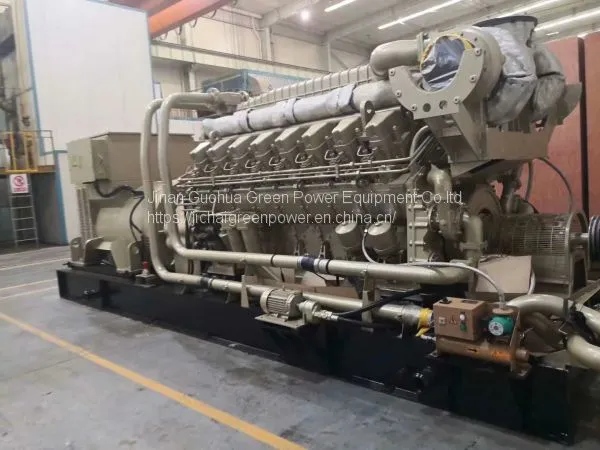

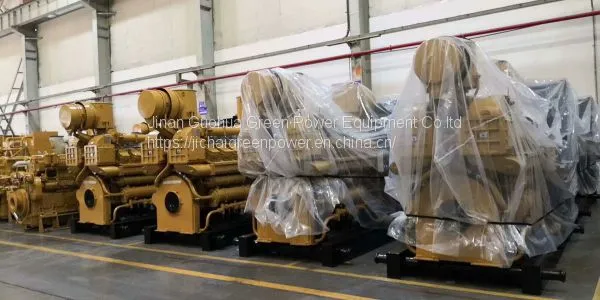

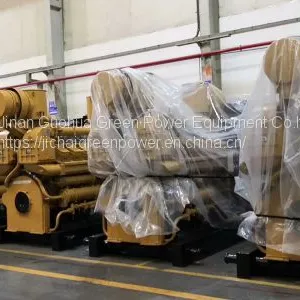

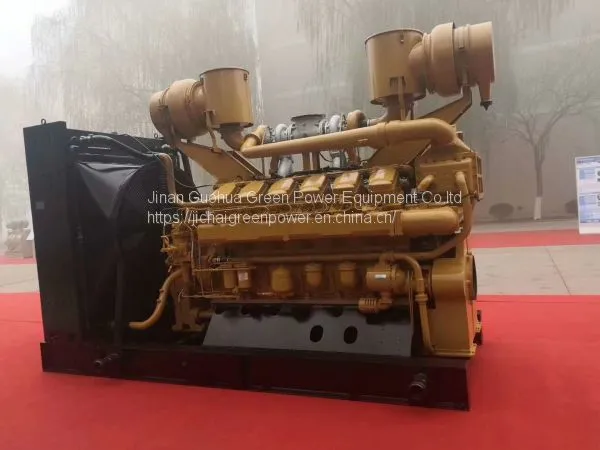

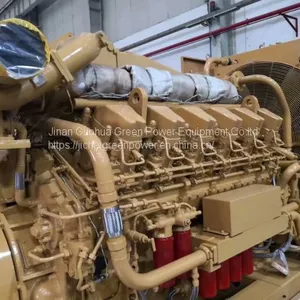

Jinan Diesel Engine G12V190pzl Parts Chidong Jichai Engine Parts
111 - 3456
/ Piece
1 Piece(Min.Order)
- 1111 Piece / Pieces per Month
- qingdao
- T/T L/C Credit Card
- 30 days
You May Like
- H16V190zlt-2 Closed-Loop Electronic Control Gas Engine Parts Jichai/Jinan Brand
- H16V190zlt-2 natural gas generator Jichai/Jinan Brand
- 1000kw natural gas generator Jichai/Jinan BrandH16V190zlt-2
- 1200kw natural gas generator Jichai/Jinan Brand H16V190zlt-2
- 500kw natural gas generator Jichai/Jinan Brand 500GF-T G12V190ZLDT-2
- 500GF-T G12V190ZLDT-2 500kw BIOGAS generator Jichai/Jinan Brand
Product Details
Brand Name: | jichai | Place of Origin: | China | Model Number: | 111 |
Certification: | iso9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12 months |
Weight: | 1111 | Dimension(L*W*H): | 1111 | Condition: | New |
Fuel: | Diesel | Start: | Electric Start | Cold Style: | Water-Cooled |
Stroke: | 4 Stroke | Usage: | Boat | Cylinder: | Multi-cylinder |
Product Description
Basic Info.
Model NO.
12V190
Specification
1000
Trademark
jichai
Origin
China
HS Code
8409999000
Production Capacity
50000pecises/Year
Product Description
Model of genset | Model of engine | Rated Power(KW/KVA) | Rated Voltage(V) | Rated Frequency(HZ) | Overall Dimension L*B*H(mm) | Net weigh(KG) | Fuel | |
700GF-TK2 | A12V190ZLT-2 | 700/875 | 400/230 | 50 | 5620*2180*2520 | 16000 | natural gas | |
800GF-W | AD12V190ZLW-2 | 800/1000 | 400/230 | 50 | 7040*2335*2520 | 20200 | coal mine gas | |
1000GF-NK | AD12V190ZLZ | 1000/1250 | 400/230 | 50 | 5375*2312*2776.5 | 16500 | biogas | |
1000GF-TK1 | AD12V190ZLT1 | 1000/1250 | 400/230 | 50 | 5375*2312*2776.5 | 16500 | natural gas | |
1000GF-TK2 | AD12V190ZLT2 | 1000/1250 | 400/230 | 50 | 5375*2312*2776.5 | 16500 | natural gas | |
1000GFZ-TK2 | AD12V190ZLT3 | 1000/1250 | 400/230 | 50 | 5375*2312*2776.5 | 16500 | natural gas | |
1000GF-T | AD12V190ZLT2 | 1000/1250 | 400/230 | 50 | 6660*2335*2520 | 19800 | natural gas | |
1000GF-T3 | AD12V190ZLT2 | 1000/1250 | 400/230 | 50 | 6660*2335*2520 | 19800 | natural gas | |
1000GF-T4 | AD12V190ZLT2 | 1000/1250 | 400/230 | 50 | 6660*2335*2520 | 19800 | natural gas | |
1100GF-WK | H16V190ZLW-2 | 1100/1375 | 400/230 | 50 | 5920*2180*2200 | 17200 | coal mine gas | |
Main specification for gas engines | ||||||||
Model | Rated Power(KW) | Rated Speed(r/min) | Compression ratio | Specific heat consumption(kj/kw.h) | Specific oil consumption(g/kw.h) | Overall Dimension L*B*H(mm) | Net weigh(KG) | FUEL |
AD12V190ZLT1 | 1100 | 1500 | 12:01 | ≤11000 | ≤1.6 | 2979*2312*2471 | 9300 | natural gas |
AD12V190ZLT2 | 1100 | 1500 | 10:01 | ≤9500 | ≤1.0 | 2979*2312*2471 | 9300 | natural gas |
AD12V190ZLT3 | 1100 | 1500 | 10:01 | ≤9500 | ≤1.0 | 2979*2312*2471 | 9300 | natural gas |
AD12V190ZLW-2 | 900 | 1000 | 10:01 | ≤9500 | ≤1.0 | 2979*2312*2471 | 9300 | coal mine gas |
H12V190ZLT | 1500 | 1500 | 12:01 | ≤9500 | ≤1.0 | 3830*1792*2315 | 9300 | natural gas |
H16V190ZLT-2 | 1200 | 1000 | 10:01 | ≤9500 | ≤1.0 | 3692*2516*2405 | 13000 | natural gas |
H16V190ZLW-2 | 1200 | 1000 | 10:01 | ≤9500 | ≤1.0 | 3692*2516*2405 | 13000 | natural gas |
Main technical data | ||||||||
No. and arrangement of cylinders:12,60.Vee | ||||||||
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection | ||||||||
Bore:190mm | ||||||||
Stroke:215mm | ||||||||
Compression ration:14:1 | ||||||||
Direction of rotation:Counter-clockwise engine(facing to flywheel) | ||||||||
Starting method:electric motor | ||||||||
Lubricating method:Pressure and splash lubrication | ||||||||
Stable speed regulating rate:0-5%adjustable |
a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage: also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
Later stage:Overhaul and maintenance service offered.
Water Pump Assembly
Water pump assembly 129.22.00B,water pump assembly 206L.22.00 water pump assembly 206LR.22.00,jichai water pump assembly 208L.22.00,water pump assembly 6312.22.00,water pump assembly 6612AR.22.00,jichai water pump assembly 816LCT.22.00,chidong water pump assembly B3012H.22.00 jinan diesel engine water pump assembly 511.22.00A jichai water pump assembly marine engine 225.22H.00,water pump assembly 223.22.00,jinan diesel engine water pump assembly 223.22.00,12V190 engine water pump 224L.22.00A,water pump assembly 225.22.00,12V190 diesel engine water pump 226L.22.00,12V190 marine engine water pump 236L.22.00,jichai marine engine water pump 264L.22.00A water pump assembly 266L.22.00,water pump assembly 274L.22.00,jinan diesel engine 12V190 engine parts 276L.22.00,water pump assembly 3012.22.00,16V190 diesel generator parts 4012.22.00.
JICHAI 6190 oil pump,jichai instrument panel assembly,jichai water pump.
2012.32.00jichai 12v190 instrument panel assembly 2008.32.00 jinan diesel engine 206LZ.32.00 chidong 8190 instrument panel assembly 208LB1.32.00 jichai ED211G
2012H1.32D.00 G12V190ZLC1 diesel engine 206L.32.00
corrugated pipe sub assy 206L.09.10,cylinder head gasket 206L.01.31,dynamo chargerJF.1000N,fuel return pipe /leak pipe 12VB.14.30.10,Belektric fuel pre-supply pump355.54.00,cylinder liner511.01.51A,digital control panel monitor YD908-8L,seal gasket 12VB.01.146,compresion ring sets12VB.05.09B-6Jwater pump using gear206L.22.00,star buttonTLA-2(24V-45A)gasket intercooler512.08.03AnozzleZCK150S840
JI Chai SJ150 Series supercharger is mainly used in generators, marine engines, matching power up to 750kw, can be a combination of multiple combinations to meet the high power requirements. The series of superchargers in many years of market applications continue to optimize and improve, its performance has been continuously improved, optional water-cooled intermediate shell for gas engines. Accessories Jinan Diesel Engine Factory 190 series ship machine use, jichai 6190 boat turbocharger, JIchai 8190ZLC Marine engine supercharger.
JIChai 12v190 Original Supercharger accessories 15053106981 Features: SJ135TB Supercharger sj158 Reliable machined impeller for higher pressurization ratio and work efficiency of the engine.
Sj160-1 runoff Supercharger sj170c2 JIChai 8190zlc-3 Diesel engine (right turn) sj168-3 A variety of compressor solutions can be selected to meet more machine requirements. G12v190zldt-2 natural gas engine supercharger SJ161TB g12v190zldt1-2 Fuyuan SJ161TBG Supercharger, Sj162zb wide flow, high efficiency, high pressure than compressor, symmetrical double-channel vortex shell can meet the requirements of higher wiring. A8v190zl-3 high pressurized diesel Engine JIChai 3000 Series 190 Supercharger sj146-3
For Chai 12v190 ignition coil, altronic 591010 high-voltage coil original import.
Altronic Ignition coil 591010 supporting the use of JI Chai 190 gas generator. Motortech m8601-0200 and other Chai engine accessories complete Welcome inquiry. Jinan Diesel Engine Co., Ltd. 400gf-t JiChai 12v190dt2-2 biogas machine. JiChai gas generator Unit 500GF18-TK Engine 12v190zdt-2 natural gas. JiChai natural gas generator Unit 500GF-T1 Engine G12v190zldt1-2 natural gas altronic. Diesel unit 500GF-WK2 Engine g12v190zlwd2-2 gas generator set altronic ignition coil.
