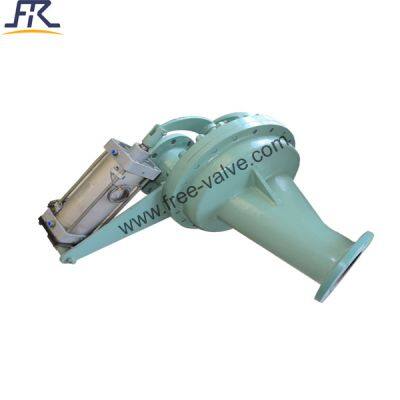

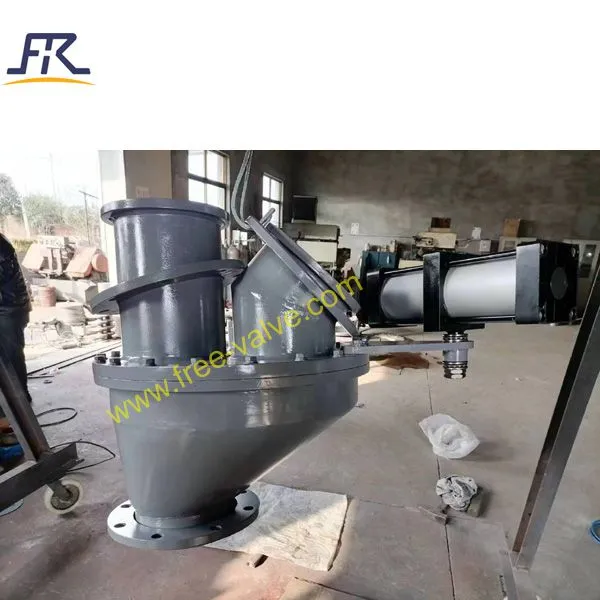

Pneumatic Ceramic Lined Rotating Disc 3 T Diverter Valve

FREE VALVE brand Pneumatic ceramic lined rotating disc 3 T diverter valve is widely used in fly ash, slag, cement raw material, limestone, pulverized coal, bentonite, talc, barite and other powder granular solid dry loose material conveying system.

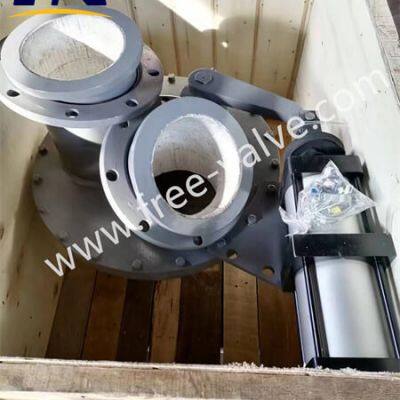

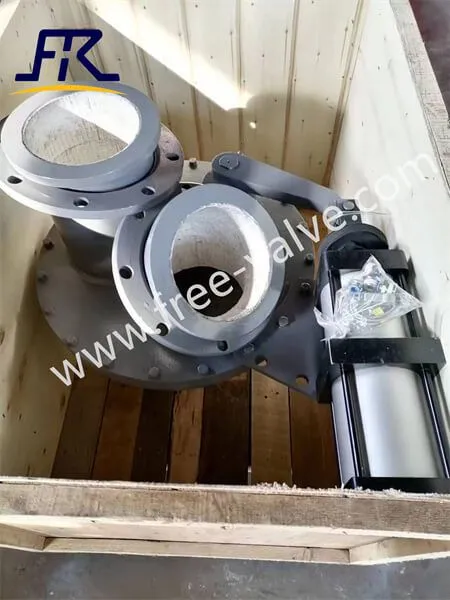

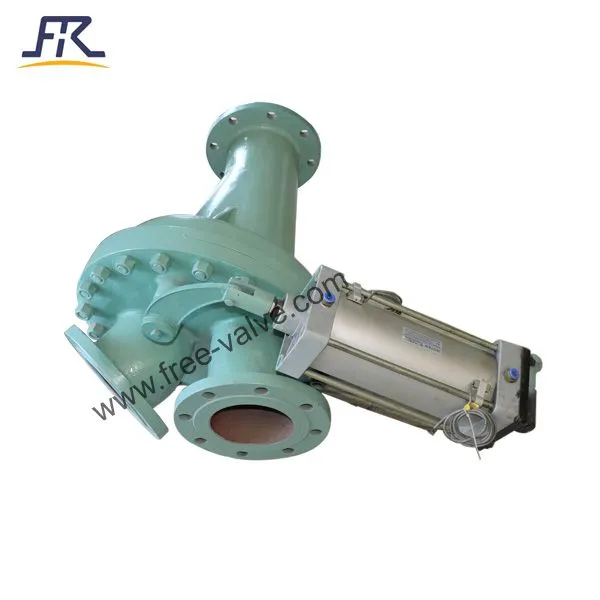

The valve body is made by cast steel parts, the sealing packing adopts wear-resistant and high-temperature fluorine rubber seals, the sealing surface between the valve disc and the valve seat adopts wear-resistant hard alloy material or wear-resistant toughened structural ceramics, the valve sealing surface is smooth, the hardness can reach 60HRC, which solves the problem that the sealing surface is easy to be eroded due to material erosion, and the service life is longer than the general material valve.

The diverter valve greatly improve the safety and stability of equipment operation,so it brings good use effect and economic benefit for end users.The valve has the characteristics of good switching effect, high speed, tight sealing performance, strong wear resistance, high temperature resistance, avoid block phenomenon ,avoid  jam or ash accumulation phenomenon, long service life and so on.

Features：

1.The valve is designed with one feed port and two discharge ports, the inlet and outlet angle can be arbitrarily changed.

2. The rotary shaft drives the valve disc to switch back and forth between the two discharge ports.

3.The piston rod and sealing packing of the pneumatic actuator are not in direct contact with the medium, which greatly prolongs the service life of the pneumatic actuator.At the same time, the design is a good solution to prevent valve shaft sealing material leakage.

4.The valve has a long service life, for your system safe operation provides a reliable guarantee in bulk materials handling system .

Working principle:

The pneumatic actuator drives the valve disc through the rotating shaft and swinging arm to move back and forth between the two discharge ports to complete the switching and conveying of materials.

The helical compression spring is loaded between the valve disc and the sealing surface, and the spring force always makes the valve disc sealing surface closely fit with the sealing ring, and allows the valve plate to move in the vertical direction, which helps to compensate the thermal expansion and cold contraction of the valve parts, and can prevent any back pressure change on the sealing effect, but also prevent the granular medium from entering between the sealing surface.

The difference of friction force on the tangential direction of the sealing ring of the valve disc enables the valve disc to rotate during the opening and closing process, which will  lead to grinding and polishing between sealing surfaces.

Specification :

Valve size: DN150-DN300 (can be customized )

Nominal pressure: 1.0 -- 1.6MPa

Pneumatic actuator working pressure: 0.4 -- 0.6MPa

Applicable temperature: ≤250℃ (≤400℃  high temperature resistance type can be customized)

Model:FRZ645TC -10C

Price:1000-5000USD/set

Origin:China

Payment terms:TT,LC

Price terms:FOB,CIF.FCA,CFR

Delivery time:30 days

Brand:FREE-VALVE

Wechat ID:Free_Valve
