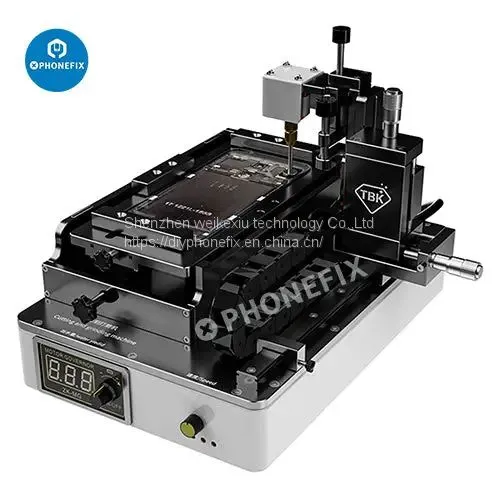

TBK918 Intelligent Cutting and Grinding Machine

Mobile phone maintenance intelligent cutting curved screen grinding chip all-in-one machine

High precision multi-directional limit free adjustment high-speed aero motor

Free switching between cutting and grinding, one machine for two purposes

Cutting curved screen and polishing IC chip flexible switching

Aviation brushless motor, high reliability, step-less variable, frequency speed regulation

Low energy consumption and low noise

Limit suspension cutting screen, flexible cutting of straight screen-curved screen multiple screens

Multiple protection/Limit cutting piece/Safe and reliable

Cutting multiple adjustments, adaptive to different heights, suspension limit cutting retine on

Water bottle rack design, place water bottle, easy to catch water, not easy to fall

Equipped with emery grinding head, precise grinding depth

The proper amount of water can be adjusted, to reduce dust flying, increase cutting heat dissipation

Stepless regulating motor speed

The platform can tilt left and right, convenient for work

Adjust fixed mobile phone Convenient for work

Adopt a linear guide rail and add a bilateral stop block

The water inlet can be connected outlet

The motor can be adjusted left and right, and precise positioning

Connection (power line, motor line, water interface)

Install the cutting motor

Put the mobile phone into the working platform (adjust the tilt and fix the mobile phone)

Adjust the position of the mobile motor (adjust the motor down and the x-axis to make the mobile motor reaches the corresponding cutting position)

Adjust the bilateral limit block(limit the working range of the mobile motor according to the length of the mobile phone)

Put the mineral water bottle on the water bottle rack(connect three water volume corresponding interfaces)

Turn the water volume switch and motor switch

Move the motor to work (if you can't see clearly, you can turn on the light switch)

Polishing:

Connection (power line, motor line)

Install the grinding motor

Put the mobile phone into the working platform (adjust and fix the mobile phone)

Measure the depth to be polished

Adjust the position of the mobile motor (adjust the motor down and the x-axis to make the mobile motor reaches the corresponding grinding position)

Adjust the bilateral stop block(limit the working range of the mobile motor according to the grinding length)

Adjust the grinding depth limit(for the depth measured in front, take the corresponding feeler gauge size limit)

Turn the motor switch

The mobile motor starts to work (if you can't see clearly, you can turn on the light switch)
