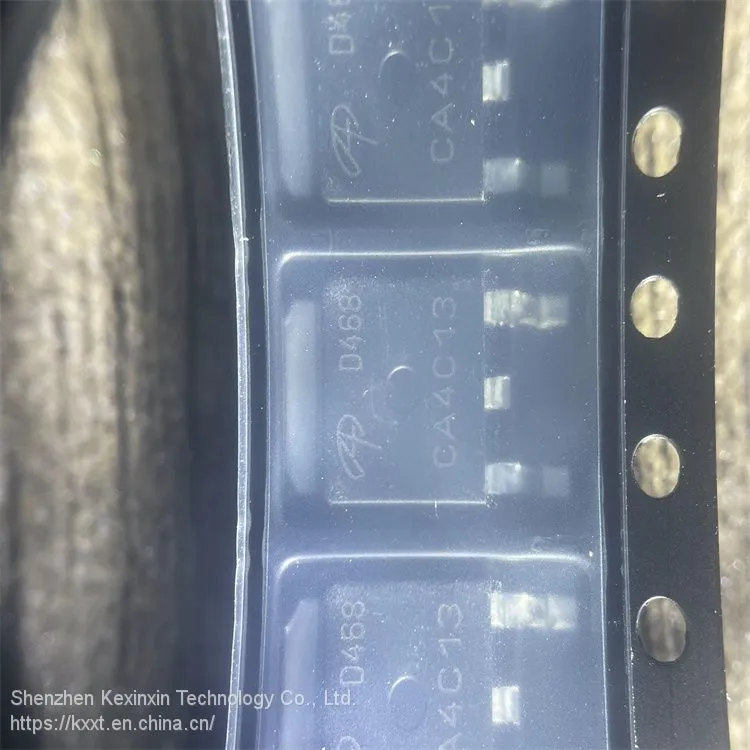

Help CenterHot Ic Chip (Intergrated Circuits) AOD468
Related Products
-
Microcontroller Integrated Circuits AQW214EH PAN 21+ DIP8US$ 2.08 - 3.38MOQ: 10 Pieces -
ATSAMR21E18A-MFT (Electronic Components)NegotiableMOQ: 10 Pieces
-
(Digital Isolators) CA-IS3762HWUS$ 1.6 - 2MOQ: 50 Pieces
-
Electronic Components HC32L130F8UA（L130F8UA A2407721）US$ 1 - 1.4MOQ: 10 Pieces
-
New Original Electronics IC Integrated Circuits HT1621B SSOP-48 22+US$ 1.6 - 2MOQ: 50 Pieces
The AOD468 & AOI468 have been fabricated using an
advanced high voltage MOSFET process that is designed
to deliver high levels of performance and robustness in
popular AC-DC applications.By providing low RDS(on), Ciss
and Crss along with guaranteed avalanche capability these
parts can be adopted quickly into new and existing offline
power supply designs.These parts are ideal for boost
converters and synchronous rectifiers for consumer,
telecom, industrial power supplies and LED backlighting.
Absolute Maximum Ratings TA=25°C unless otherwise noted
A. The value of R θJA is measured with the device in a still air environment with T A =25°C.
B. The power dissipation PD is based on TJ(MAX)=175°C in a TO252 package, using junction-to-case thermal resistance, and is more useful in setting
the upper dissipation limit for cases where additional heatsinking is used.
C. Repetitive rating, pulse width limited by junction temperature TJ(MAX)=175°C.
D. The R θJA is the sum of the thermal impedence from junction to case R θJC and case to ambient.
E. The static characteristics in Figures 1 to 6 are obtained using
F. These curves are based on the junction-to-case thermal impedence which is measured with the device mounted to a large heatsink, assuming a
maximum junction temperature of TJ(MAX)=175°C.
G.These tests are performed with the device mounted on 1 in 2 FR-4 board with 2oz. Copper, in a still air environment with TA=25°C.
H. L=60mH, IAS=3.8A, VDD=150V, RG=10Ω, Starting TJ=25°
to-252-2
price:0.37-0.7
Send Inquiry to This Supplier
