Home > Electrical & Electronics > Cable Parts > Cable Tray > Standard Gi Galvanized Steel Metal Perforated Cable Tray
Standard Gi Galvanized Steel Metal Perforated Cable Tray
US$ 1 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TS
Place of Origin:
China
Model Number:
Tsqj
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Galvanized Steel Electrical Cable Tray Ladder Type ManufacturerUS$ 1 - 10MOQ: 1 Piece -
Perforated Ladder Type Cable Tray Systems in One-Step Forming MethodUS$ 1 - 10MOQ: 1 Piece
-
Perforated Ladder Type Cable Tray Systems in One-Step Forming MethodUS$ 1 - 10MOQ: 1 Piece
-
Standard Gi Galvanized Steel Metal Perforated Cable TrayUS$ 1 - 10MOQ: 1 Piece
-
Standard Gi Galvanized Steel Metal Perforated Cable TrayUS$ 1 - 10MOQ: 1 Piece
Brand Name
TS
Place of Origin
China
Model Number
Tsqj
Material
Steel
Length
3M
Type
Wire Mesh
Width
50mm-600mm
Max. Working Load
According To size
Side Rail Height
50MM-100MM
Standard Gi Galvanized Steel Metal Perforated Cable Tray
Basic Info.
Model NO.
TSQJ002
Width
50mm - 1200mm
Side Rail Height
25mm - 300mm or According to Requirements
Length
2m - 6m or According to Requirements
Thickness
0.8mm-3mm According to Requirements
Materials
Carbon Steel, Gi, HDG,Stainless Steel
Surface Finished
Pre-Gal, Electro-Gal, HDG,Power Coated,Paint
Max.Working Load
100-400kgs, According to Size
MOQ
for Standard Size, Available for All Quantity
Supply Ability
500 Tonnes Per Month
Lead Time
10-20 Days
Business Type
Manufacturing and Trading in One
Sample
Free of Charge
Trade Terms
Fob,CIF,CFR,EXW,DDU,DDP
Guarantee
5 Years Cable Tray
Transport Package
According to Requirements
Specification
200*100mm
Trademark
TS
Origin
China
HS Code
7308900000
Production Capacity
500 Tonnes Per Month
Product Description

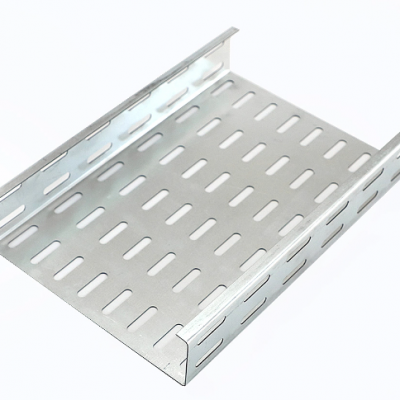

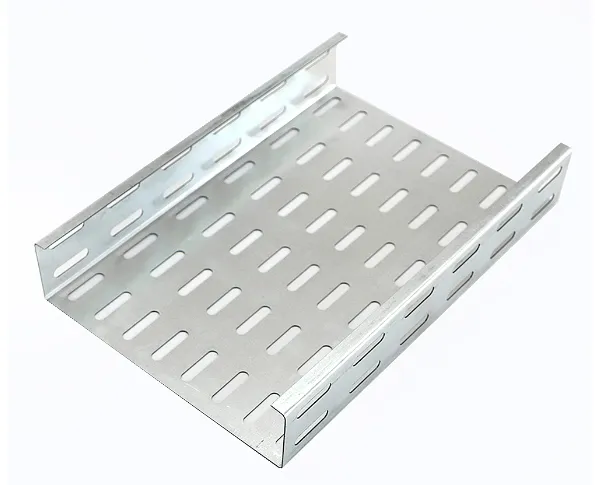

Metal Perforated Cable Tray
production line for Metal Cable Tray Here is production line of cable tray and welcome to visit our factory
Our solid and perforated bottom cable tray system is ideal solution for instrumentation cable and electrical cable runs in industrial or commercial cable management applications, helping eliminate the need for conduit or ladder.
perforated bottom pan tray allows for hold down or cable attachment, and heat dissipation.
The continuous solid bottom tray allows for constant cable support.
Wire Mesh Cable Tray, Cable Tray, Cable Trunking, Cable Ladder, Wireway, Strut Channel and accessories. Our product can be widely used in construction, energy, electricity, plant. We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.)
perforated bottom pan tray allows for hold down or cable attachment, and heat dissipation.
The continuous solid bottom tray allows for constant cable support.
Wire Mesh Cable Tray, Cable Tray, Cable Trunking, Cable Ladder, Wireway, Strut Channel and accessories. Our product can be widely used in construction, energy, electricity, plant. We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.)

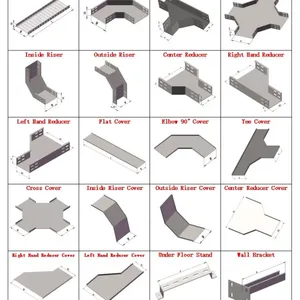

Bending components and Brackets

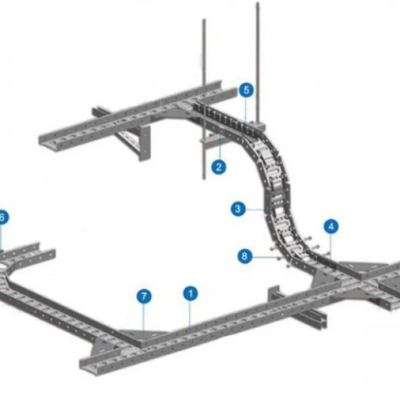

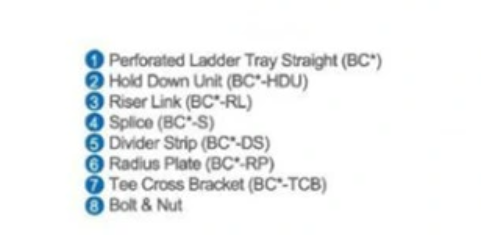

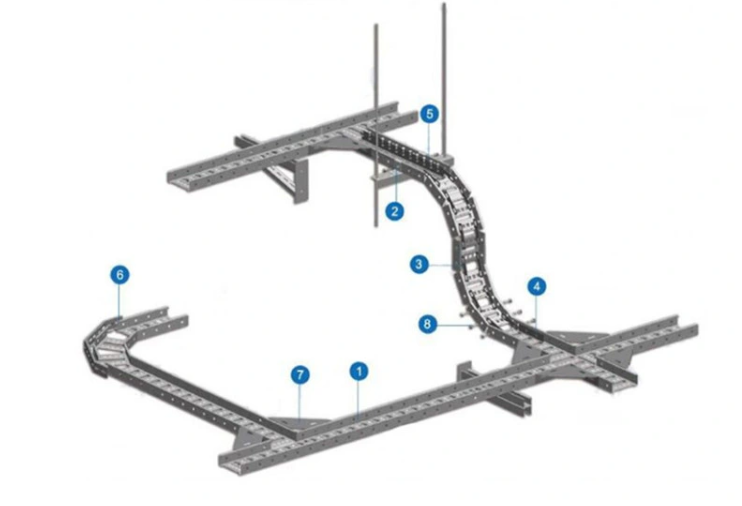

Schematic diagram of the Cable Tray space layout
production line for Metal Cable Tray Here is production line of cable tray and welcome to visit our factory
Engineering Case
Packing and Delivery for Cable tray
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements
Application Cable Tray Support System has been applied in lots of Area Below is reference
FAQ
Q: Are you a factory or a trading company?
A:We not only have our own factories but also have shares in some other enterprises.
Q:What services you can offer?
A:We are manufacturer with a range of electrical and network cable tray systems , you can enjoy the one-stop shopping service from our company.Quality and cost driving manufacturer with ISO9001,CE,NEMA,UL,SGS certificated to provide customers reliable products with most competitive price.
Q:How can you make commitment passing the test?
A:We have professional lab to do below test:
a.safe loading test
b.galvanized thickness test
c.salt spray test
d.electrical continuity
Q:What is your products advantages:
A:
a.Reduce installation costs and time
b.Easy for changing, adding and moving
c.Bright surface means good material and quality
d.Our electrical and network cabling equipment have the same quality as the international famous brand.
Q: Can you provide samples?
A: Yes ,you can get the free samples.
Q: What is your payment terms?
A: 30% T/T deposit,balance will be paid before shipment or against the copy of B/L;
Q: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 15-25days.
Q: Why do choose us?
A:
Cable Tray Official Certificates WorldwideQ: Are you a factory or a trading company?
A:We not only have our own factories but also have shares in some other enterprises.
Q:What services you can offer?
A:We are manufacturer with a range of electrical and network cable tray systems , you can enjoy the one-stop shopping service from our company.Quality and cost driving manufacturer with ISO9001,CE,NEMA,UL,SGS certificated to provide customers reliable products with most competitive price.
Q:How can you make commitment passing the test?
A:We have professional lab to do below test:
a.safe loading test
b.galvanized thickness test
c.salt spray test
d.electrical continuity
Q:What is your products advantages:
A:
a.Reduce installation costs and time
b.Easy for changing, adding and moving
c.Bright surface means good material and quality
d.Our electrical and network cabling equipment have the same quality as the international famous brand.
Q: Can you provide samples?
A: Yes ,you can get the free samples.
Q: What is your payment terms?
A: 30% T/T deposit,balance will be paid before shipment or against the copy of B/L;
Q: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 15-25days.
Q: Why do choose us?
A:
We has been certified by ISO9001 in China, UL in U.S.A and CE in E.U. with professional design and extremely well production techniques. These certifications are our first step into the International market.
Cable Tray Production Flow Strictly ManagedOur Factory has various types of CNC machines, high quality modeling machines, processing equipment, which provides the most powerful guarantee for high quality products.
Cable Tray Quality Traceability System Maintained
In order to serve high quality products, it is essential to test the manufactured products before delivery. In this session, Our factory develops the most stringent testing procedures, and trains factory inspectors besides its already high level product inspection equipment.
