DESCRIPTION

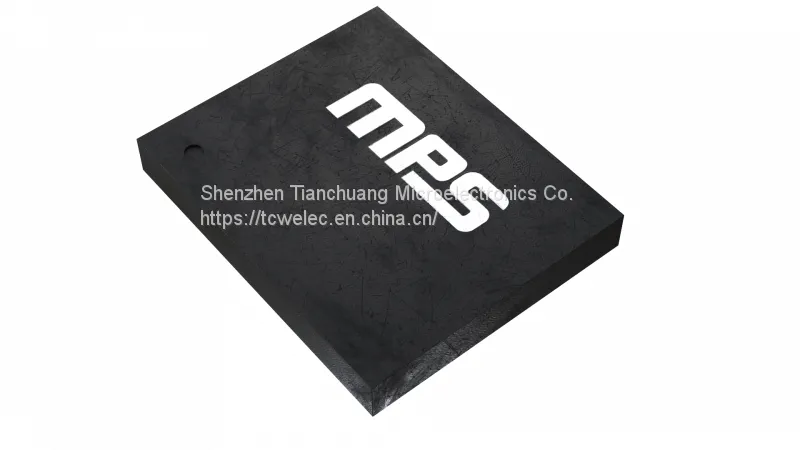

The MP6530 is a gate driver IC designed forthree-phase brushless DC motor driver applications. It is capable of driving three halfbridges consisting of 6 N-channel powerMOSFETs up to 60V.The MP6530 integrates a regulated chargepump to generate gate drive power, and uses abootstrap capacitor to generate a supplyvoltage for the high-side MOSFET driver. Aninternal trickle-charge circuit maintains sufficienthigh-side gate driver voltage even when anoutput is operated at 100% duty cycle.Internal protection features includeprogrammable short-circuit protection, over-
current protection, adjustable dead-time control,undervoltage lockout, and thermal shutdown.

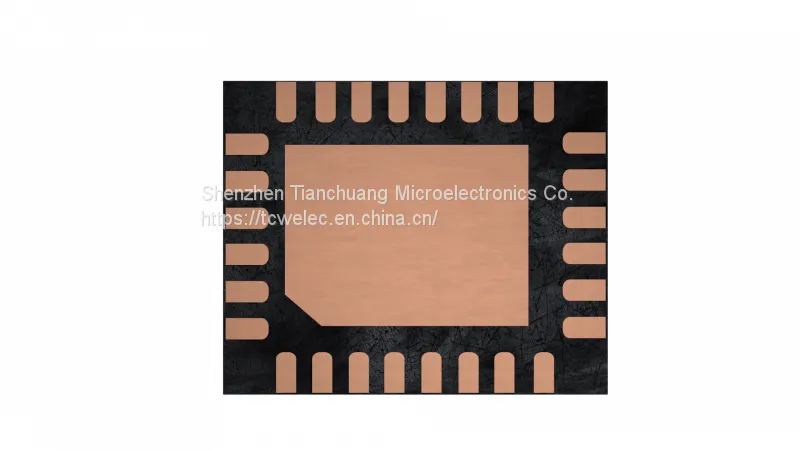

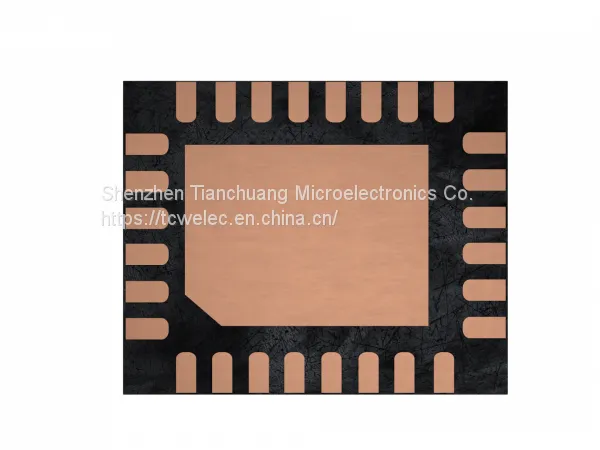

The MP6530 is available in 28-pin, 9.7mm ×6.4mm TSSOP and 4mm x 4mm QFNpackages with an exposed thermal pad.
FEATURES
Wide 5V to 60V Input Voltage Range
Charge Pump Gate Drive Supply
Bootstrap High-Side Driver with Trickle-Charge Circuit Supports 100% Duty Cycle
Operation
Low-Power Sleep Mode
Programmable Short-Circuit Protection
Over-Current Protection
Adjustable Dead-Time Control to PreventShoot-Through
Thermal Shutdown and UVLO Protection
Fault Indication Output
Thermally Enhanced Surface-Mount
Package
APPLICATIONS
Three-Phase Brushless DC Motors and
Permanent Magnet Synchronous Motors
Power Drills
Impact Drivers
E-Bike
