Honeywell MasterLogic PLC 2MLF-DC8A

MasterLogic PLC

1、Overview

MasterLogic-200, Honeywell’s next generation Programmable Logic Controllers (PLC), adds power and robustness to logic-interlock-sequence batch control capabilities of Experion network.

It is state of the art, compact yet powerful & versatile, cost-effective solution ideal for fast logic, sequential, and batch control applications

The highlights of MasterLogic-200 PLC system are:

•  Powerful & Versatile CPU (high speed / memory, IEC programming etc)

• Compact footprint (Rack room, cabinet space saver, shipping costs saver)

• Modular options (power supply, range of I/O modules to suit your configuration)

• Flexibility in module assignment – any module can be installed in any slot of any base without any restrictions.

• Open networks (Fast Ethernet, UTP/Fiber-Optic, serial RS232C /422/485)

• Open protocols (Profibus-DP, MODBUS ASCII/RTU/TCP)

• Peer-to-Peer networks (Dedicated Fast Ethernet on UTP/Fiber-optic)

• Simulation Environment to test control strategies without hardware or process connections.

• Engineer-friendly software (Connection options, easy configuration & trouble-shooting)

• Diagnostics (System/Error Logs, system monitoring, network monitoring, ping test, frame monitor)

• Experion PKS & Experion HS Integration (PLC alarm/events, clock synch, etc)

• Redundancy (CPU, Power, I/O network redundancy)

2、Applications

• Process Industries: oil and gas, steel, cement, power generation, chemicals, petrochemicals

• Automobile industries

• Food and Beverage

• Healthcare and Pharmaceuticals

• Textiles

• Material handling

• Water Treatment

• Semi-conductors

• Printers and Publishers

• Paints and Plastics

• OEM – partnerships with packaged equipment manufacturers and machine builders

4、Model Numbers

2MLB-E06A -Extension Base 6 slot

2MLB-E08A -Extension Base 8 slot

2MLB-M04A -Main Base 4 slot

2MLF-AC8A -Current Input, 8channels

2MLF-AD16A -Voltage/Current Input, 16channels

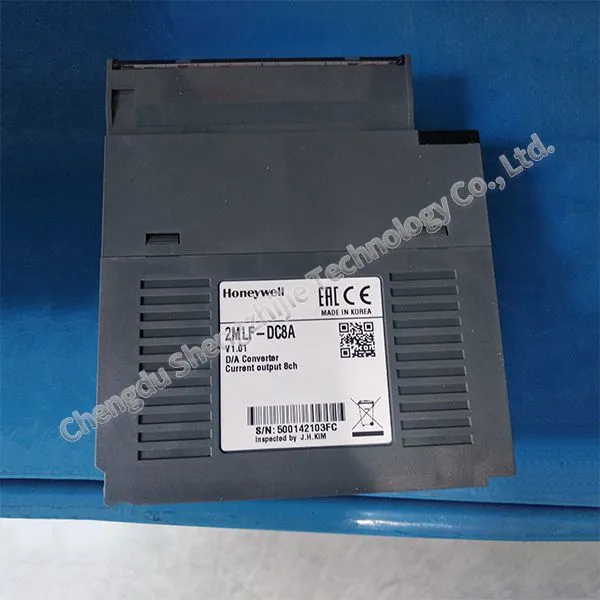

2MLF-DC8A -Current Output, 8channels

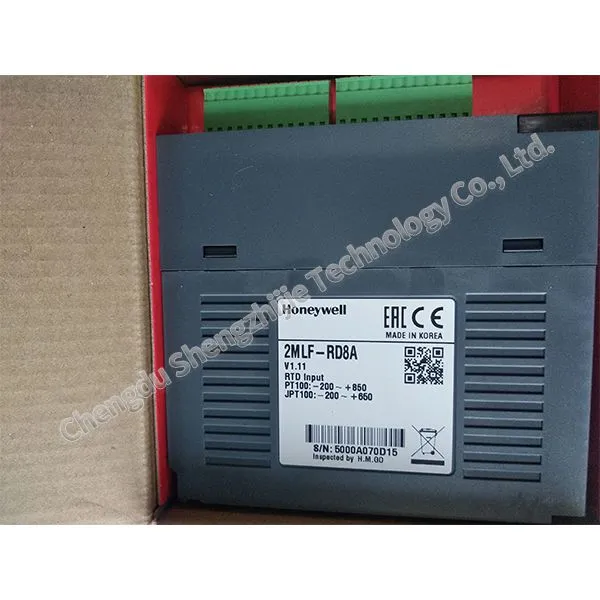

2MLF-RD8A -RTD Input, 8channels

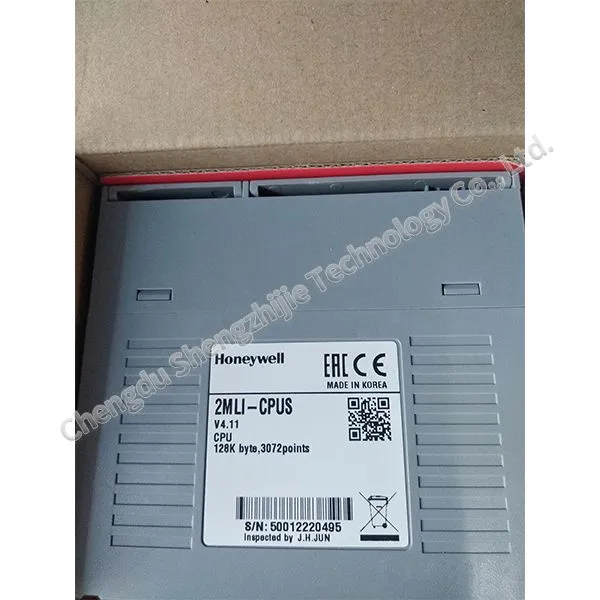

2MLI-CPUS-Max. I/O: 3,072Pts, 640KB Program Memory, IEC, Standard

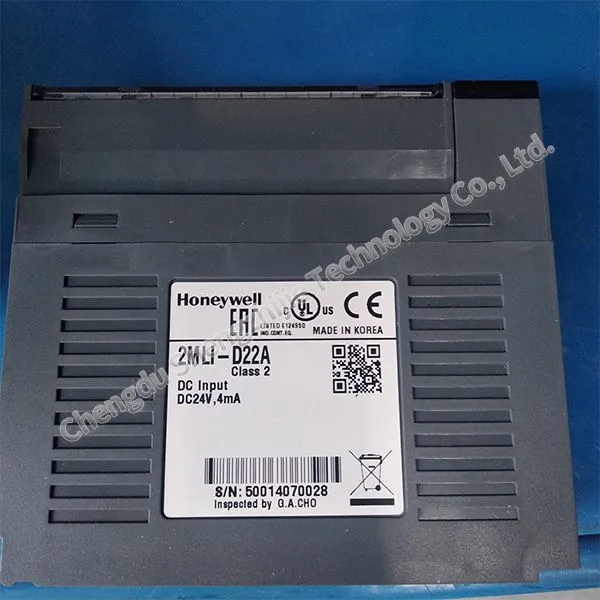

2MLI-D22A -16Pts. DC24V Input (Sink/Source Type)

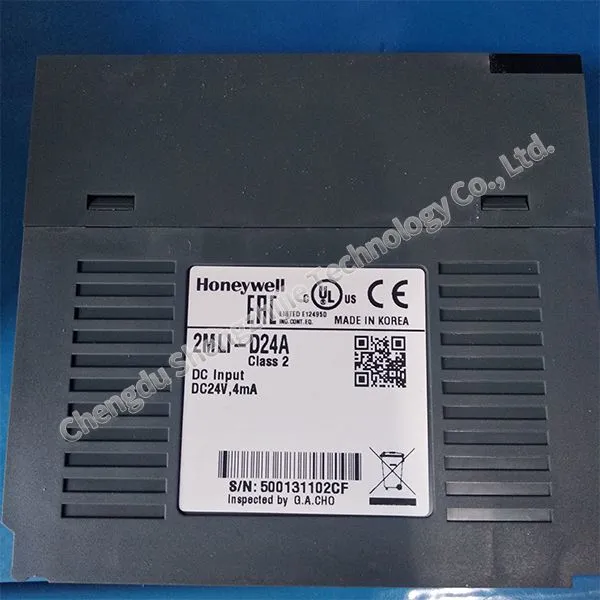

2MLI-D24A -32Pts. DC24V Input (Sink/Source Type)

2MLL-C42B -Serial Communication, RS-422 2channels

2MLL-EFMTB -Fast Ethernet, 100/100Mbps, RJ-45 (Electric)

2MLL-PMEB -Profibus, Master, 12Mbps, DP Standard

2MLP-AC23 -AC220V / DC5V, 8.5A

2MLP-DC42-CC -DC24V / DC5V

2MLQ-TR2A -16Pts. TR Output, 0.5A (Sink Type)

2MLQ-TR2B -16Pts. TR Output, 0.5A (Source Type)

2MLQ-TR4A -32Pts. TR Output, 0.1A (Sink Type)

2MLQ-TR4B -32Pts. TR Output, 0.1A (Source Type)

2MLR-AC23 -Redundant Power 220V, 8.5A

2MLR-CPUH/T -Mode Max. I/O:23,808Pts., Redundant CPU, TP

2MLR-E08P -Expansion Base 8 slot

2MLR-M06P -Main Base 6 slot

and so on......

5、About us

Chengdu Shengzhijie Technology Co., Ltd. is a high-tech enterprise mainly engaged in the business of internationally renowned advanced process control and automation products. It is committed to the sales, engineering, testing, maintenance, technical training and service of industrial control products and control systems. The products involve the main products related to automation, such as: Distributed control system (DCS)/Programmable logic controller (PLC), Instrument Safety system (SIS), data acquisition system (SCADA), process controller, recorder, pressure and temperature transmitter (sensor), dangerous gas detection and alarm, gas flow measurement, combustion safety control, valve and actuator, detection and analysis instrument, signal adjustment Management module, is the United States Honeywell control products in western China's largest level agents and inventory center, the United States Honeywell DCS, PLC and SIS control system core engineering, at the same time distribution of the United States Acromag, the United States capital company, the United States lion fine instrument company and other world famous brand products.

We look forward to establishing long-term business relationship with you!
