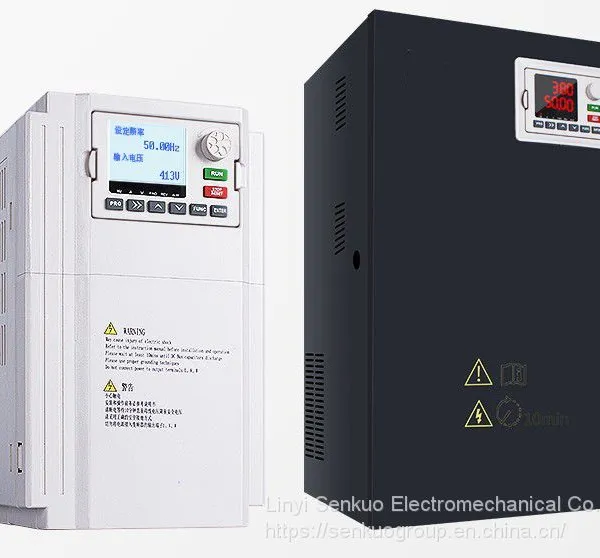

Help CenterVFD 7.5KW 11HP Three-phase380v Vector Inverter Frequency Converter
Related Products
-
VFD 11KW 15HP 3 Phase 380V Low Cost Variable Frequency Inverter AC Motor Drive 50/60HZNegotiableMOQ: 1 Set -
VFD 15KW 18.5HP 3 Phase 380V Low Cost Variable Frequency Inverter AC Motor Drive 50/60HZNegotiableMOQ: 1 Set
-
VFD 18.5KW 22HP 3 Phase 380V Low Cost Variable Frequency Inverter AC Motor Drive 50/60HZNegotiableMOQ: 1 Set
-
VFD 22KW 30HP 3 Phase 380V Low Cost Variable Frequency Inverter AC Motor Drive 50/60HZNegotiableMOQ: 1 Set
-
VFD 30KW 37HP 3 Phase 380V Low Cost Variable Frequency Inverter AC Motor Drive 50/60HZNegotiableMOQ: 1 Set
The vector frequency converter is a power control device that uses frequency conversion technology and microelectronics technology to control the AC motor by changing the frequency of the motor's operating power supply. The frequency converter is mainly composed of rectification, filtering, inverter, braking unit, drive unit, detection unit, micro processing unit etc. The frequency converter adjusts the voltage and frequency of the output power supply by switching off the internal GBT, and provides the required power supply voltage according to the actual needs of the motor, thereby achieving the purpose of energy saving and adjustment. In addition, the frequency converter also has many protection functions, such as overcurrent, overvoltage, overload protection and so on. With the continuous improvement of industrial automation procedures, frequency converters have also been widely used.
Performance characteristics：
1. New European style design, dual display + book structure
2. Exquisite appearance, compact size, excellent air duct design to ensure reliable heat dissipation
3. The whole series of modular machines, vector heavy-duty type
4. Built-in standard 485 communication
5. Built-in standard 2-way AI input 0-10V or 4-20mA
6. Built-in standard 2-way AO output 0-10V or 4-20mA
7. Built-in standard 2-way programmable relay output
8. Built-in standard 2-way open collector output
9. There are 5-7 built-in multi-function terminals, which can realize up to 16 speeds and 65 multi-function applications
10. Built-in multiple application macros (constant pressure water supply, fire inspection, CNC machine tool, spindle engraving, etc.), which can realize constant pressure water supply for one drag five, without adding a water supply controller
11. The shell cloud function can be customized, supporting parameter setting and start-stop control of mobile phones and computers
The main technical parameters：
Rated voltage: 3-phase 380V
Maximum frequency: 0.00-3200.00Hz
Carrier frequency: 0.5-16KHZ, the carrier frequency can be adjusted automatically according to the load characteristics
Input frequency resolution: digital setting: 0.01HZ, analog setting: maximum frequency * 0.025%
Control mode: open-loop vector control (SVC), closed-loop vector control (FVC), V/F control
Command source: given by the operation panel, given by the control terminal, given by the serial communication port, can be switched in various ways
Frequency source: 10 kinds of frequency sources: digital, analog voltage, analog current, pulse, serial port, panel potentiometer, etc.
Auxiliary frequency source: 10 kinds of auxiliary frequency sources, which can flexibly realize auxiliary frequency fine-tuning and frequency synthesis
Protection functions: power-on motor short circuit detection, input and output phase loss protection, overcurrent, overvoltage protection, undervoltage protection, overheating, overload protection, etc.
