Home > Products > Mini Skid steer loader > CHINA MADE SKID STEER LOADER WS60

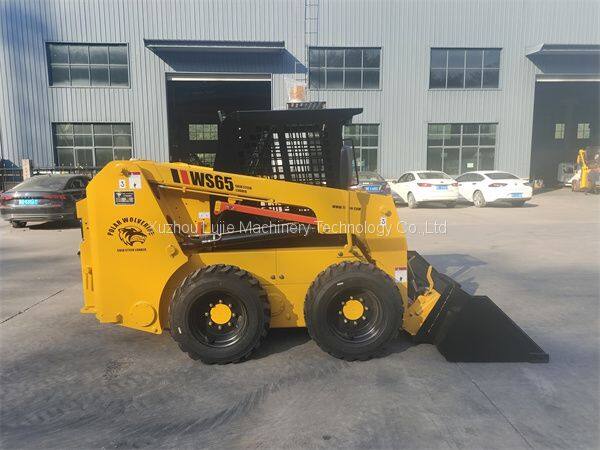

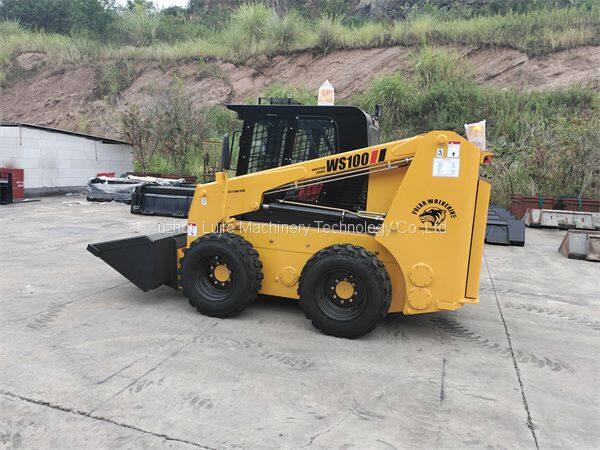

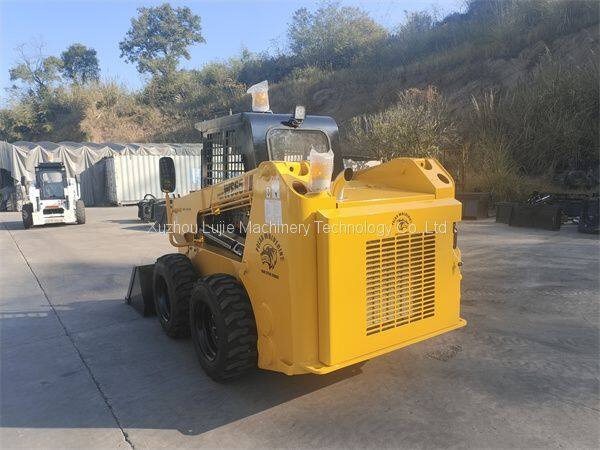

CHINA MADE SKID STEER LOADER WS60

FOB Price

USD $10000 - $100000 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port Shanghai
Payment Terms:T/T L/C
Delivery Detail:20 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	China	Model Number:	WS60	Type:	Skid Steer Loader
Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	one year
Condition:	New	Dimension(Long * Breadth * High):	270017002908	Moving Type:	Wheel Loader
Rated Load:	3420kg

Product Description

HOT SALE MINI CARGADOR COMPACT UTILITY SKID STEER LOADER WS60 WITH ATTACHMENTS

CHINA MADE SKID STEER LOADER WS60

FEATURES

Full Hydraulic Control System

Full hydraulic control system provides increased productivity, reduced operator fatigue, stable performance. It controls the hydraulic fluid to achieve breaking. The hydraulic control system prevents operator’s faulty operation, optimizes internal hydraulic components, and greatly reduces the intermediate links.

Powerful Perkins/Kubota/Deutz/Xinchai engine

The newest Perkins/Kubota/Deutz/Xinchai engine technology is used in the wheel loader. The new diesels have economic fuel consumption values.

Optimization of the machine structure

Optimized the structure of components, increased ground clearance is based on the assurance of machine’s stability of vertical and horizontal element. Integrated electromagnetic valve controls the speed, break, attachment valve sheet in muli-way valve, simplifies the hydraulic pipe routines. Rapid lower device allow the lift arm lower quickly after working. The joystick control valve has a electric magnetic self-lock system, which could prevent the operator’s faulty operation automatically.

Serviceability

Skid steers have long been the best for serviceability. Now it is even easier – with all service and maintenance points easily accessible through the rear of the machine, while the tilting cab provides easy access for repairs

Technical Specifications
Model	WS60
Engine	PERKINS/KUBOTA
Rated power(kw)	43/45
Rated speed(rpm)	2500/2600
External dimensions: length * width * high	343318002007(mm)
Operating weight(kg)	3420
Max travel speed(km/h)	12
Performance
Rated operating capacity(kg)	900
Tipping load(kg)	1800
Max.dump height(mm)	2551
Reach at max.dump(mm)	603
Turn radius,front tyre(mm)	1235
Wheel base(mm)	1020
Bucket capacity(m3)	0.41
Fuel tank capacity(m3)	88
Hydraulic tank capacity(m3)	70

FAQ

Are you a factory or trading company?

We are a manufacturer. We have seven years of experience in manufacturing attachments for skid steer,loader,excavator and tractor,ect. It is the top producer and exporter in the industry.

Where is your factory located?

Our factory is in Wutun Industry Garden,Gulou,Xuzhou City,Jiangsu Province, China

It's near Qingdao/Shanghai/Lian Yungang port.

How many days for production delivery?

Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.

What are your terms of payment?

Payment≤20000USD,100% in advance. Payment＞20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.

How about quality control in your factory?

Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification. Have you opened a new location, redesigned your shop, or added a new product or service? Don't keep it to yourself, let folks know.

How about guarantee?

We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.

COMPANY INTRODUCTION

Xuzhou Lujie Machinery Technology is a professional Chinese skid steer attachments,wheel loader attachments,excavator attachments & tractor implements manufacture.It is located in Xuzhou,Jiangsu,China.

Our main products:

Skid steer angle broom,bucket sweeper,snow blower,snow plow,bucket grapple,grass grapple,pallet fork,tree transplanter,cold paner,hydraulic breaker,auger,trencher & Wheel loader forks,wheel loader quick coupler,wheel loader grapple,sweeper broom,snow cleaning machine for wheel loader,ect.

Lujieattachments are also a reseller of XCMG skid steer loader and other brand skid loader with competitive price and original good quality.

For more details about our products,please visit our web or contact us.

Welcome you visit our factory and hope we have a chance to cooperate with you.
