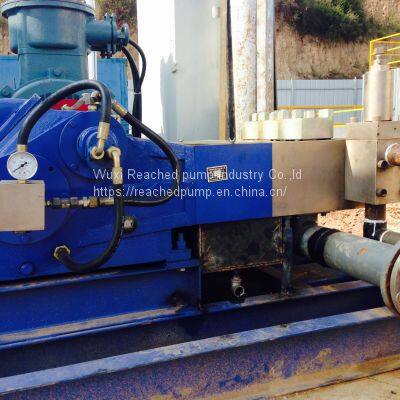

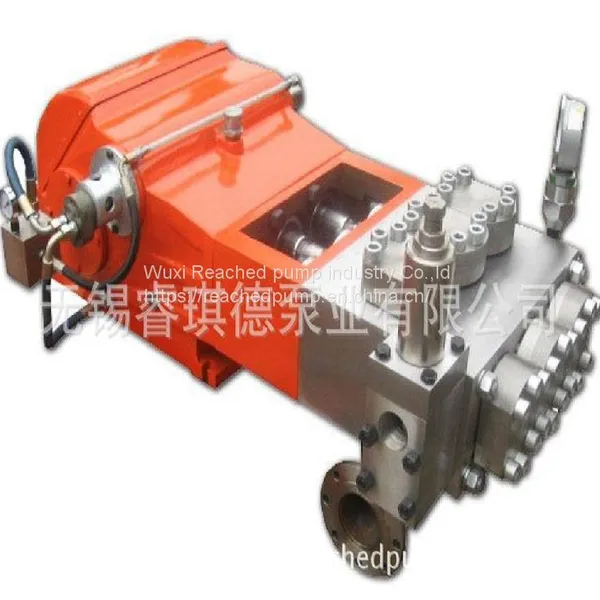

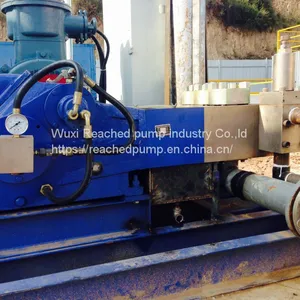

water injection pump,oil field water injection pump WP3-S

  KAMAT technology high pressure triplex  piston pump,high pressure pump, triplex plunger pump, high pressure cleaning pump, used for descaling, water injection at oil field

KAMAT technology, K20000 type, used for descaling at steel plant, water jinjection ar oil field.
Speed of motor:1480 r/min,Stroke:120 mm,Gear ratio:4.04,Speed of pump:366 r/min

Power(kw)   110   132     160      200
Flow rate        Pressure(MPa)

195 L/Min  28  33   40  45    45 mm

240 L/Min  22   27   33  36   50 mm

295 L/Min  19   22   27   30   55 mm

350 L/Min   16  19   23    25   60 mm

415 L/Min    13  16   19   21    65 mm

480 L/Min   10   13   17  19   70 mm
