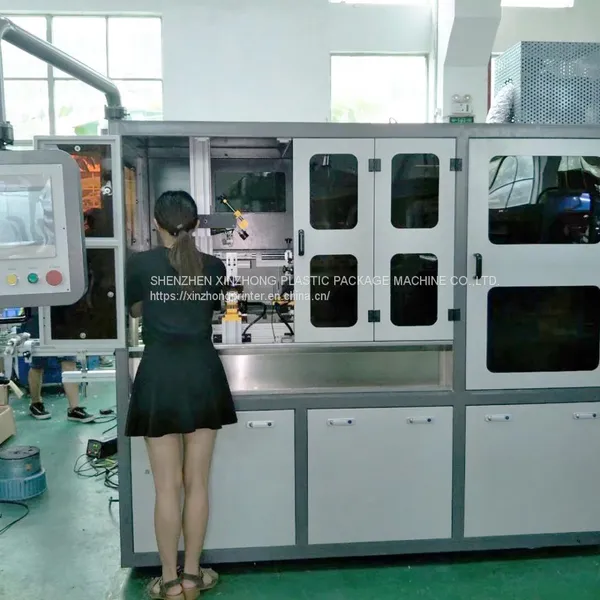

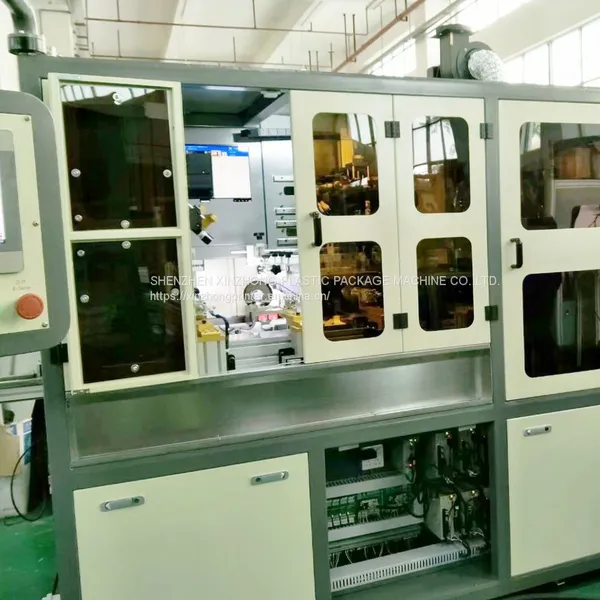

Automatic CNC102 Visual Glass Jar Tubes Perfume Bottle Printing Package Machine LED UV multiple bottle silk screen printer
Application:
The machine is specially designed for high demanding elegant products. Such as glasses/jars without slug for register but need to printing in specific area, cosmetic tubes that are required print away from parting line.
Tech data
Printing speed |
Max. 35pcs/min, normal: 20-27pcs/min |
Power |
380V, 3P 50/60HZ |
Air pressure |
6-8Bar |
Round Container |
|
Printing diameter |
20-100mm |
Printing length |
30-180mm |
Square/Irregular container |
|
Printing Width |
20-100mm |
Printing Length |
30-180mm |
Details
1. Auto loading belt,Bottle standing up/lying down on belt upon request.
2. 2. Mechanical registration or CCD vision register is adopt.
3. Servo motor driven system such as: pre-registration, product rotation, product left/right moving, up/down moving
4. 4. Can print full round surface or multiple sides for oval shapes at one time
5. Quick setup and simple changeover saving times for clients.
6. All parameters automatic setting simply in touch screen.
7. 7. Optional manipulators for standing up printed objects.
8. 9. Precise printing and overprinting accuracy.
