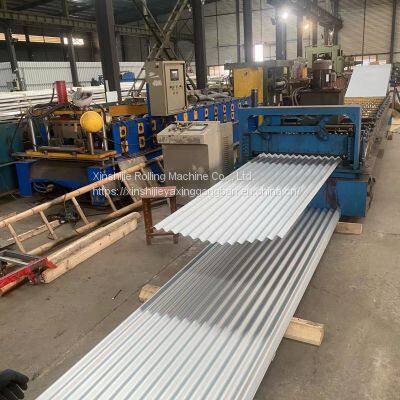

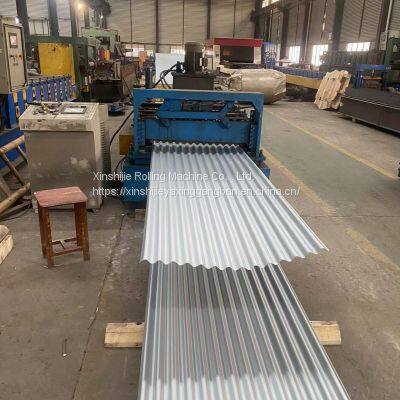

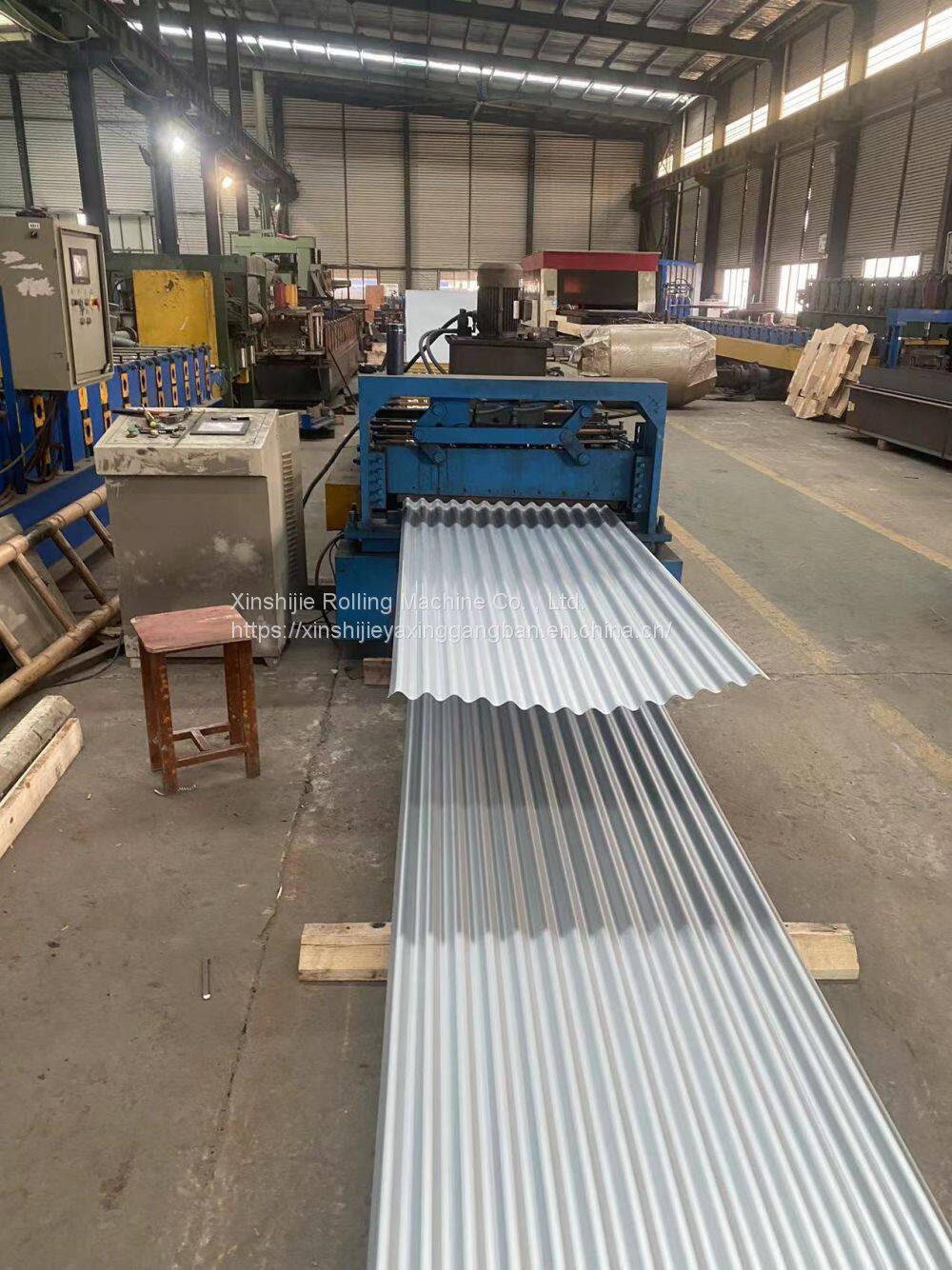

YX18-75-825-0.6mm thick pressed steel plate, also known as YX18-75-825-0.6mm thick color steel corrugated plate, YX18-75-825-0.6mm thick pressed color steel plate, YX18-75-825-0.6mm thick color steel plate, YX18-75-825-0.6mm thick wall panel The color-coated galvanized steel sheet with a feeding width of 1000mm and a thickness of 0.6mm is formed by cold bending by rod pressing to obtain a profiled plate with an effective width of 825mm , its wave height is 18mm, the wave pitch is 75mm. YX18-75-825-0.6mm thick pressed steel plate is the use of color coated steel plate, by wheel pressure cold bending into a variety of wave type profiled plate, it is suitable for industrial and civil buildings, warehouses, special buildings, long-span steel structure house roof, wall and interior and exterior wall decoration, etc., with light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rainproof, long life, maintenance-free and other characteristics, has been widely promoted and applied.
The exterior finish of the wall is divided into indoor wall and outdoor wall. Wall decoration is an integral part of architectural design. Modern indoor walls use color and texture changes to beautify the indoor environment, adjust illuminance, and select a variety of materials with easy cleaning and good physical properties to meet the use of various functions.
First, YX18-75-825 integrated wall panel features
Light weight, equivalent to 1/30 of the brick wall, while the effect of thermal insulation is very good. Secondly, the strength is high, and the bending and compression resistance are especially used in suspended ceilings, partitions and other places. Again, it is convenient, time-saving, and material-saving during the installation process, and it can also be cut at will, and the appearance color is bright and bright is a product in building materials. As a convenient and practical color steel plate, under the premise of meeting the requirements of building thermal insulation, sound insulation, fire prevention, etc., it has achieved the goal of high quality, efficiency, reliability and safety, and has been recognized by the majority of users and is an emerging material that is more respected.
2. YX18-75-825 integrated wall panel wall material
1. The profiled steel plate is generally cold-rolled from 0.75~1.6mm thick Q235 thin steel plate. The net thickness of the profiled steel plate used for the composite plate (excluding the thickness of the galvanized layer or the finishing layer) is not less than 0.75mm.
2. For the profiled steel plate of the composite board and the non-composite board, the wall panel manufacturer should use galvanized steel plate. The profiled steel plate used as a composite plate, its galvanizing thickness should still meet the requirements of no rust during use.
3. The steel plate and steel beam are bolted steel connected by bolts, which is generally the same as the material of the steel beam connected to them.
