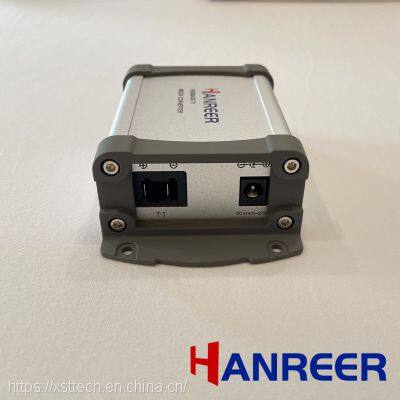

HEER-1001 1000BASE-T1 Media Converter

HEER-1001 series products are the most advanced Ethernet media converters for automotive Ethernet applications. Using the HEER-1001 series Ethernet converter, the 100/1000BASE-T1 automotive Ethernet can be converted into a 100BASE-TX/1000BASE-T traditional Ethernet, and connected to the PC for debugging or testing.

HEER-1001 series products use metal shells to resist interference, are small and light, and can be directly placed in a laptop bag for easy portability.

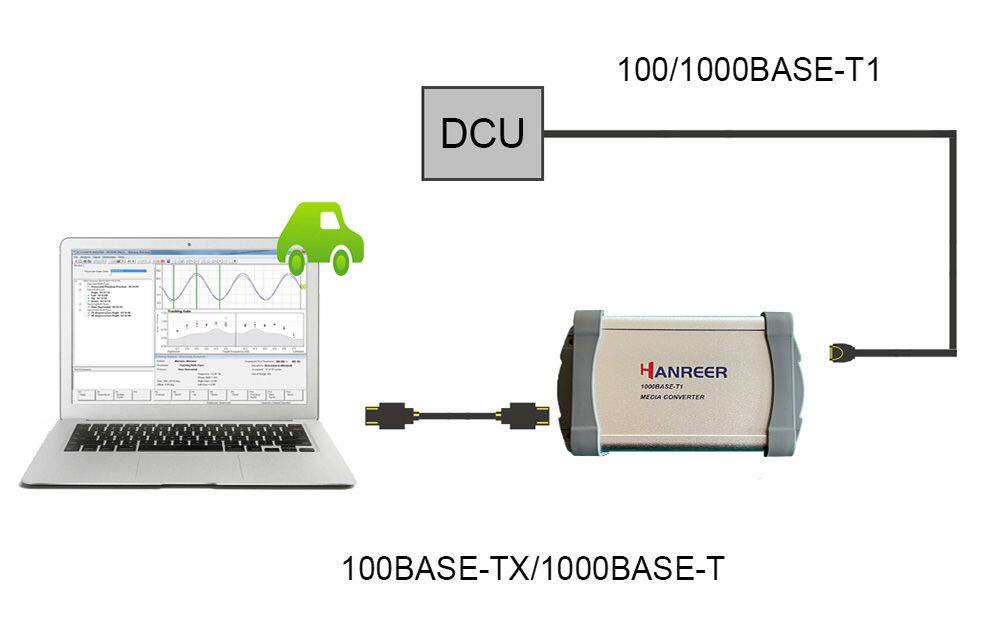

HEER-1001 series products can be used as a Media Converter. Easily realize the interaction between PC and 100/1000BASE-T1 DCU. Nodes can be simulated or direct diagnostics can be performed.

        Product Information:

a. Adopt Marvell 100/1000BASE automotive Ethernet dedicated chip, compatible with Broadcom, Marvell, TI,  and other brands of automotive Ethernet PHY for communication;

• b. Power supply design: DC/Micro USB dual power supply design, which can be used for automotive 12V and 24V power systems;

• c. Support the Debug interface to interact with the device and read the PHY register value;

• d. 100BASE-T1 and 1000BASE-T1 switching supports powered state modification without power failure or reset;

• e. Master and Slave can be switched without power failure or reset;

• f. Automatic master/slave detection function, which can automatically adjust to the corresponding mode according to the target device.

• g. Supporting Legacy mode of T1, used for intercommunication with devices of earlier versions of Marvell;

• h. Various interface types are available (Tyco MATENET, Rosenberger H-MTD).

• i. Confirmation of connection status and data transmission status by means of LED indicators;

• j. The device supports automatic polarity correction of the T1.

• l. Supports the Precision Clock Synchronization Protocol standard (PTP) for networked measurement and control systems;

• m. Supports Frame Generator mode on the T1 to send test frames to the DCU through T1.

•
