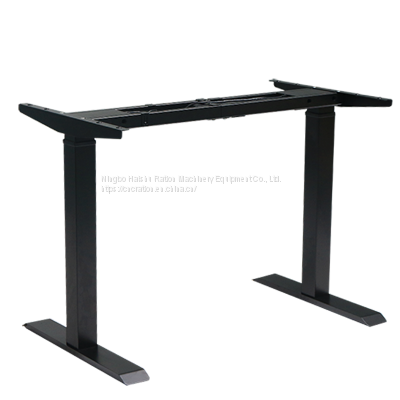

Electric Standing Desk Height Adjustable Desk Office Furniture

FY-822 is a dual motor standing desk leg with 2 Columns. Compared with a single motor, the power of the dual motor is higher and the load capacity is better. The lifting is stable and more durable. The noise can be lower than 45db, which is a very useful office furniture.

Product Parameter

Model: FY-822
Motors: Dual Motor

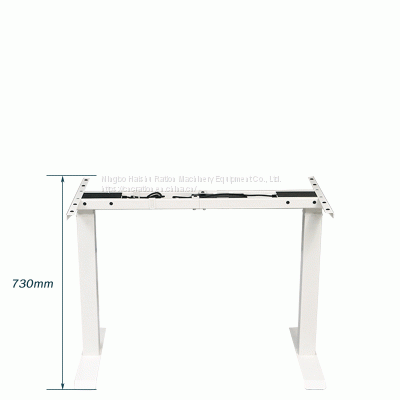

Height Range: 730mm-1230mm
Speed: 25mm/s
Extention Range: 1000mm-1800mm
Noise: <48db
Load Capacity: 120KG
Column Size: 70*70mm
Rebound: Yes
Child Lock: Yes
Number of columns: 2 column
Memory Function: 4 memory
Net Weight: 24KG
Material: Carbon Steel
Input: 100V-220V
Tabletop Size: (1200-2000mm)*(600-800mm)

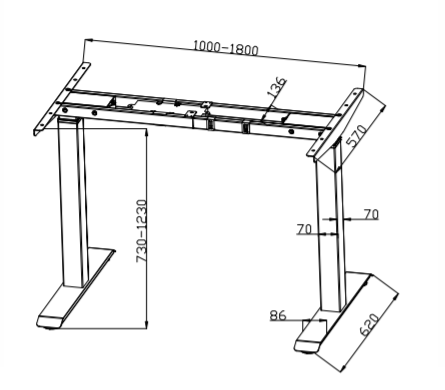

Size

Installation

Step 1 Install the Feet

Step 2 Install the Supporting Beam

Step 3 Install the Side Brackets

Step 4 Install the Fixing Clip and Bracket

Step 5 Connect the Power Cables

Step 6 Adjust the length

Advantages

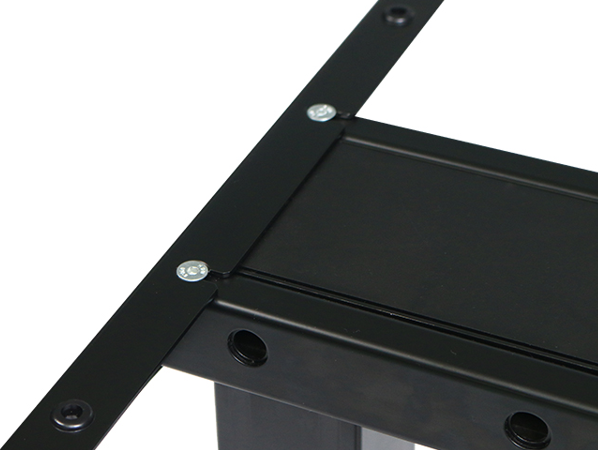

Screws are pre-installed and snap-fit connections are used. Only 20 screws need to be tightened for installation.

No welding marks, sprayed with plastic powder, not easy to scratch

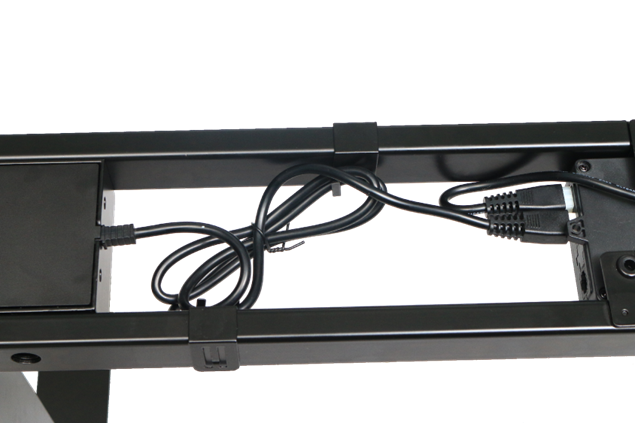

Socket design, flexible cable routing
