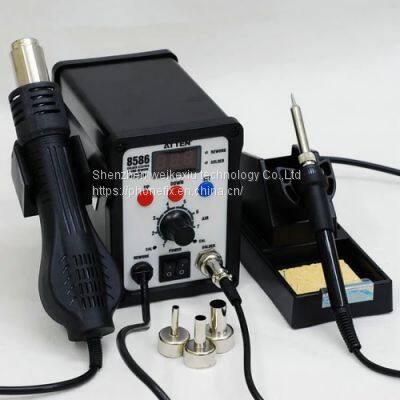

ATTEN AT8586 2 IN 1 750W Advanced Hot Air Gun Soldering Rework Station

ATTEN AT8586 2 in 1 hot air gun soldering station with digital LED temperature display for mobile phone motherboard repair, professional SMD soldering iron station for mobile phone BGA PCB welding repair tool, ATTEN AT8586 2 in 1 hot air SMD soldering rework station, China brand soldering rework station for cell phone repairing tool, operation more convenient and accurate.

ATTEN AT8586 SMD Soldering Station Hot Air Gun Rework Station for Mobile Phone Repair

Description :

1. Hot air station and soldering station set(the two of them can work separately without mutural interference).

2. Digital LED temperature display, so that the operation more convenient and accurate.

3. Self-examine and error check, with screen remindings to guide people to repair.

4. Adopts Closed-loop control sensors for temperature accuracy and stability.

5. Ideal for safe demolition solder QFP, PLCC, SOP, BGA and other chips and components which are temperature-sensitive.

6. Intelligent cooling system, after the shutdown delay completion of the work of air, air temperature lower than 100 automatically cut off power supply.

7. Use of imported air pump for low vibration, noise-free design and maintain a quiet working environment.

8. Static elimination design, prevent PCB board damage due to static or electric leakage.

ATTEN Rework Station Information :

• Input Voltage: AC220V+_10% 50Hz

• Power Consumption: 750W (max)

• Display: LED Display

• Work Temperature: 0℃-40℃

• Humidity: 80%

• Storage Temperature: -20℃-80℃

Product Specification :

• Power consumption: 700W

• Temperature Range: 100°C~500°C

• Temperature Stability: ±5°C

• Air Flow: 120L/min (max)

• Noise: <52dBA

• Air Pump Type: Fan type

Soldering Station :

• Working Voltage: AC 26V 50Hz

• Output Power: 50W

• Temperature Range: 200°C-480°C

• Temperature Stability: ±2°C (static air and have no load)

• Ground Impedance: <2Ω

• Ground Voltage: <3mV

Product Features :

1. Multifunctional Integrated Desoldering Maintenance System Combined by Rework Station and Soldering Station.

2. The core of the whole machine controlled by the single and microwave chip to make sure of temperature accuracy and stability of rework station and soldering station; not simply combined by the two equipment.

3. Clear digital display of the current working temperature and conditions.

4. Temperatures of hot air station and soldering station continuously adjusted by digital buttons to meet the needs in different workplaces.

5. The two stations can work separately.

6. Intuitive fault indication function.

7. Two-in-one combination of the soldering station and hot wind desoldering station, compact, durable and beautiful in the main body, occupying less space of the working platform.

8. Convenient and visualized display of working temperature and status on LED screen with the key-press switch.

9. The heating element of welding station features low voltage power supply, which can effectively protects the sensing elements.

10. Automatic airb lasting and cooling functions after shutdown effectively protect the handgrip and heating core of the hot wind station.

11. Automatic dormancy function helps realize energy conservation.

12. Fault self-checking and fault display.

Package list :

• Rework station ATTEN AT8586

• Soldering iron

• Iron holder

• Hot air gun nozzles

• Power cord

• User manual in English
